Frequently Asked Questions

FAQ-010. How to open cash drawer ?

  A. Line Printer , Laser Printer and Inkjet printer without cash drawer port , how to open cash drawer ?

Some stores, such as furniture stores, use Line Printer , Laser Printer and Inkjet printer to place orders and collect payments. However, these printers do not have the open cash drawer function, s there a way to open the cash drawer ?

What choice you have ?

1).  AT10-Push button series Manual push button (no development need)

2). AT10U3  USB Hot Key Model  (no development , bundle with windows utility)

3). AT10U3 USB series  USB Model  (need program development)

3). AT09AW Browser-Based model , open drawer by web page (no development , bundle with windows utility)

  B. Can I use HTML to open cash drawer and detect the cash drawer open or closed status ?

AT09W  or AT10U3 USB Browser-Based cash drawer trigger. Install our utility and add simple coding on your web page to use it. Currently, this utility can only be used on Windows. (Both models can detect the open and closed status of the cash drawer)

  C. How to Auto Open Cash Drawer use windows command ?

Windows Key + R

Type “cmd” and click “OK”.

Serial port : Type con>com(port number) and click “OK”

Type “any code ” and click “OK”

The cash drawer opens.

FAQ-020. My Android device do not support open cash drawer , how can i do ?

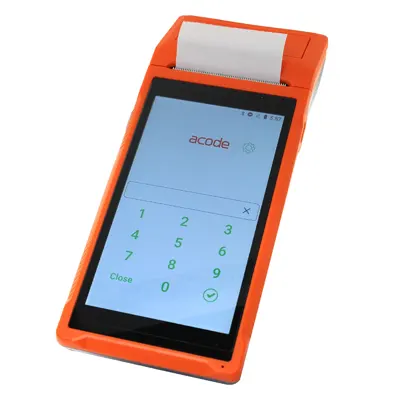

  A. My Android handheld Terminal device app does not support the cash drawer opening feature, what should I do?

You can try the AcodeTrigger App for Android  Bluetooth UnLock Smart Cash Drawer Trigger series, which is built for this purpose.

UnLock Smart Cash Drawer Trigger

If you have any questions, please contact us.

  B. My Android Tablet App does not support the cash drawer opening feature, what should I do?

You can try the AcodeTrigger for Android  Bluetooth or USB  UnLock Smart Cash Drawer Trigger series, which is built for this purpose.

UnLock Smart Cash Drawer Trigger

If you have any questions, please contact us.

  C. My Android tablet does not have Pos system, can I use my Android device to open the cash drawer ?

AcodeTrigger series is built for this purpose. If you have any questions, please contact us.

UnLock Smart Cash Drawer Trigger

FAQ-030. What is the cash drawer opening code for Epson and Star printers?

  A. What is the cash drawer opening code for Epson POS printers?

ESC p 0 1B,70,00 Epson cash drawer 1 open command
ESC p 1 1B,70,01 Epson cash drawer 2 open command

  B. What is the cash drawer opening code for Star POS printers?

ASCII : ESC p m t1 t2
Hex.  : 1B 70 m t1 t2
Decimal : 27 112 m t1 t2

FAQ-040. How to add new device with POS Printer control one cash drawer ?

  A. My cash drawer is controlled by receipt printer, drawer opens after printing a receipt, possible to open drawer without receipt printing or making a sale ?

you can use AT10ME-PB Buddy Series Push Button Cash Drawer Trigger : 2-in-1, printer (auto) + push button (manual) to open cash drawer.

Two ways to open cash drawer :
1) auto open : trigger open with POS receipt printer / printing a receipt OR
2) manual open : trigger open manually by push button for a NO Sale, without sales transaction such as making cash refund to customers

FAQ-050. How to use ACODE USB cash drawer trigger to detect cash drawer open or closed status ?

  A. How to use ACODE USB cash drawer trigger to detect cash drawer open/closed status?

ACODE 10U3 series 10U3312A USB cash drawer trigger plus can detect open and close status.

The trigger plus module will automatically return the opening code, making it easy for programmers to solve OPEN/CLOSE issues. You can check the open/close status at any time. Important,  the cash drawer must match open/close specifications. If you have any questions, please contact us.

  B. I need to install a utility or SDK to detect cash drawer open/close ?

No need.

ACODE USB and Bluetooth cash drawer trigger PLUS series detect cash drawer open/close status without any utility and SDK ,  (require IT knowledge and system development.)

FAQ-060.  How to use ACODE Bluetooth cash drawer trigger to detect cash drawer open or closed status ?

  A. How to use ACODE Bluetooth cash drawer trigger to detect cash drawer open/close status ?

ACODE 10B3 series 10B3121B Bluetooth cash drawer trigger plus can detect open and close status. The trigger plus module will automatically return the opening code, making it easy for programmers to solve OPEN/CLOSE issues. You can check the open/close status at any time. Important,  the cash drawer must match open/close specifications.  If you have any questions, please contact us.

  B. I need to install a utility or SDK to detect cash drawer open/close status ?

No need.

ACODE USB and Bluetooth cash drawer trigger plus series detect cash drawer open/close status without any utility and SDK ,  (require IT knowledge and system development.)

  C. How to identify the cash drawer sensor is open or closed ?

How to identify cash drawer sensor ? (Important)

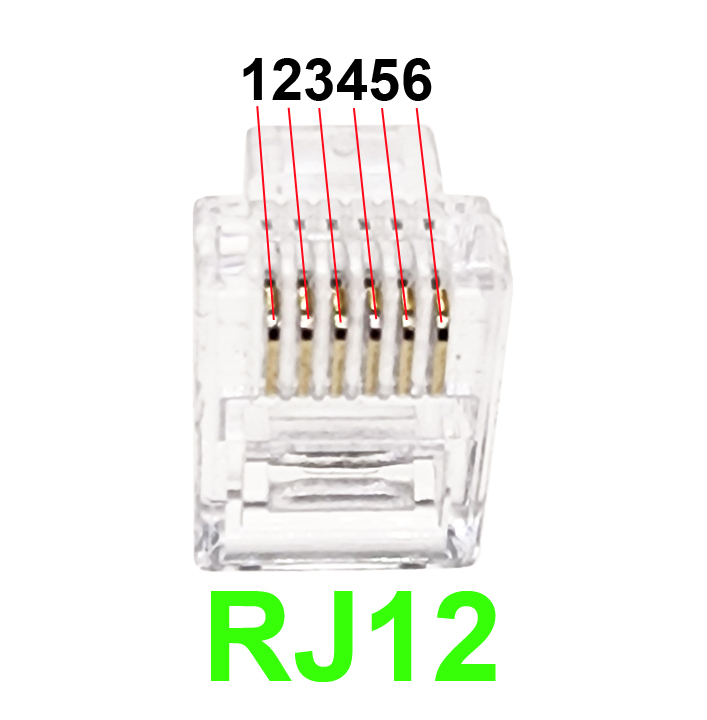

Two types of cash drawer sensors :  Normal Close or Normal Open (typically RJ12 pin 3 & 6).

1. Cash Drawer  Sensor “Normal Open” – When the cash drawer is Close (RJ12 Pin 3 or Pin 6 disconnect).

2. Cash Drawer Sensor “Normal Close”  – When the cash drawer is Close (RJ12 Pin 3 or Pin 6 connected).

It is best to ask your cash drawer supplier if the cash drawer is closed, RJ12 pin 3 and 6 connected  or disconnect ?

FAQ-061.  What are the differences between ACODE BLE and  SPP Bluetooth Trigger devices?

  A. Let’s simply distinguish between SPP and BLE:

What are the differences between BLE and SPP Bluetooth Trigger devices :

BLE vs SPP

BLE Bluetooth Trigger devices : SPP Bluetooth Trigger devices :
1. Long battery life 1. Short battery life
2. Simple and Easy to develop 2. Develop Technical requirements are relatively high
3. Security Setup :

  • a. (No need to pair). it will appear directly in the device list and it can be used after connecting.
  • b. Enable the password function, you need to perform password authentication again every time you connect.
 3. Security  :

It must be (paired) in advance. Only after successful pairing can it appear in the device list.
4. The security is weak and susceptible to interference from unauthorized devices.
It is necessary to add the trigger code to the security for effective use.		 4. The security is strong than BLE. Adding the trigger code can achieve double-layer security.
5. The advantage of BLE is that it can be used with multiple machines connected without pairing. . 5. SPP is restricted to only a single system connection and the last successfully paired Device.
6. Usually used in POS machine ,  POS Data Terminal,  Android Device ….
* What is Trigger Code ?

When you connect the Bluetooth trigger (plus model). Programmers simply use a passwords to open the cash drawer.

FAQ-070. What types Cash drawer meet ACODE Cash Drawer Trigger ?

  A. What types of cash drawers can match ACODE USB or Bluetooth cash drawer trigger ?
  1. Compatible POS Receipt Printer Drawer port.
  2. Cash drawer RJ11 4 Pin Plug or RJ12 6 Pin Plug.
  3.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  4.  Pin 2 & 4 or Pin 4 & 5 is solenoid.

*** Epson and Star DK port compatible cash drawer.  If you have any questions, please contact us.

  B. What types of cash drawers can match ACODE USB or Bluetooth cash drawer trigger with open and close status ?
  1. Compatible POS Receipt Printer Drawer port.
  2. Cash drawer RJ12 6 Pin Plug.
  3.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  4.  Pin 2 & 4 or Pin 4 & 5 is solenoid.
  5. Pin 3 & 6 Sensor Pin (* Cash Drawer open/close sensor model , please check FAQ 60C.)

*** Epson and Star DK port compatible cash drawer.  If you have any questions, please contact us.

FAQ-080. What types of cash drawers detect open and closed status meet ACODE cash drawer trigger specifications ?

  A. What types of cash drawers can detect open/closed status and comply with the ACODE USB Cash Drawer Trigger specification?

USB Series Cash drawer Specifications :

  1. Cash drawer RJ12 6 Pin Plug.
  2.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  3.  Pin 2 & 4 or Pin 4 & 5 is solenoid.
  4.  Pin 3 & 6 cash drawer sensor.
  5.  * Plus series : Cash drawer sensor type : specify normal open.
  6.  * Pro Series : Cash Drawer support sensor normal open or normal close.

 If you have any questions, please contact us.

Bluetooth Series Specifications :

  1.  Cash drawer RJ12 6 Pin Plug.
  2.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  3.  Pin 2 & 4 or Pin 4 & 5 is solenoid.
  4.  Pin 3 & 6 cash drawer sensor.
  5.  Cash drawer sensor type : normal open or normal close. (Need to specify model).

 If you have any questions, please contact us.

  B. I need to install a utility or SDK to detect cash drawer open/close ?

No need.

ACODE USB and Bluetooth cash drawer trigger plus series detect cash drawer open/close status without any utility and SDK ,  (require IT knowledge and system development.)

  C. What is a Cash Drawer Sensor normal open or normal closed ?

Normal open : Cash drawer close the sensor Pin 3 and Pin 6 is open.

Normal close : Cash drawer close the sensor Pin 3 and Pin 6 is close.
