AT Series Cash Drawer Trigger

RJ12/RJ11 is commonly used in connecting a cash drawer to POS terminal. POS machine manufacturers usually have their own command codes to control the opening of cash drawer. When there are changes in software programming or hardware specifications, almost inevitably led to incompatibility.

In order to solve the problem, Acode System designed different cash drawer trigger interface to meet different requirements and customer demands, making it flexible, simple and smooth to transit to a new system.

Why use the Cash Drawer Trigger ?

1. Replace cash drawer without changing cash drawer programming

2. Replace pos station no need consider change trigger and programming

3. Pos station cash drawer port is not working, use a cash drawer trigger instead to open cash drawer.

4. Acode System designs a wide range of high quality Cash Drawer Triggers to meet customers’ requirements.

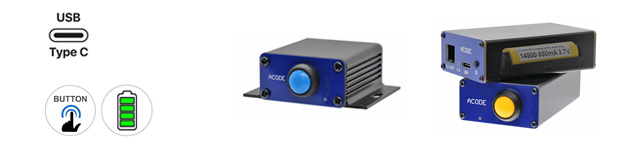

Push Button / Manual

TYPE-C power interface design. Just press the physical button, can open cash box without use of printer or cash drawer key.

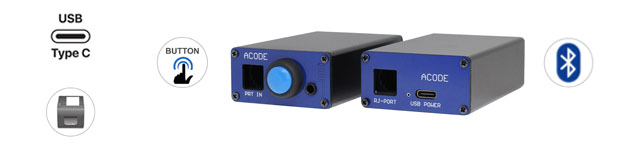

BUDDY Series

POS receipt printer + push button/bluetooth, in conjunction

Provides 2 options to open cash drawer. Standard way is to control and open cash drawer from POS receipt printer after a sales transaction. Another way is to open cash drawer outside of a sale with a push button or via Bluetooth connection. Customer can choose which way to open a cash drawer.

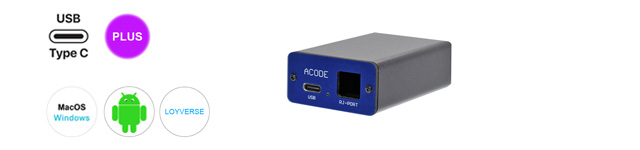

USB Interface

Open cash drawer in Android, Windows, MacOS. Direct connection to Android Tablet, POS Terminal and Desktop Computer with USB Type-C interface. Both dedicated serial and non-dedicated serial connections are available for different needs. Apart from opening cash drawer, this USB drawer cash trigger can be connected to a second device such as weight scale.

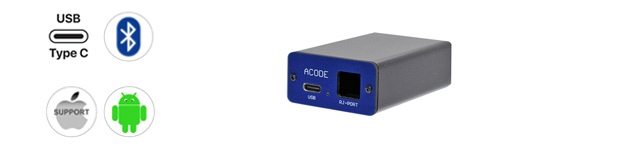

Bluetooth

Adopting TYPE-C power supply, open cash drawer wirelessly via Bluetooth, detect cash drawer’s open/close status and be able to connected to a second device such as weight scale.

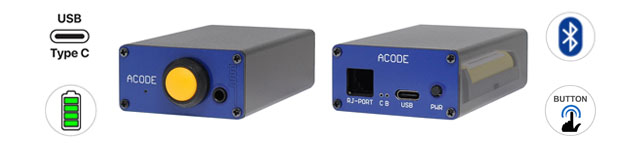

Mobile

Designed to facilitate mobile or outdoor sales transactions, suitable for food trucks or catering concession stands. This Battery Operated Cash Drawer Trigger is powered by 14500 rechargeable battery. The Trigger itself can be treated as a power bank, using TYPE-C power supply. You can recharge the battery and trigger open cash drawer at the same time. The Trigger can be used for several days after a full charge. Can trigger open cash drawer from push button or via Bluetooth connection.
AT10M3 Series Battery Operated Cash Drawer Trigger is suitable for exhibition booth, shopping mall cart stall, food truck and outdoor markets.
When the battery is fully charged, the standby time of this Battery Operated Cash Drawer Trigger is about 4 ~ 5 days or working time is about 2 ~ 3K. Charging and operation can be done at the same time. The battery is similar in size to a standard AA battery and is easy to replace.

Solar Power

This Battery Operated Cash Drawer Trigger is powered by 14500 rechargeable battery and getting power from solar panel. It is economical and eco-friendly and does not require mains power to work. Designed for outdoor operations such as food trucks, portable events and mobile concession stands.
The Trigger itself can be treated as a power bank, using TYPE-C power supply, simply plug the USB plug into your solar panel to recharge the 14500 battery. You can charge the battery and trigger open cash drawer at the same time. Solar Series Cash Drawer Trigger for Food Truck , Outdoor market or without power point area , Client can use the solar panel to charge Cash Drawer Trigger Battery. In fact, sunlight is sufficient for charging battery. other function same with Mobile Model

(* AT10M3 cannot use solar panel charge battery).

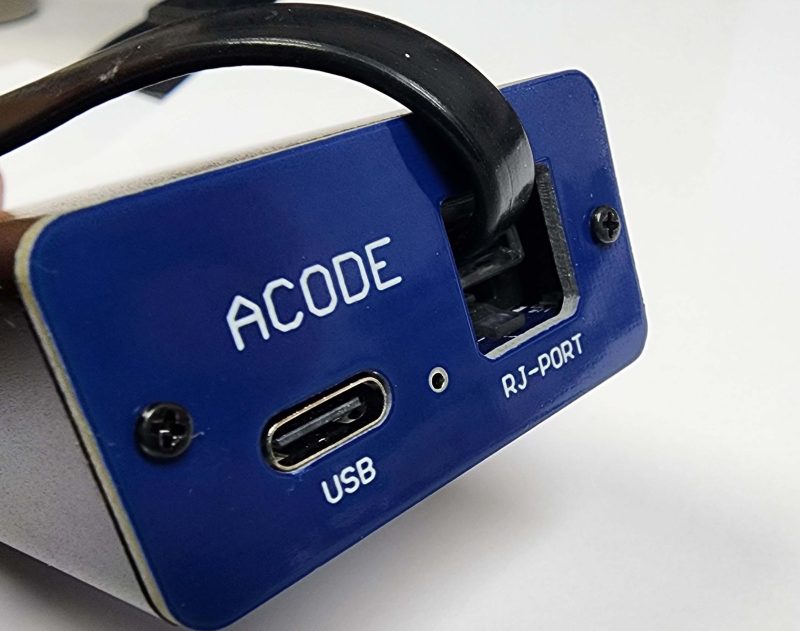

RJ Socket Plug-in Design

Why our cash drawer trigger RJ plug is inserted inside the case ?

RJ plug is placed inside the case to prevent the occurrence of cable loosening, causing bad contact. All of our cash drawer triggers use this design, which is safer.
