AT10U3 (00102-00000) USB Cash Drawer Trigger for Android and Windows, USB Type-C Interface

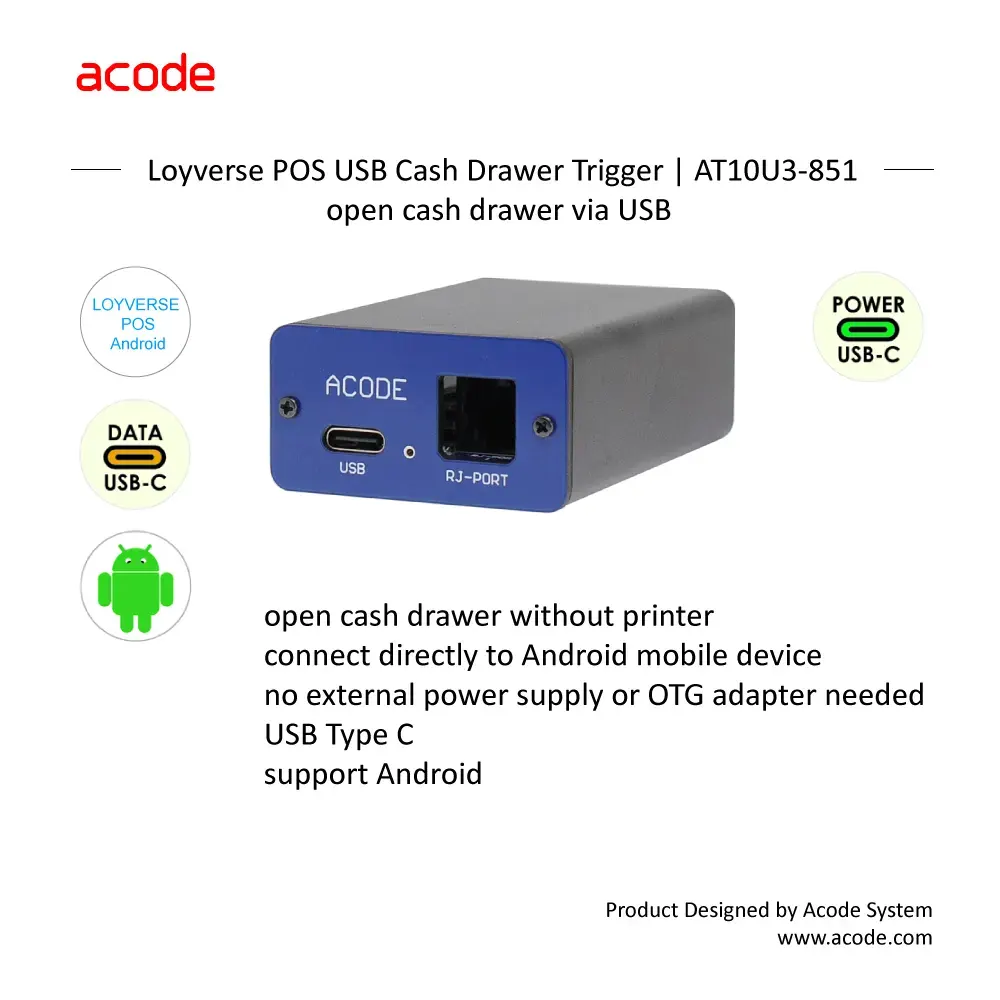

AT10U3-Loyverse-POS-USB-Cash-Drawer-Trigger-Android

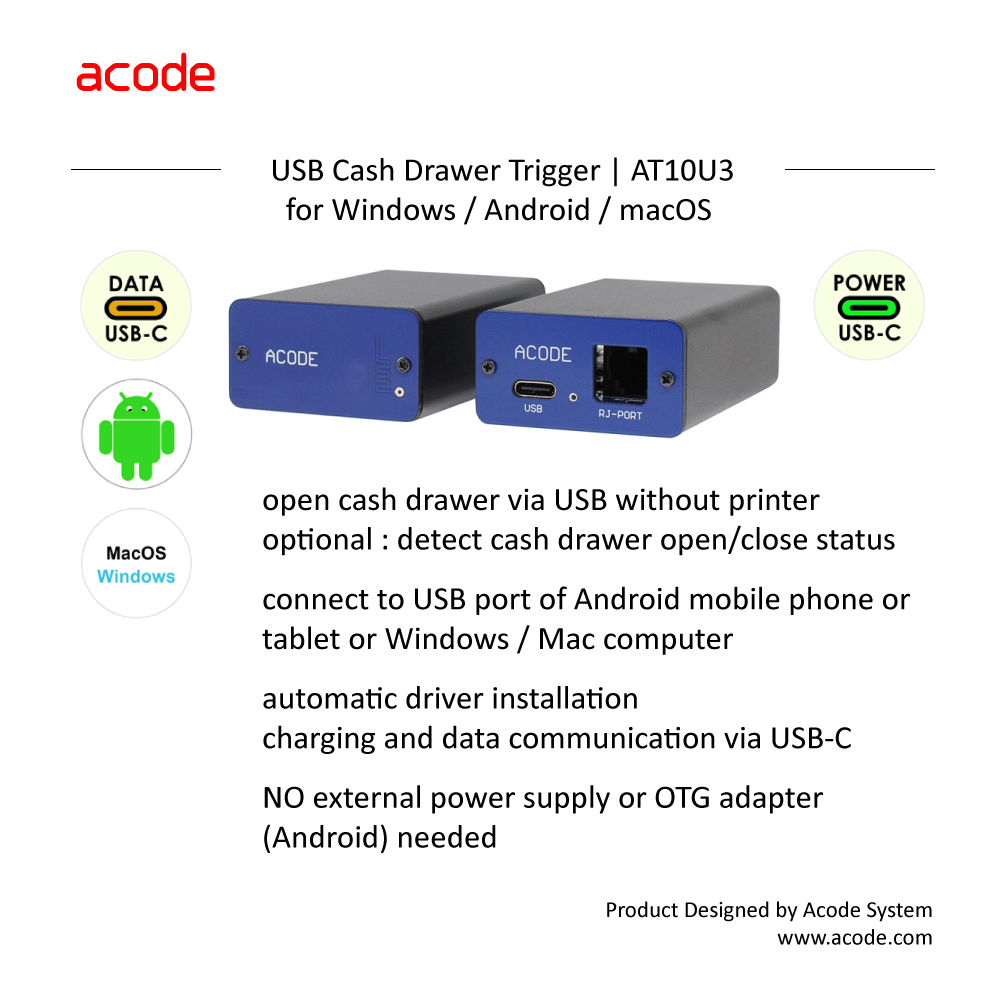

AT10U3-USB-Cash-Drawer-Trigger-Windows-Android-macOS

AT10U3 (00102-00000) USB Cash Drawer Trigger for Android and Windows, USB Type-C Interface

Direct Connect to USB of Android Tablet or Windows PC to Open Cash Drawer

AT10U3 (00102-00000) USB Cash Drawer Trigger for Android and Windows

auto open cash drawer in Android, Windows, macOS

  • Smart Cash Drawer Trigger with USB-C Connectivity
  • Metal case size :  65 x 45 x 23.5mm (DWH)
  • USB to open cash drawer without needing a receipt printer, ideal for modern POS systems that operate with mobile devices or computers
    • Printer-Free Operation : open cash drawer without requiring a printer connection
    • USB Type-C Interface : connect directly to Android mobile device, Windows PC and macOS system
    • OS Supported : Windows, Android, macOS
    • OTG Support (Android) : work with Android device via USB OTG
    • Driver Installation : Auto Driver Installation for Windows and Android
    • Dedicated Serial Communication : USB Type-C interface, Virtual Serial COM Port, open cash drawer when any data is sent from the POS App to the virtual COM port
  • communication and charging via USB Type C
  • LED lights showing power and operating status
  • AT10U3 Cash Drawer Trigger Compatible with 12–24V RJ11/RJ12 cash drawers. Standard RJ11/12 fit—works with all printer‑driven models.
  • Cable : USB Type A to Type C (default) or USB Type C to Type C (optional)

Technical Requirement : AT10U3 USB Cash Drawer Trigger Android and macOS version require IT knowledge and technical/system development

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry
Categories: ,

Description

Modern POS systems often rely on receipt printers to control cash drawers — but not every setup includes one. The Acode AT10 USB Cash Drawer Trigger offers a simple, reliable solution by connecting a standard RJ11/RJ12 printer‑driven cash drawer directly to your computer via USB.

Designed for maximum flexibility, the AT10 creates a virtual COM port (e.g., COM1, COM2), allowing POS software to open the drawer using standard serial commands. With plug‑and‑play support for Windows, Android, and macOS, plus compatibility with both USB Type‑A and Type‑C connections, installation is quick and hassle‑free.



Data Sheet

Model #  AT10U3 (00102-00000)
Function :  Opens cash drawer via USB interface

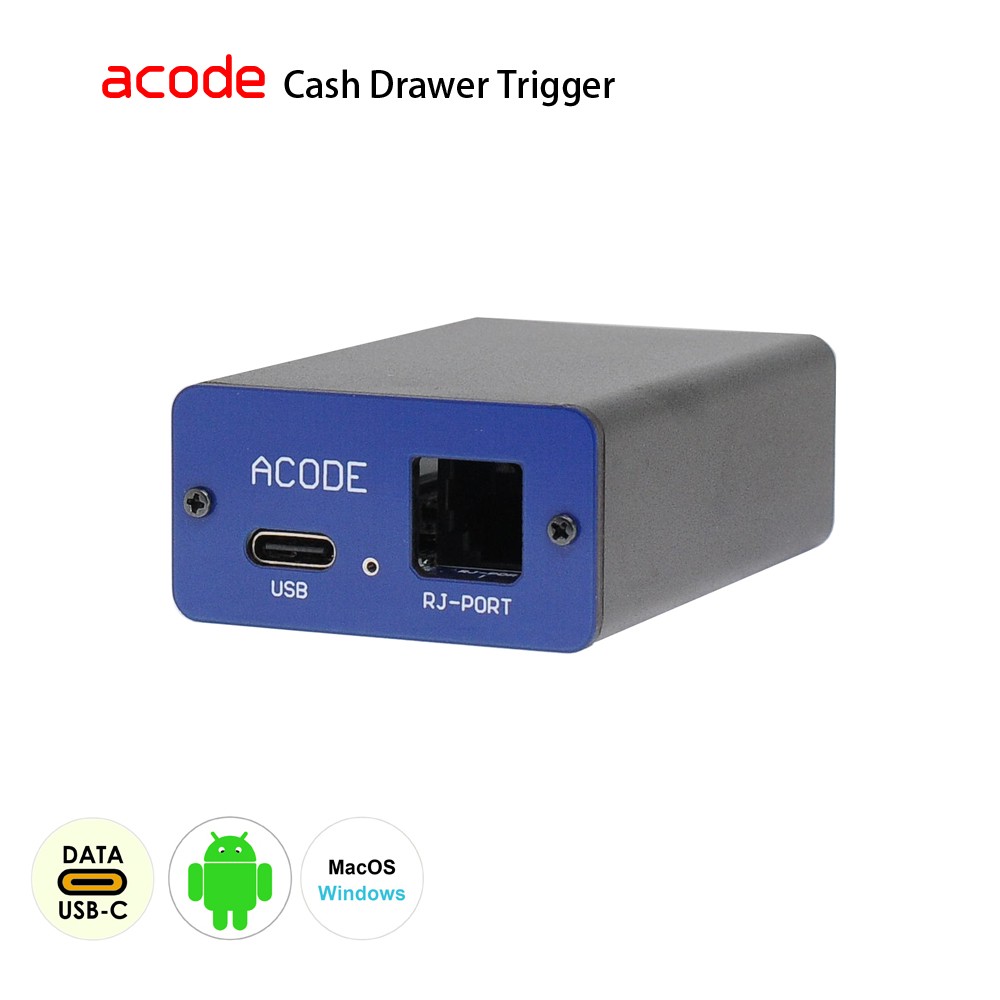

Interface :
  • USB Virtual (Serial) COM / Type‑C Socket
  • Cash Drawer RJ12 Socket
Trigger Mode :  Dedicated Activation
Power :
  • USB Type‑C Direct Port Power
  • DC 5 V, < 500 mA (no external power supply required)
For Cash Drawer Type :
  • 12–24 V DC, < 1.5 A

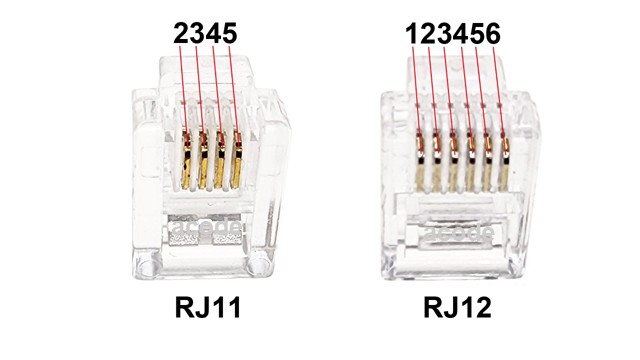

  • Support RJ11 or RJ12 Plug
  • Default wiring: Pin 2 or Pin 5 with common Pin 4
OS Support :
  • Android 5.0 or above ; Windows 11, 10, 8.1, 7 ; macOS
  • Please verify your operating system version to ensure USB compatibility.
Cable Options :
  • USB Type-A to Type-C x 1 (default)
    or
  • USB Type-C to Type- C x 1
Casing :  Aluminium
Colour :  Black
Weight :  60 g (net, without cable) ±15%
Dimensions :  70 × 45 × 24 mm (D × W × H)
 * Specifications are subject to change without prior notice.

Demo Video

Video-AT10U3-PLUS-USB-Cash-Drawer-Trigger-detect-open-close-Windows11Watch Video | Youtube

AT10U3 PLUS USB Cash Drawer Trigger
detect cash drawer open/close status
support Windows 11
Non-dedicated Serial
detect cash drawer open/close status without requiring additional utilities or SDKs
open cash drawer in Windows 11 via USB port, without printer
no external power supply needed

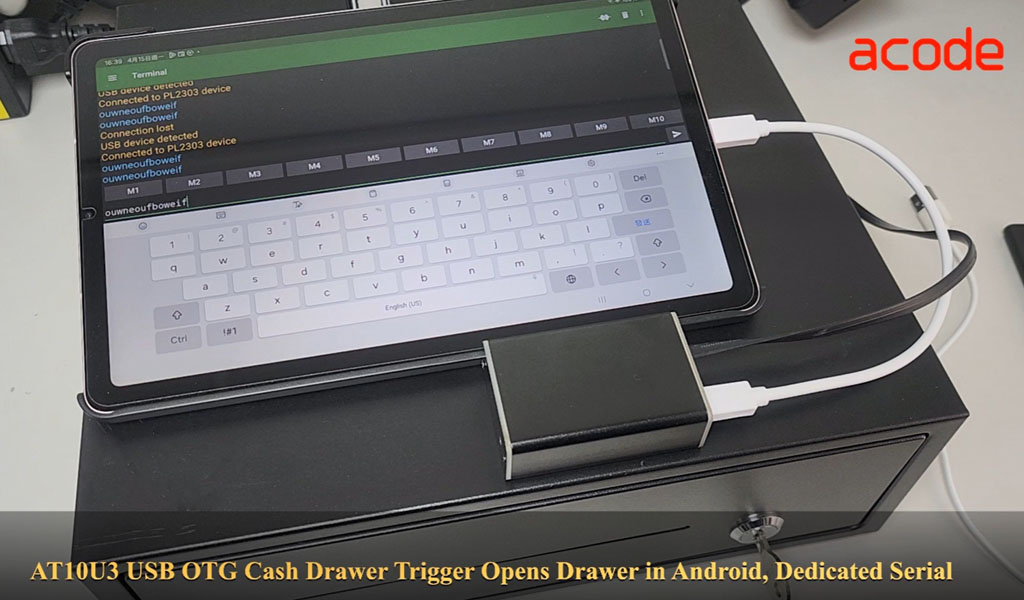

Video AT10U3 USB Cash Drawer Trigger USB Type CWatch Video | Youtube

AT10U3 USB Cash Drawer Trigger
support Android 8.0 or above, Windows 11, macOS
open cash drawer via USB port
direct connection to your Android tablet or computer
no external power supply or OTG adapter (Android) needed

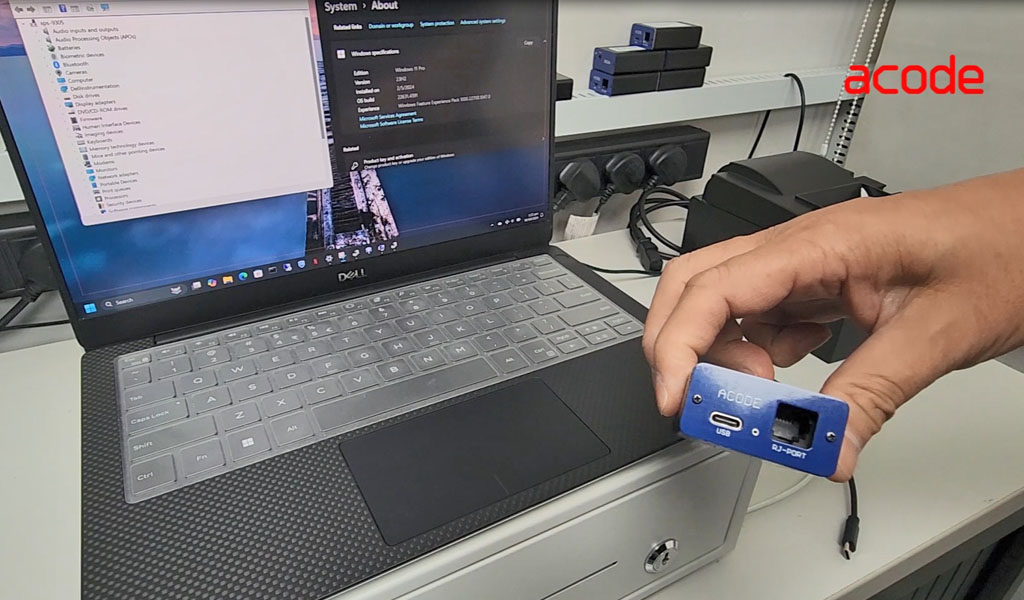

Product Video AT10U3 USB Cash Drawer Trigger Windows11Watch Video | Youtube

AT10U3 USB Cash Drawer Trigger
open cash drawer in Windows 11 via USB port
automatic driver installation
no external power supply needed
open cash drawer without printer
convert printer driven cash drawer to USB
USB Type C interface
