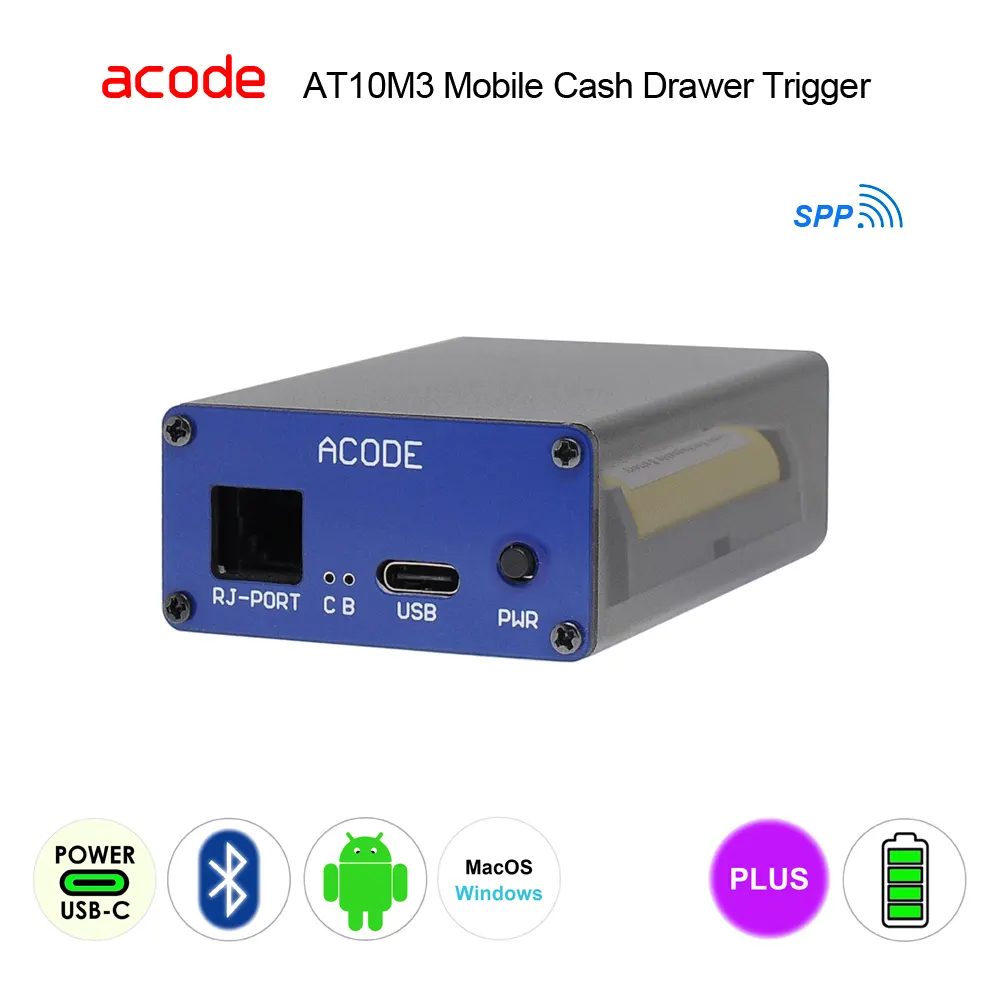

AT10B3-00313-43000 Mobile Bluetooth Cash Drawer Trigger

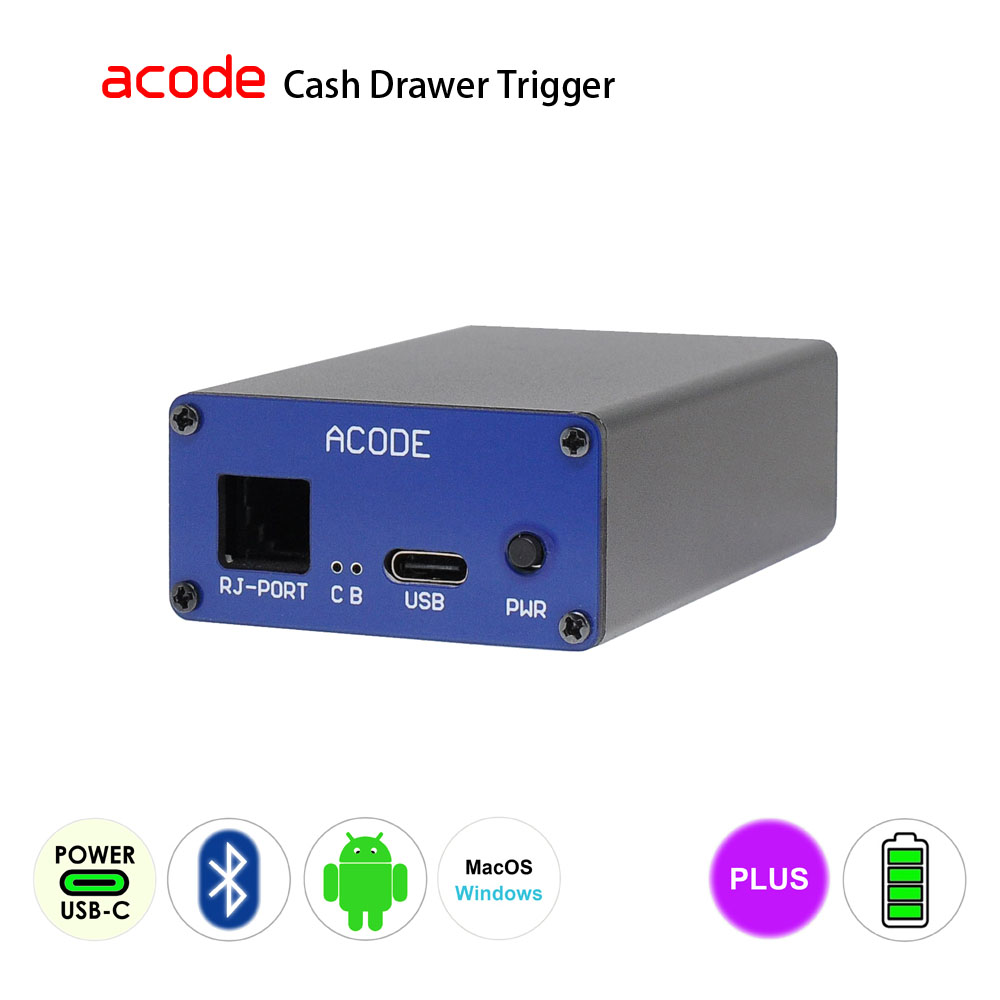

AT10M3‑00313‑43000 MOBILE Battery‑Powered Bluetooth Cash Drawer Trigger — Code Access Control - Image 2

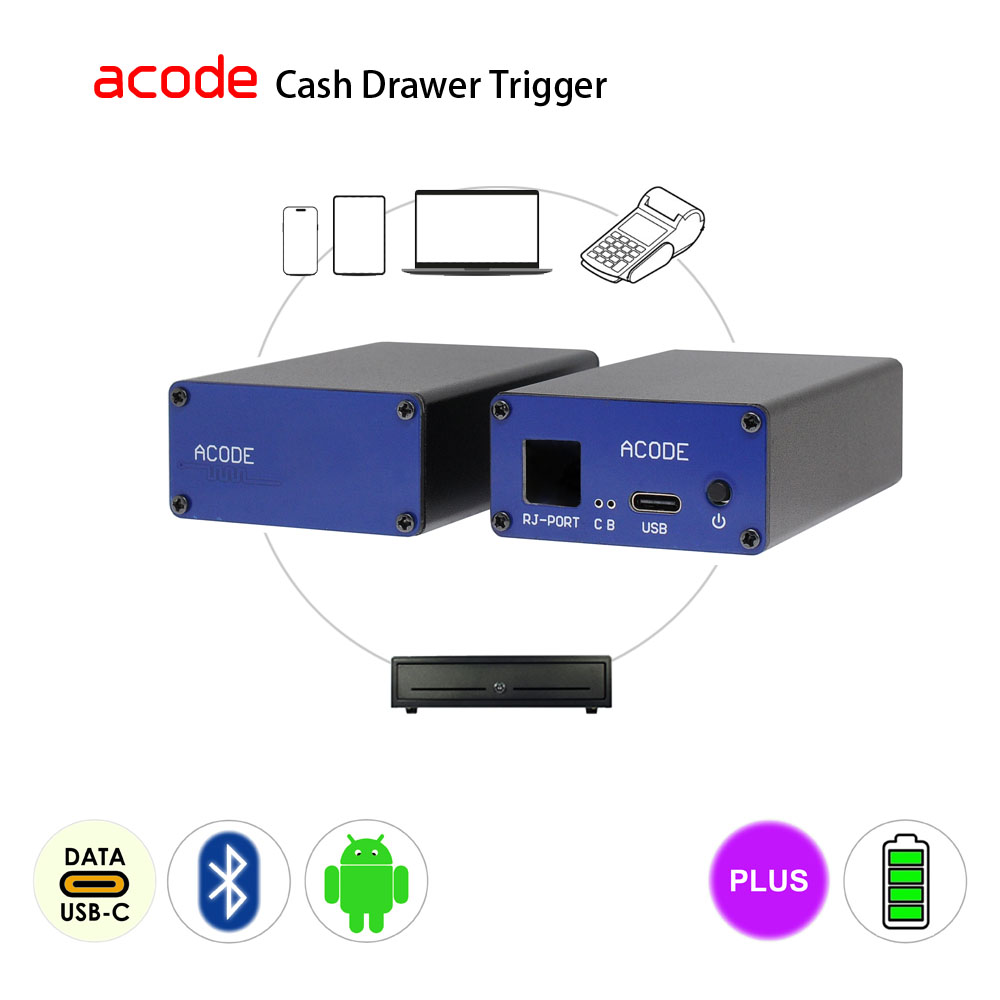

AT10M3‑00313‑43000 MOBILE Battery‑Powered Bluetooth Cash Drawer Trigger — Code Access Control - Image 3
14500 Battery 3.7V

AT10M3‑00313‑43000 MOBILE Battery‑Powered Bluetooth Cash Drawer Trigger — Code Access Control

AT10M3 Mobile Cash Drawer Trigger – Battery-Powered Bluetooth Code‑Triggered

AT10M3‑00303‑43000 is equipped with a rechargeable lithium battery, ensuring uninterrupted operation during unstable or lost power. Each charge supports 1,200 cycles. Compact, user‑friendly, and simple to install, it delivers dependable Bluetooth and code‑trigger drawer access with seamless integration for modern POS systems.

# Requires IT knowledge, technical skills, system development.

  • Cash drawer opens via Bluetooth with code-trigger access
  • Secure Bluetooth SPP3.0 COM trigger; PIN‑protected access
  • Interface Type‑C provides DC 5V input power with charging
  • Dual power options ensure nonstop drawer operation
  • Supports over 1,000 cycles per complete battery charge.
  • Supports 12–24V RJ11/12 POS printer‑driven drawers.
  • Replaceable battery design enables quick user maintenance.
  • Developer‑ready Bluetooth solutions with no extra SDK required
  • Compact aluminium case, durable 85×50×25 mm.

Compatibility Notice:

  • Device Support: Compatible with standard Android, Windows and macOS. (Please verify your operating system version to ensure Bluetooth compatibility).
  • Important Note: Android devices equipped with specialized payment gateway systems may not function as expected

Additional :

  • International delivery ships worldwide by Air or Surface.
  • Pricing: All catalog product prices shown in USD.
  • Restriction: Shipments excluded for P.O. Box addresses.
Enquiry
Categories: , ,

Specifications

AT10M3 Mobile Bluetooth Cash Drawer Trigger :

Model #  AT10M3 00313-43000 Cash Drawer Trigger Specifications
Function :  Battery-Powered Non-Dedicated Bluetooth cash  drawer trigger
Interface :
  • USB Type‑C Socket — Power Input.
  • RJ12 Socket — Direct Cash Drawer Plug.
Bluetooth Module :  SPP 3.0, Pairing mode
Trigger Mode :  Code-Triggered
Power Input :  USB Type‑C, DC 5V <500mA
Power Adapter Requirements :  Fixed DC 5V, ≥ 500 mA — single port power adapter required (not included)
Cash Drawer Requirements :
  • Cash Drawer Type – POS printer‑driven cash drawer.
  • Solenoid – 12–24 V DC, < 1.5 A.
  • Cash drawer plug interface – RJ11/RJ12 compatible.
  • Default Wiring – Pin 2 or Pin 5 with common Pin 4.
Battery Requirements :

🔋 Battery Specification :

  • Battery : 14500 rechargeable lithium‑ion
  • Capacity (Rated): 850 mAh or higher
  • Battery Type Options: Flat‑top (recommended) or button‑top
  • Battery Electronically Protected : Recommended
  • Nominal Voltage: 3.6V to 3.7V
  • Full Charge: sits around 4.2V
  • Rechargeable: Required
OS Support :
  • Android 5.0 or above ; Windows 11, 10, 8.1, 7 ; macOS
  • Please verify your operating system version to ensure USB compatibility.
Cable:  USB Type-A  to Type-C x1
Casing :  Aluminium
Colour :  Black
Weight :  110 g (net , without battery and cable) ±15%
Dimensions :  85 ×50× 25mm (D × W × H)
Remarks :
  • The AT10M3 Series is shipped without a battery.
  • Do not use standard alkaline batteries.
  • Do not use non‑rechargeable 14500 batteries
   * Specifications are subject to change without prior notice.
