AT10M3-PB Push Button Battery Operated Button Cash Drawer Trigger
AT10M3-10M3PB-battery-operated-button-cash-drawer-trigger-PB-info

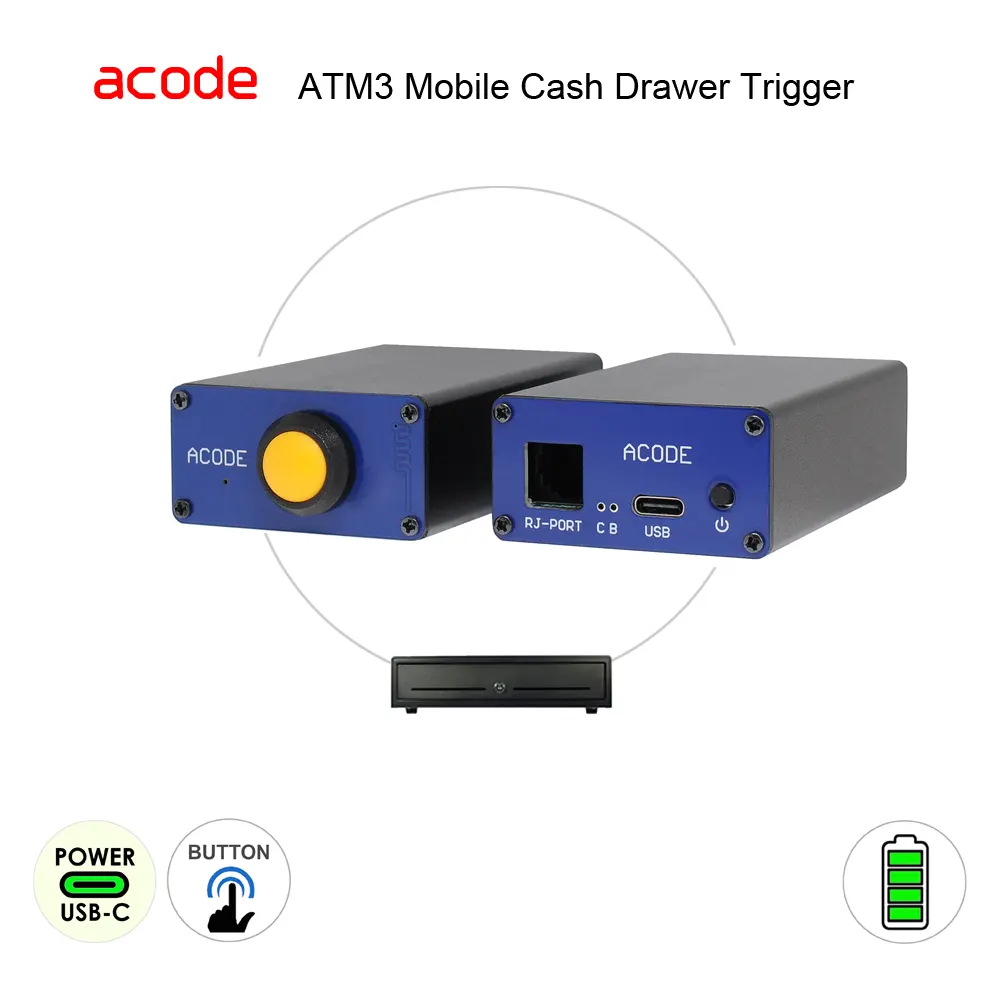

AT10M3-PB Battery Operated Push Button Cash Drawer Trigger

Mobile Cash Drawer Trigger Ideal for Outdoor Operation

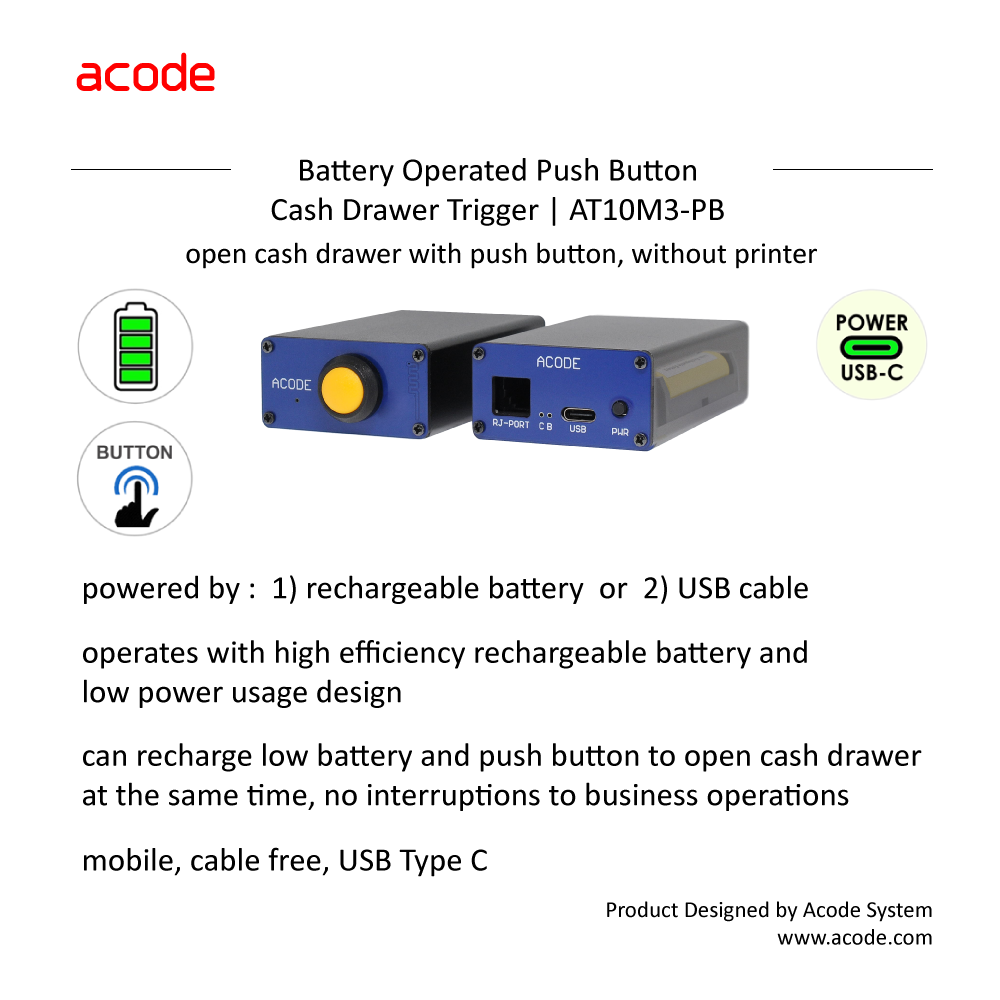

AT10M3-PB Battery Operated Push Button Cash Drawer Trigger

battery operated, open cash drawer with push button, cable free

  • manual open cash drawer with push button
  • open cash drawer without receipt printer / receipt printing
  • 2 ways to provide power to the cash drawer trigger :
    1) 14500 rechargeable battery OR
    2) via USB C cable
  • at the same time, open cash drawer and recharge low level battery
  • AT10M3 Series Battery Operated Cash Drawer Trigger is designed to resolve the problem of power bank shutting down automatically due to minimal power usage
  • ideal for mobile or outdoor operation such as food truck, shopping mall cart stall

Key Feature | power system of the AT10M3 Series Battery Operated Series Cash Drawer Trigger

  • the Battery Operated Cash Drawer Trigger features an efficient, low power design and uses a high-efficiency 14500 rechargeable battery
  • it can be recharged using a power bank (with a 14500 battery inside) or an external 5V USB power source
  • AT10M3 Series Battery Operated Cash Drawer Trigger was developed to address the issue of power banks automatically shutting down due to the low power consumption and provide a solution
  • it uses a replaceable AA type 3.7V rechargeable battery, ensuring continuous operation and easy battery replacement

How it works :

  • If battery level is low, recharge battery using a power bank (with a 14500 battery inside) or an external 5V USB power source, it will recharge low battery and provide power to the Battery Operated Cash Drawer Trigger at the same time. There will be no interruptions to your business operation.
  • When the battery is fully charged, the standby time of the Battery Operated Cash Drawer Trigger is about 4 ~ 5 days, cash drawer open/close cycle is about 2,000 to 3,000 times (performance may vary depending on battery conditions). Charging and operation can be done at the same time.
  • You can simultaneously open cash drawer with manual push button and recharge the low battery, business operation will remain unaffected.

Remarks :

  • Standard : AT10M3-PB Battery Operated Push Button Cash Drawer Trigger connects to RJ printer driven cash drawer.
  • Optional : AT10M3-PB Plus Version Battery Operated Push Button Cash Drawer Trigger connects cash drawer + 1 other device (such as weighing scale).

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Payment : prices in USD, accept payment via PayPal
  • DO NOT ship to P.O. Box
Enquiry
Categories: , , ,

Video

Video AT10M3 Battery Operated Push Button Cash Drawer TriggerWatch Video | Youtube

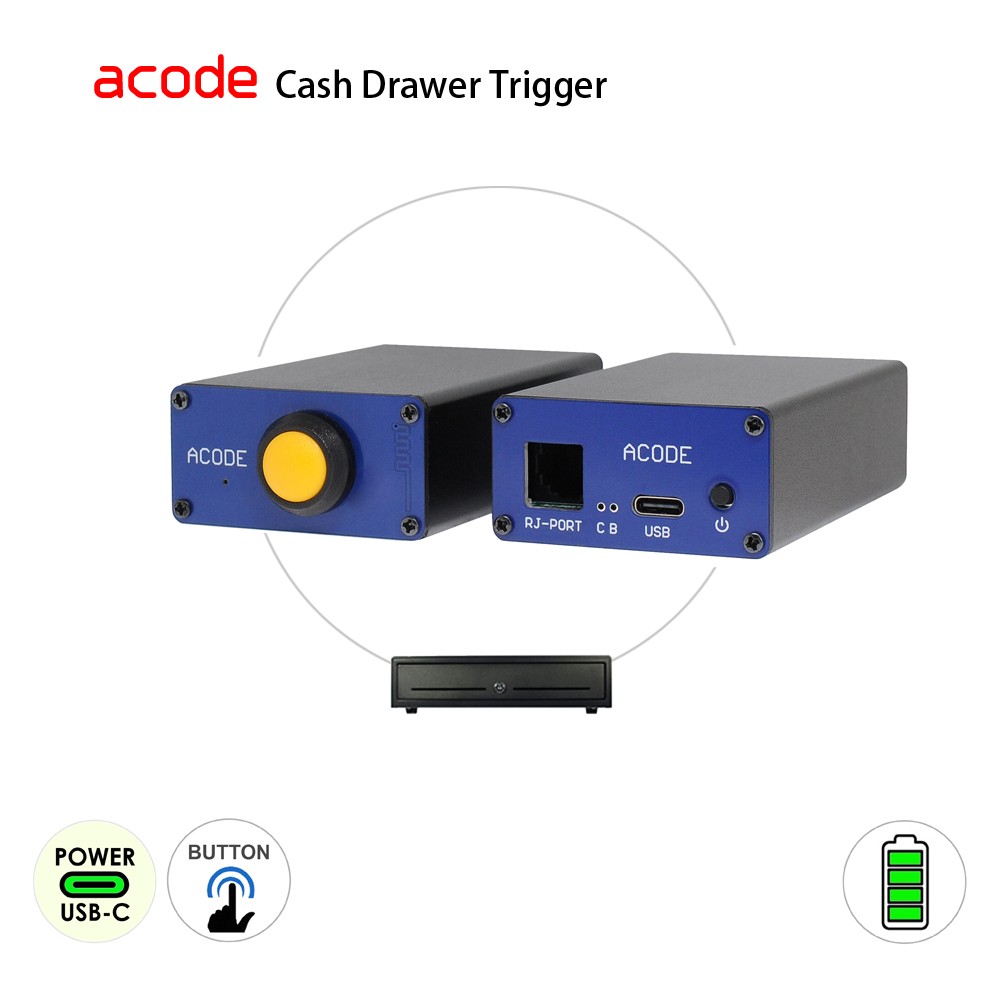

AT10M3-PB Battery Operated Push Button Cash Drawer Trigger
battery operated
open cash drawer with push button
greater mobility and convenience

FAQs

PAS-AT10M3-PB Mobile / Battery Operated Push Button Cash Drawer Trigger Frequently Asked Questions

  A. I am a food truck owner, how can I open cash drawer for non-electronic payments ?

AT10M3-PB Battery Operated Push Button Cash Drawer Trigger can manual control opening of your cash drawer with a push button. This mobile push button cash drawer trigger is rechargeable battery operated which offers simplicity and convenience for owners. Even better, when the battery runs low, just plug the USB-C cable we provide to an external power source, the cash drawer trigger’s power source will switch from battery to external the external power source. You can simultaneously use the push button cash drawer trigger and charge the battery.

  B. After full charging battery , how many times can it be triggered ?

AT10M3-PB Push Button Cash Drawer Trigger : The battery capacity will affect the number of triggers. A normal 850mA battery can trigger about 2500~3000 times.

  C. How can I recharge battery and still be able to use the AT10M3 battery operated cash drawer trigger to open cash drawer when charging the battery ?

It’s very simple. When the battery power is running low, plug the USB cable we provide to an external power source such as an Always-On power bank or to power adapter, it’ll start charging the rechargeable battery inside and at the same time you can still use the push button to open cash drawer, will not interrupt business operation.

  D. What types of cash drawers can match ?
  1. Compatible with POS Receipt Printer Cash Drawer Interface.
  2. Cash drawer RJ11 4 Pin Plug or RJ12 6 Pin Plug.
  3. Electrical 12~24 Volts DC, 1A.
  4. Pin 2 & 4 or Pin 4 & 5 is solenoid.

Data Sheet

Model # AT10M3-PB : battery operated push button cash drawer trigger
open cash drawer with push button
Interface USB Type-C Interface

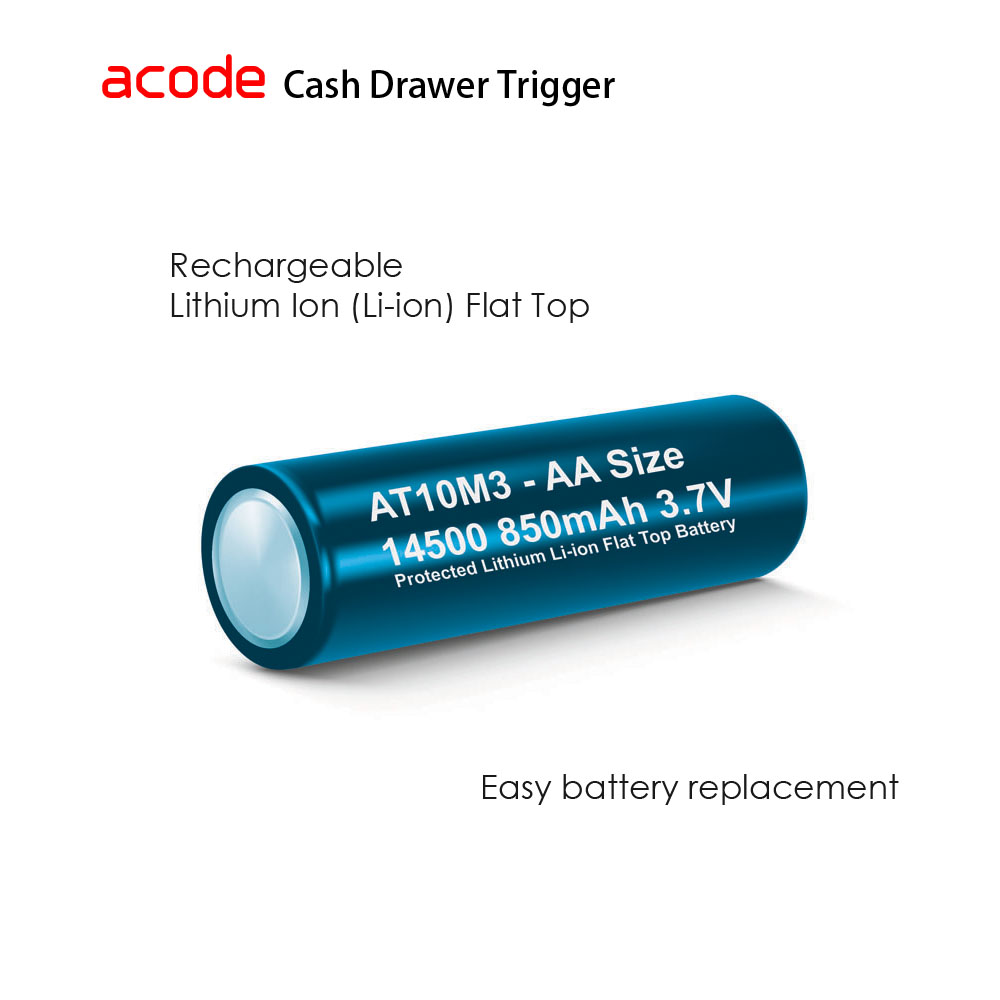

Power Input Battery Powered – Rechargeable Battery 14500 Li-ion [Lithium-ion]
Battery Requirement : Type/Size : 14500
Battery Protected
Battery Cell Capacity Rated : 850mAh
Nominal Voltage : 3.7V
Full Charge Voltage : 4.2V
Electronically Protected : Required
Rechargeable : Required
Remarks : Batteries NOT Included.
DO NOT use regular alkaline batteries.
Power USB Type-C, DC5V, <500mA
For Cash Drawer Type 12~24 Volts, <1.5A, RJ12 (support RJ11), default to fit cash drawer PIN 2,4 and PIN 4,5
USB Cable Default : USB Type A to C
Optional : USB Type C to C
Housing aluminium
Colour black
Weight 95g net (without battery and cable)
Dimension 93x50x25mm DWH
Remarks :
Batteries NOT Included.
DO NOT use regular alkaline batteries.
Specifications are subject to change without prior notice.
