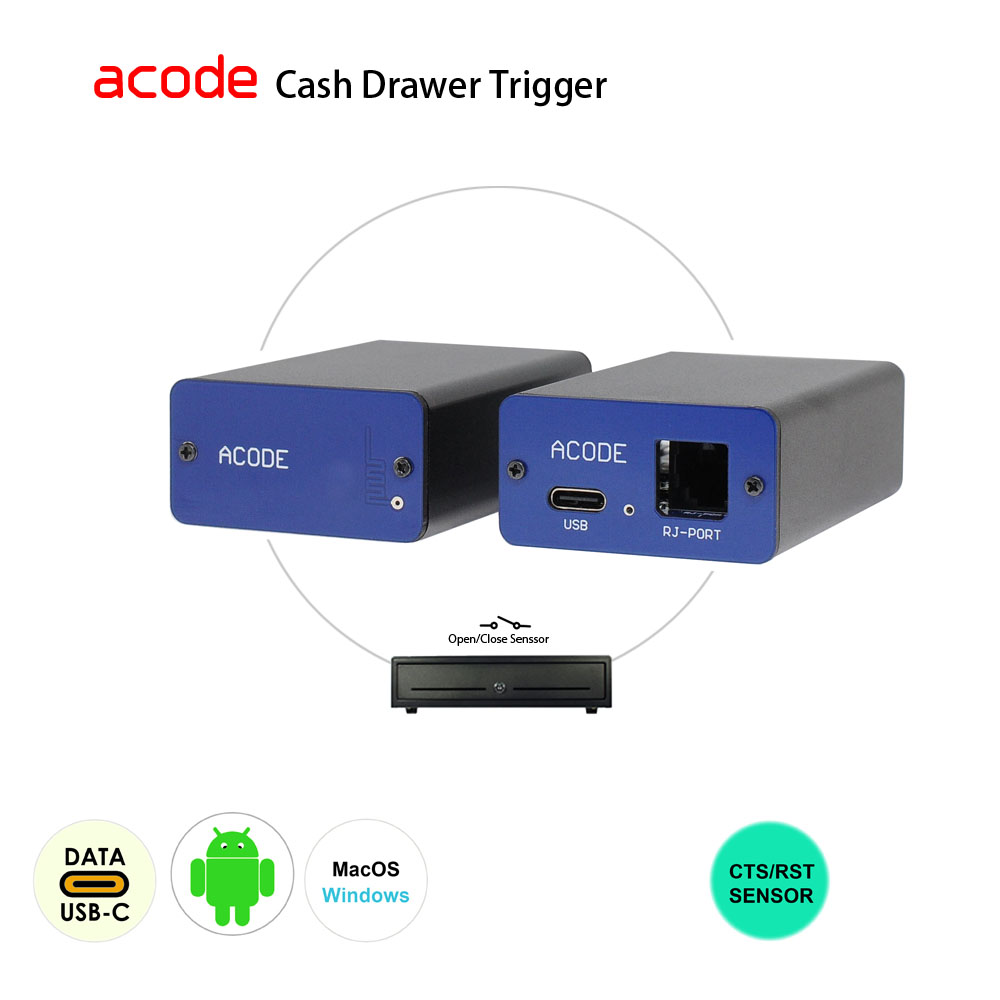

AT10U3 (00102-00001) USB Open Cash Drawer Trigger with Real Time Open Close Status

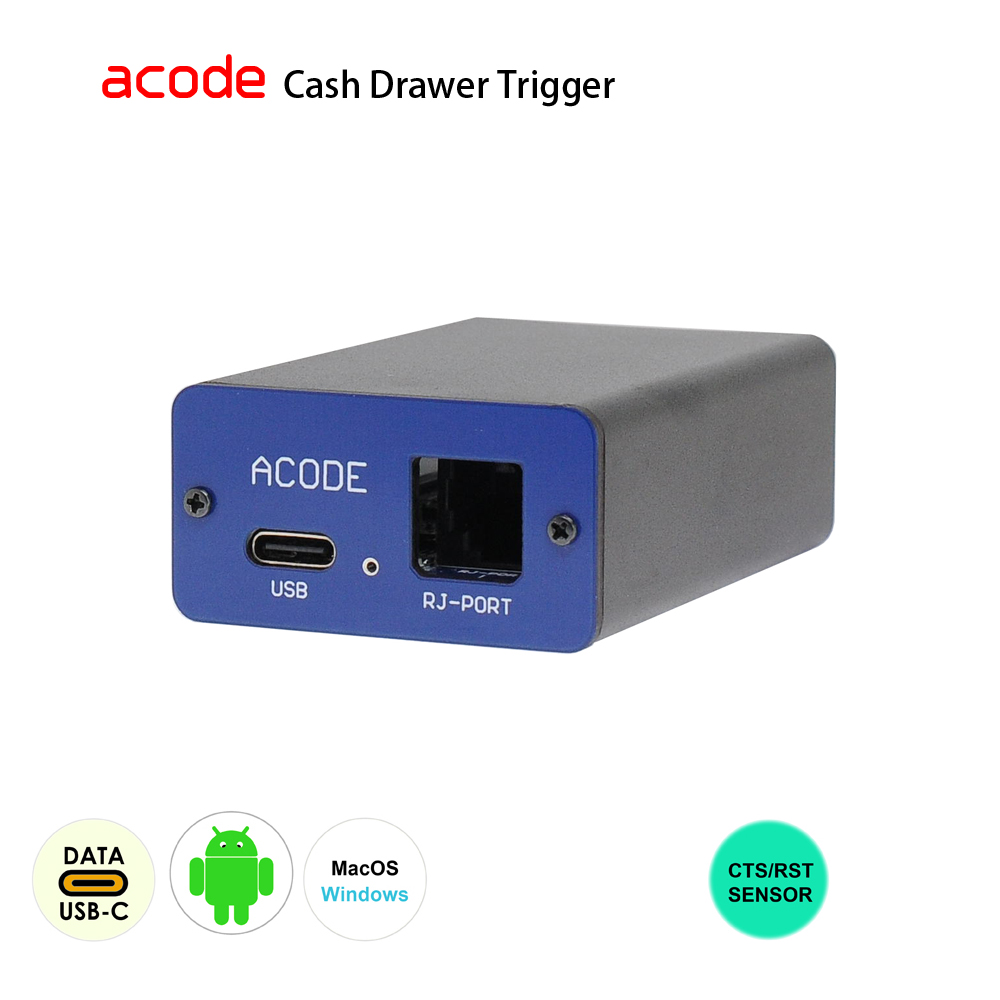

AT10U3-00102-00001 USB Cash Drawer Trigger — Any-Code Triggered with Open Status Detection (Smart-Sensor-CR Open/Close) - Image 2

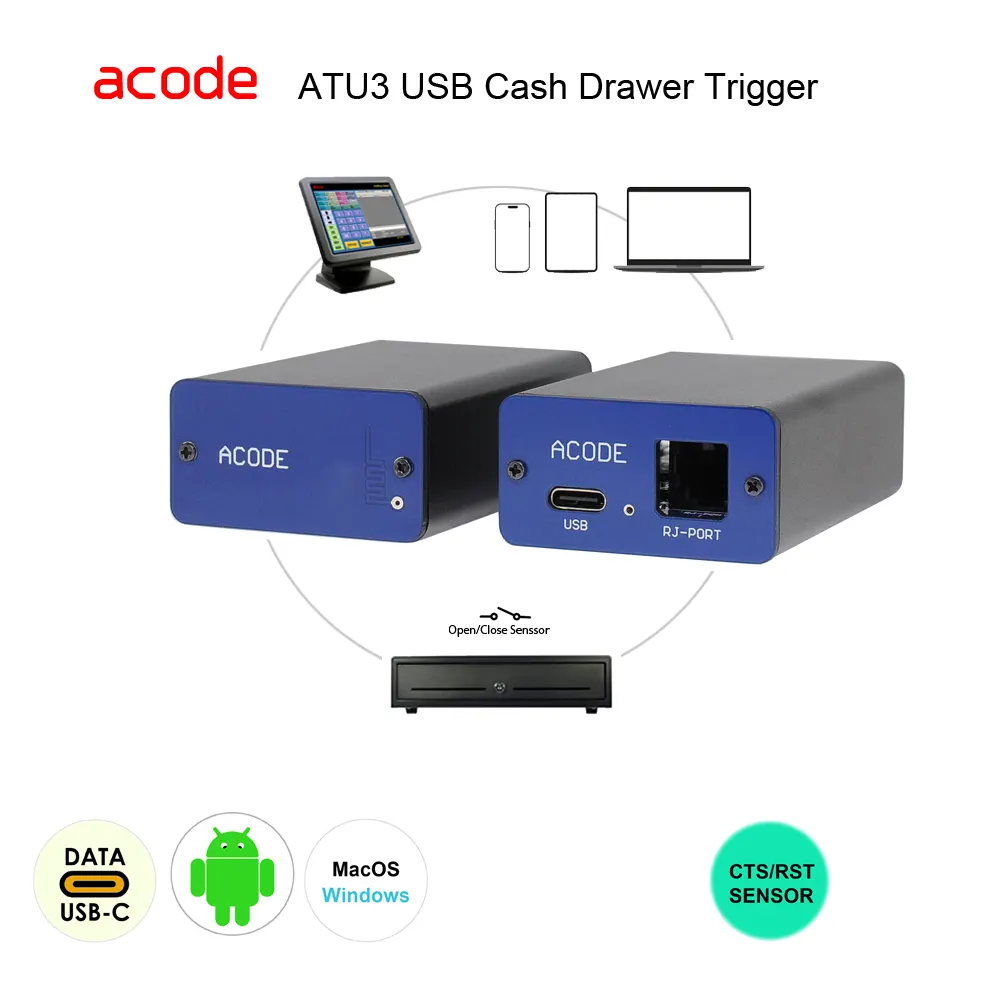

AT10U3-00102-00001 USB Cash Drawer Trigger — Any-Code Triggered with Open Status Detection (Smart-Sensor-CR Open/Close)

AT10U3 USB Cash Drawer Trigger — Any-Code Triggered with Smart-Sensor-CR for Cash Drawer Open/Close’ Sensor Detection

AT10U3-00102-00001 USB Cash Drawer Trigger integrates Sensor-CR for precise open/close detection via CTS/RTS signaling (NO/NC). It supports Any-Code COM Triggered and multi-OS compatibility, ensuring secure POS integration with RJ12 printer-driven drawers.

  • Cash drawer opens via USB with any-code access
  • CTS/RTS signal enables Sensor-CR open/close detection
  • USB-C design provides COM emulation without external supply
  • Supports 12-24V RJ12 cash drawers with sensor NO/NC detection ready
  • OS support: Windows, macOS, Android 5+ compatibility
  • Developer-ready USB solutions with no extra SDK required
  • Durable compact aluminium case, 70 × 45 × 25 mm
  • Optional : Cable security screw and Pro Panel
    (See Faq :  AT-BU-CSL)

# Deployment and configuration require technical knowledge and system development skills.

ORDER No: AT10U3-00102-00001-5102

Additional :

  • International delivery ships worldwide by Air or Surface.
  • Pricing: All catalog product prices shown in USD.
  • Restriction: Shipments excluded for P.O. Box addresses.
Enquiry
Categories: ,

Specifications

AT10U3 USB Cash Drawer Trigger :

Part No.   AT10U3-00102-00001 USB Cash Drawer Trigger Specifications
Function :
  • Any‑Code Opening with Open/Close Status Detection
Interface :
  • USB Type‑C Socket — USB Virtual (Serial) COM
  • RJ12 Socket — Cash Drawer Plug Connection
Trigger Mode :
  • Any‑Code Dedicated Trigger
USB Port Power :
  • DC5V, < 500 mA (no external power supply required)
Trigger Sensor :
  • Sensor‑CR supports CTS/RTS (NO/NC)
Cash Drawer Requirements :
  • Cash Drawer Type – POS printer‑driven cash drawer.
  • Solenoid – 12–24 V DC, < 1.5 A.
  • Cash drawer plug interface – RJ12 compatible.
  • Default Wiring – Pin 2 or Pin 5 with common Pin 4.
  • Sensor Requirement – Open/Close sensor required.
  • Sensor Pins – Pins 3 and 6.
OS Support :
  • Android 5.0 or above ; Windows 11, 10, 8.1, 7 ; macOS
    (Please verify your operating system version to ensure USB compatibility.)
Cable :
  • USB Type-A to Type-C Power Cable × 1 (Cable Length: Approx. 30cm standard)
Casing :
  • Aluminium
Colour :
  • Black
Weight :
  • 60 g (net, without cable) ±15%
Dimensions :
  • 70 × 45 × 24 mm (D × W × H) ±15%

  • Specifications are subject to change without notice.

FAQs

Download Utility

https://www.acode.com/en/download/at10u3-cash-drawer-trigger-driver-windows-11-support/
