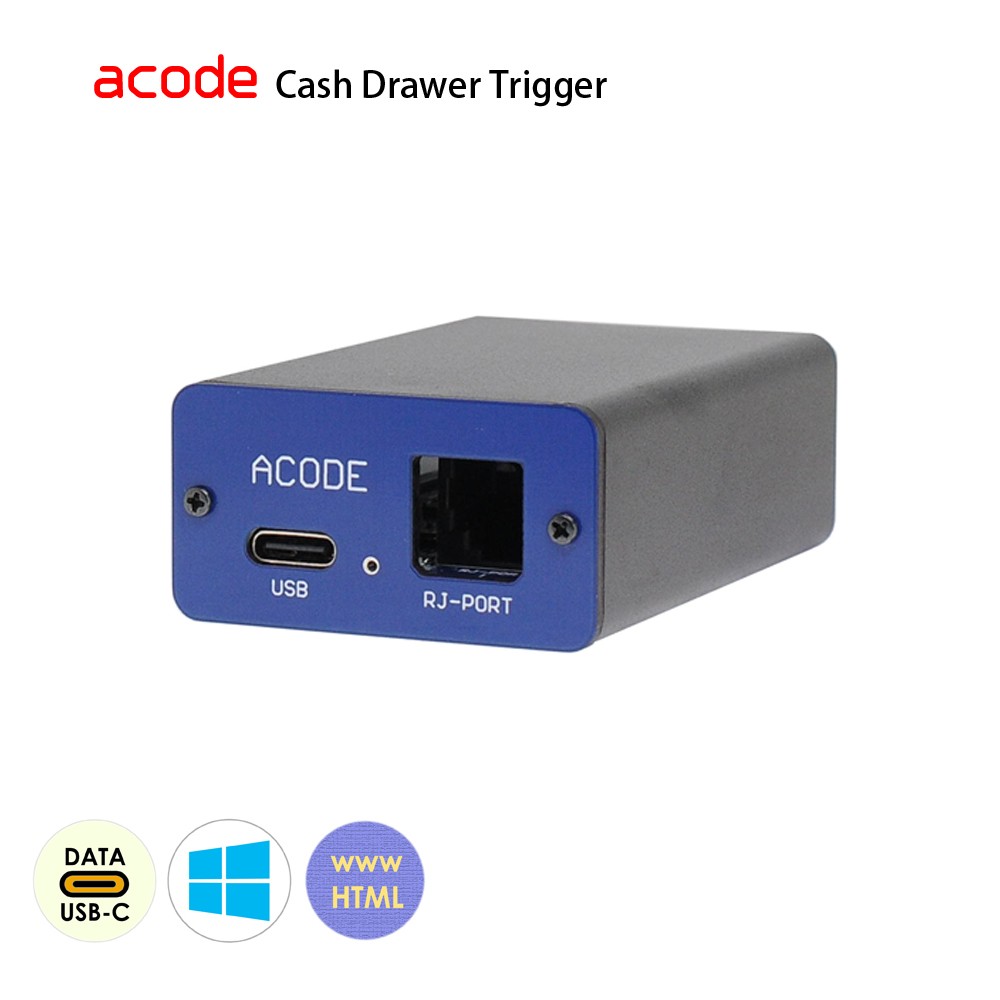

AcodeTigger – AT10U3‑81102‑00000 Browser‑Based USB Cash Drawer Trigger — HTML Open

AcodeTigger  – AT10U3 USB Cash Drawer Trigger  – Browser‑Based  HTML Activation

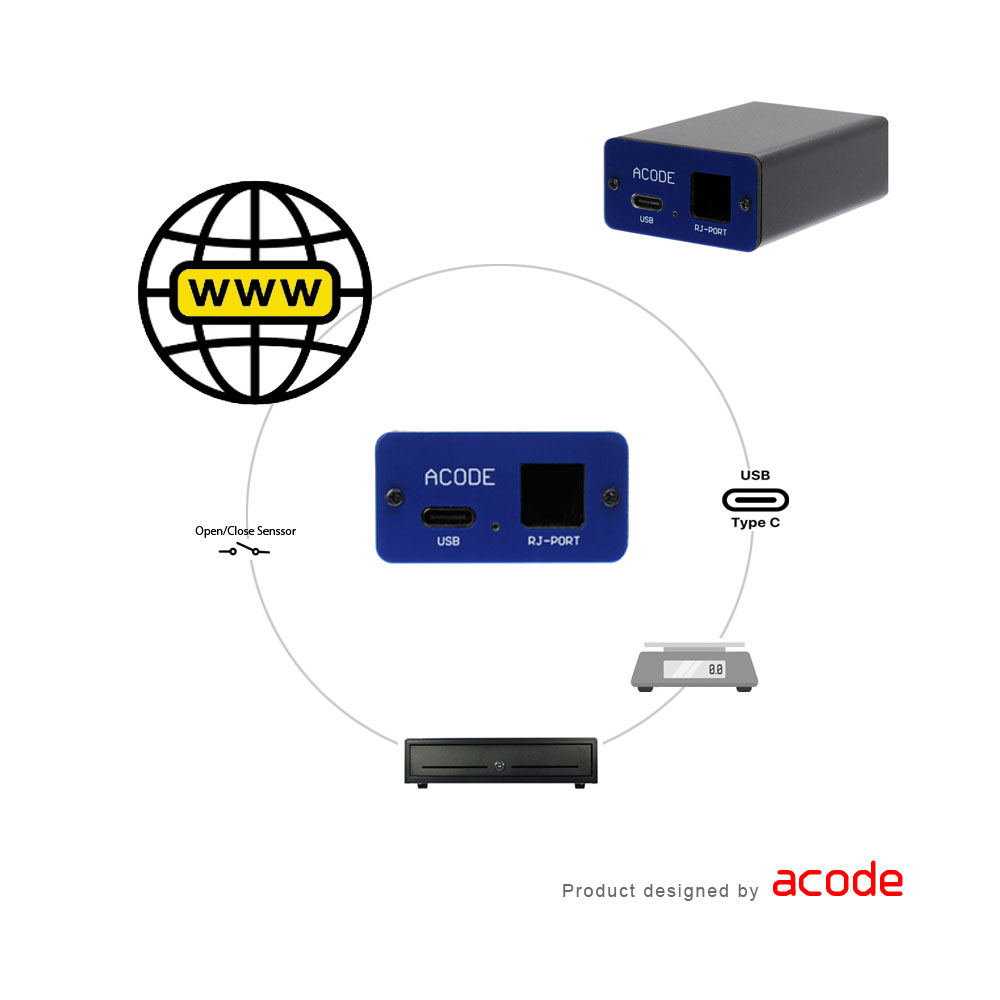

AT10U3‑81102‑00000 Browser‑Based Trigger enables secure cash drawer control directly through HTML or JavaScript. Featuring USB‑C Virtual COM connectivity, LED status indicators, POS printer compatibility, and Windows 10/11 support, its compact aluminium case ensures rapid installation, flexible integration, and reliable browser‑driven operation.

  • Browser control opens drawers via HTML/JavaScript.
  • Virtual COM port supported through USB‑C.
  • USB powered design, no external supply required.
  • POS compatibility supports printer‑driven cash drawers.
  • Developer‑friendly, add client‑side scripts in HTML.
  • Windows 10/11 operating system support included.
  • Compact aluminium case, durable 70×45×24 mm.

** This cash drawer trigger requires IT knowledge and technical/system development.

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry
Categories: , , ,

Specifications

AT10U3 : USB Cash Drawer Trigger

Part No.
  AT10U3-81102-00000 USB Cash Drawer Trigger Specifications
Function :  Drawer is browser‑triggered when HTML command is executed
Interface :
  • USB Type‑C Socket — USB Virtual (Serial) COM
  • RJ12 Socket — Cash Drawer Plug Connection
Operating Apps :  Browser‑Based (HTML)
Trigger Mode :  HTML Activation (Supported Browser Microsoft Edge, Chrome)
USB Port Power :  DC 5 V, < 500 mA (no external power supply required)
Cash Drawer Requirements :
  • Cash Drawer Type – POS printer‑driven cash drawer.
  • Solenoid – 12–24 V DC, < 1.5 A.
  • Cash drawer plug interface – RJ11/RJ12 compatible.
  • Default Wiring – Pin 2 or Pin 5 with common Pin 4.
OS Support :  Windows 11, 10
Cable :  USB  Type-A  to  Type-C  x1
Casing :  Aluminium
Colour :  Black
Weight :  60 g (net, without cable) ±15%
Dimensions :  70 × 45 × 24 mm (D × W × H)
   * Specifications are subject to change without prior notice.

Demo Video

FAQs

More FAQs :

frequently-asked-questions-cash-drawer-trigger-with-application

Installation Video

Download Utility

HTML Utility Test Page
