AT10U3 (86102-00000) USB Cash Drawer Trigger & AcodeTrigger App to Open Cash Drawer without EPOS System

AT10U3 (86102-00000) USB Cash Drawer Trigger & AcodeTrigger App to Open Cash Drawer without EPOS System

UnLock Smart Series
USB + Android App to Open Cash Drawer

AT10U3 (86102-00000) UnLock Smart USB Cash Drawer Trigger

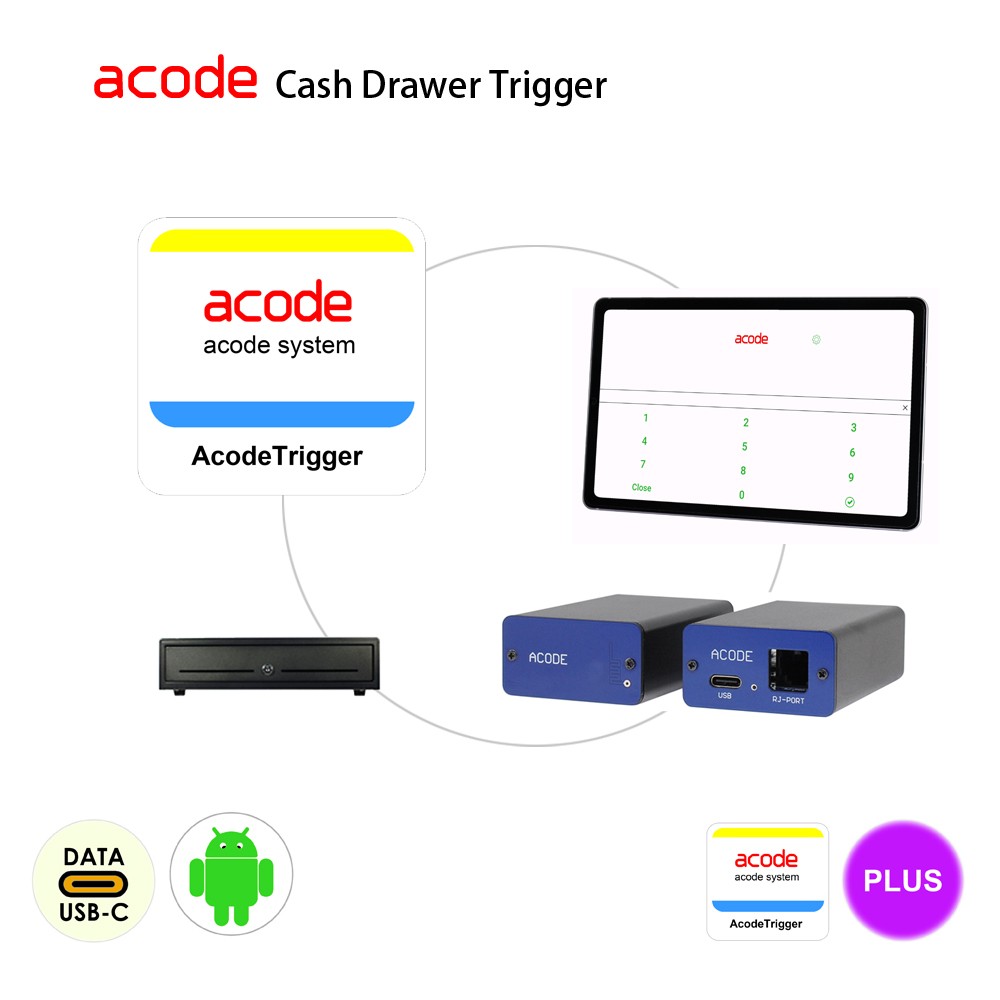

USB Cash Drawer Trigger + AcodeTrigger App (Android) open cash drawer wirelessly with mobile device

  • smart & flexible solution to open cash drawer via USB and the AcodeTrigger Android App without printer or EPOS System
    • Device Setup : connect the UnLock Smart USB Cash Drawer Trigger to your cash drawer
    • App Control : install the AcodeTrigger App to your Android mobile device and pair with the UnLock Smart Cash Drawer Trigger via USB
    • Open Cash Drawer : open cash drawer with the AcodeTrigger App (Android) with your Android mobile device including mobile phone or tablet, without needing a receipt printer
    • Passowrd/PIN to open cash drawer : to open the drawer, users input a password in the AcodeTrigger App — adding a layer of security
    • Standalone Operation : can work independently with just an Android mobile phone or tablet, No printer or POS system required
    • Cash Drawer Access : whether a customer pays in cash or the drawer needs to be accessed for operational reasons, cash drawer can be opened quickly and securely via USB from your mobile device
  • Power via USB Type C , no need external power adapter.

Remarks :
The AcodeTrigger App : NO data shared with third parties, NO data collected.
This App doesn’t collect or share any user data.
This App doesn’t collect any user data.

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry
Categories: ,

Date Sheet

Model # AT10U3-86102
open cash drawer via USB & the AcodeTrigger App (Android)
Power USB Type-C, DC5V, <500mA
For Cash Drawer Type 12~24 Volts, <1.5A,
RJ12 (support RJ11),
default to fit cash drawer PIN 2,4 and PIN 4,5
Supported OS Android 8.0 above
Cable USB Type A to Type C (default) or USB Type C to Type C
Casing aluminium
Colour black
Weight 60g net without cable
Dimension 68x45x24mm DWH
  Remarks :
The AcodeTrigger App : NO data shared with third parties, NO data collected.
The AcodeTrigger App doesn’t collect or share any user data.
The AcodeTrigger App doesn’t collect any user data.
Specifications are subject to change without prior notice.

Installation Video

Video setup for AT10U3 reference

Demo Work Video



UnLock Smart Series Cash Drawer Trigger
AT10U3-86102 Series USB Cash Drawer Trigger + AcodeTrigger App (Android)

  • AT10U3-86102 USB Cash Drawer Trigger + Software : AcodeTrigger App (Android) to control cash drawer opening
  • input password to open cash drawer
  • support Android
  • open cash drawer with mobile phone or tablet
  • open cash drawer without EPOS system, operate as an independent unit
  • easy to setup and user friendly

FAQs

Yes, you can use AT10B3-86201 UnLock Smart Bluetooth Cash Drawer Trigger + AcodeTrigger Android App to open cash drawer when needed, such as taking cash payment or making a cash refund to customers. It is easy to setup, just connect the Bluetooth Drawer Trigger to your own mobile device, install and complete settings of the AcodeTrigger Android App. You can also setup a password to open cash drawer. The AcodeTrigger App is user friendly, it can operate as a standalone unit, be able to run independently, without EPOS.

  1. Compatible POS Receipt Printer Drawer port.
  2. Cash drawer RJ11 4 Pin Plug or RJ12 6 Pin Plug.
  3.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  4.  Pin 2 & 4 or Pin 4 & 5 is solenoid.

*** Epson and Star DK port compatible cash drawer.  If you have any questions, please contact us.
