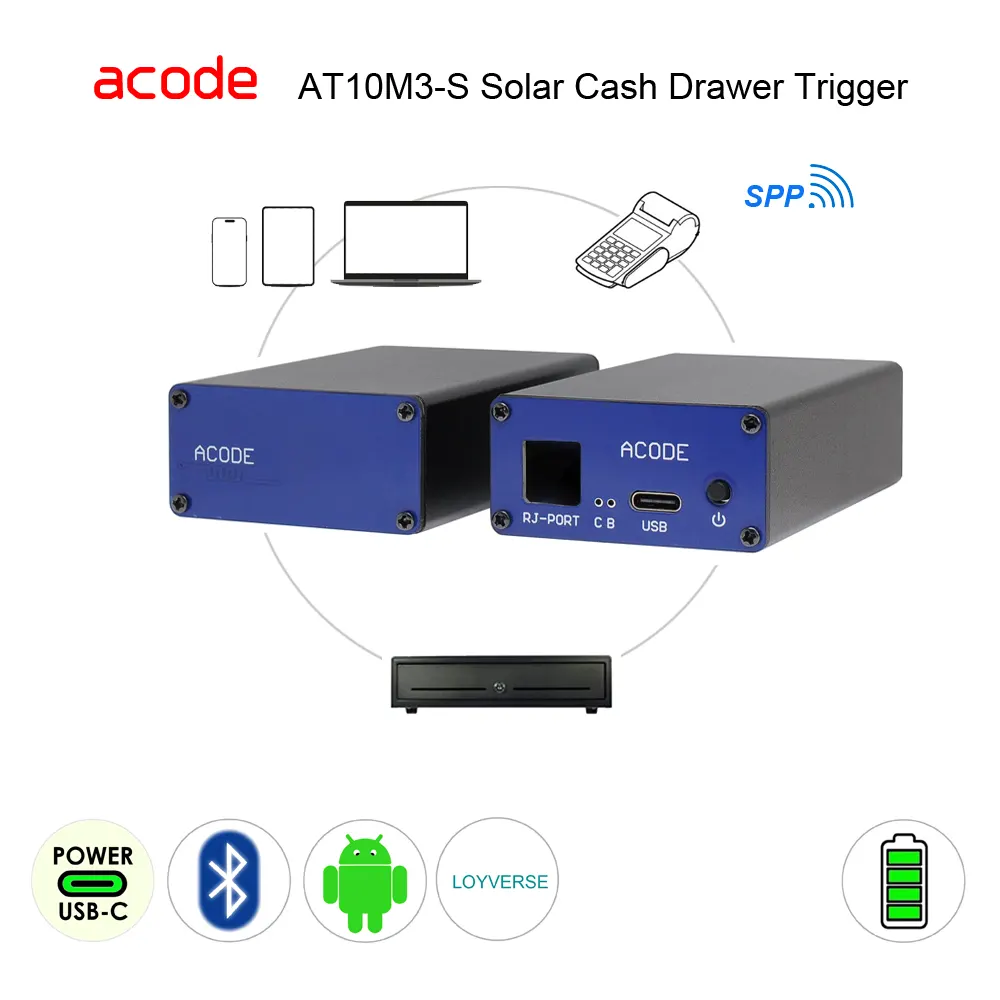

AT10M3 Battery Cash Drawer Trigger with Bluetooth and Loyverse
AT10M3 (85313-40000) Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POS Android - Image 2
AT10M3 (85313-40000) Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POS Android - Image 3
AT10M3Cash Drawer Trigger Battery

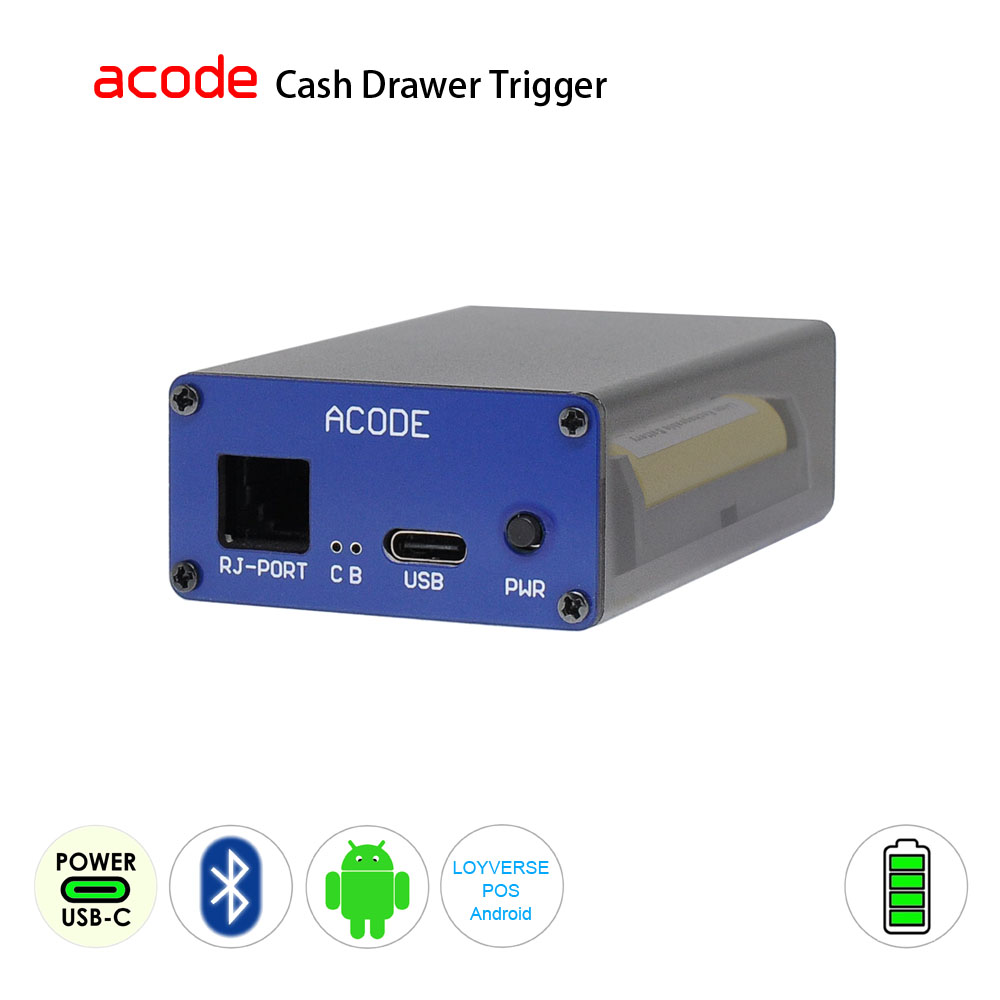

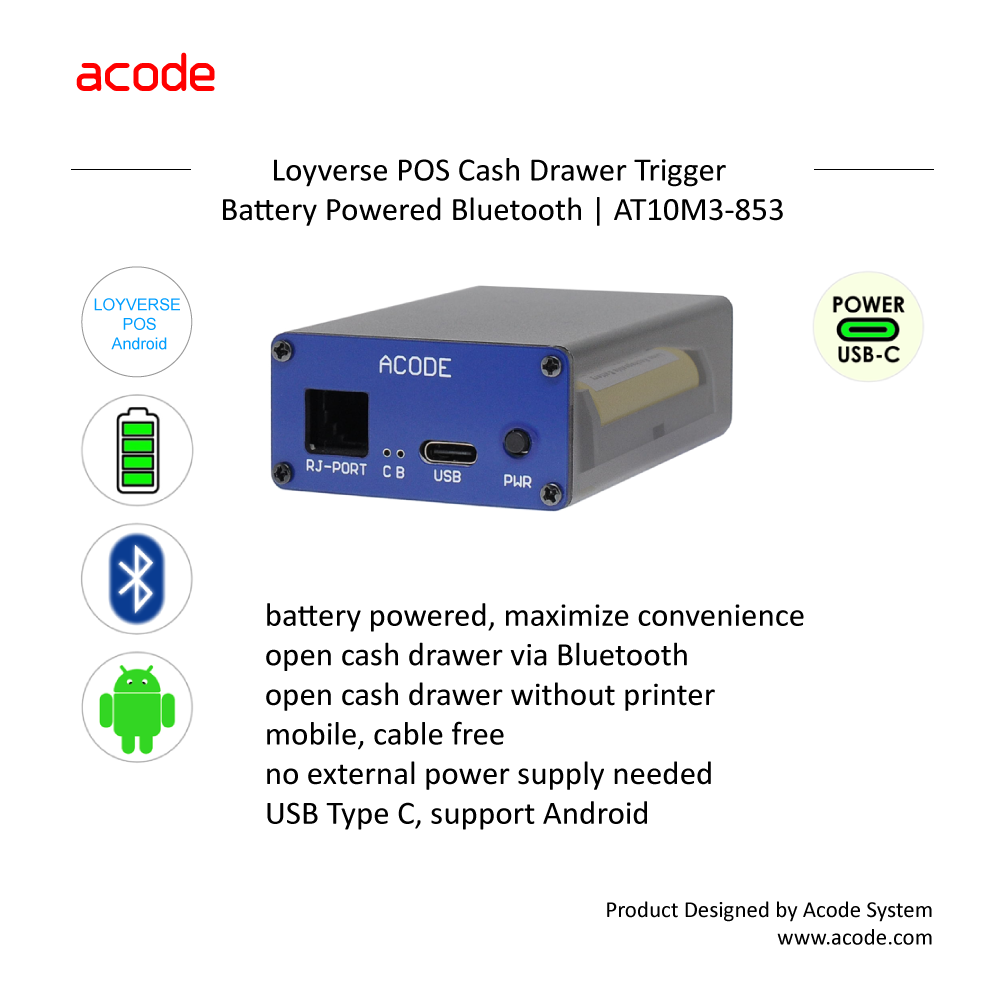

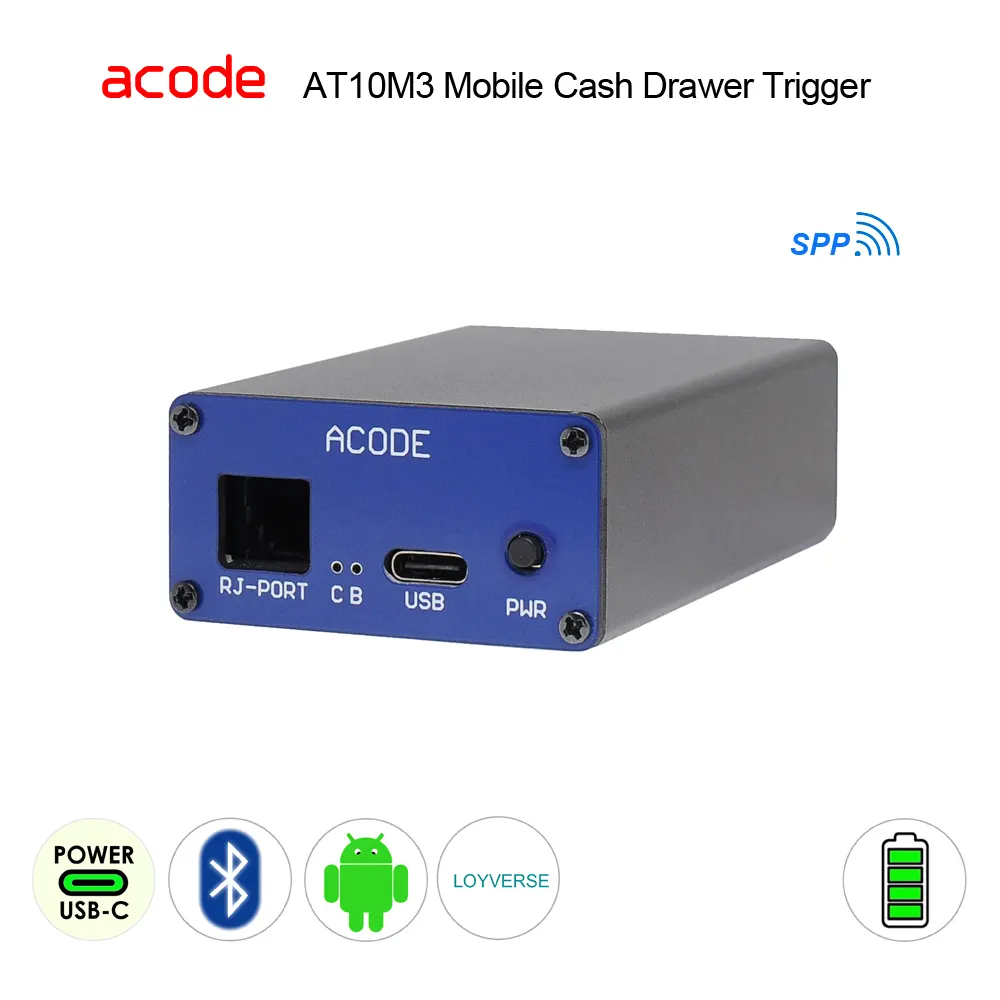

AT10M3 (85313-40000) Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POS Android

Mobile, Cable Free Bluetooth Cash Drawer Trigger for Loyverse POS

AT10M3 (85313-40000) Battery Operated Loyverse Bluetooth Cash Drawer Trigger

Battery Operated | Wireless | Bluetooth to open cash drawer in Loyverse POS

  • Real Mobile Cash Drawer Solution
  • open cash drawer via bluetooth connection in Loyverse POS Android
  • open cash drawer without receipt printer / receipt printing
  • AT10M3 Cash Drawer Trigger Compatible with 12–24V RJ11/RJ12 cash drawers. Standard RJ11/12 fit—works with all printer‑driven models.

Benefits :

  • Type-C Charging Support
  • Metal case size :  80 x 50 x 25 mm (DWH)
  • Battery-Powered –
    • No power outlet required : operates on a 14500 rechargeable battery, perfect for mobile or outdoor setups
    • Dual power options : : can be powered via 14500 battery or USB Type-C cable
    • Simultaneous charging and operation : dual-mode design, can recharge the battery via USB-C while still using the battery operated Bluetooth Trigger, no downtime during busy hours
      keeps your business running without interruption
    • Long lasting performance : supports 1,200 open/close cycles per fully charge (varies by battery and bluetooh module)
    • Replaceable battery : easy maintenance, replace 14500 rechargeable battery when needed
  • Wireless Bluetooth Connectivity –
    • Printer-free Operation : auto open cash drawer via bluetooth, no printer needed
    • Which POS systems is compatible ? supports Android based Loyverse POS System
    • How to pair via Bluetooth ? pair your Android device with the Battery Operated Bluetooth Trigger via bluetooth and auto open cash drawer in Loyverse POS System (Android)
  • Effortless Setup –
    • Cable-free Installation : No wiring or complex setup required
    • Compact & Portable : lightweight design makes relocation easy and fast

This product is compatible with normal Android devices. Please note that Android devices with specialized payment gateways may not function properly.

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry
Categories: , , ,

Data Sheet

Model # AT10M3 (85313-40000)
battery operated bluetooth cash drawer trigger for Loyverse POS
open cash drawer via bluetooth
Connectivity bluetooth serial, SPP pairing
Power USB Type-C, DC5V, <500mA
Supported OS Android
Power Input Battery Powered – Rechargeable Battery 14500
Battery Requirement : 14500/AA Li-ion [Lithium-ion]
Battery Cell Capacity Rated : 850mAh or above
Nominal Voltage : 3.6~3.7V
Full Charge Voltage : 4.2V
Battery Electronically Protected : Required
Rechargeable : Required
* Remarks : Batteries NOT Included.
* DO NOT use regular alkaline batteries.
For Cash Drawer Type 12~24 Volts, <1.5A, RJ12 (support RJ11), default to fit cash drawer PIN 2,4 and PIN 4,5
USB Cable USB Type A to Type C (default)
or
USB Type C to Type C
Housing aluminium
Colour black
Weight 95g net (without battery and cable)
Dimension 93x50x25mm DWH
Remarks :
Batteries NOT Included.
DO NOT use regular alkaline batteries.
Specifications are subject to change without prior notice.

Demo Video

Product Video AT10M3 Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POSWatch Video | Youtube

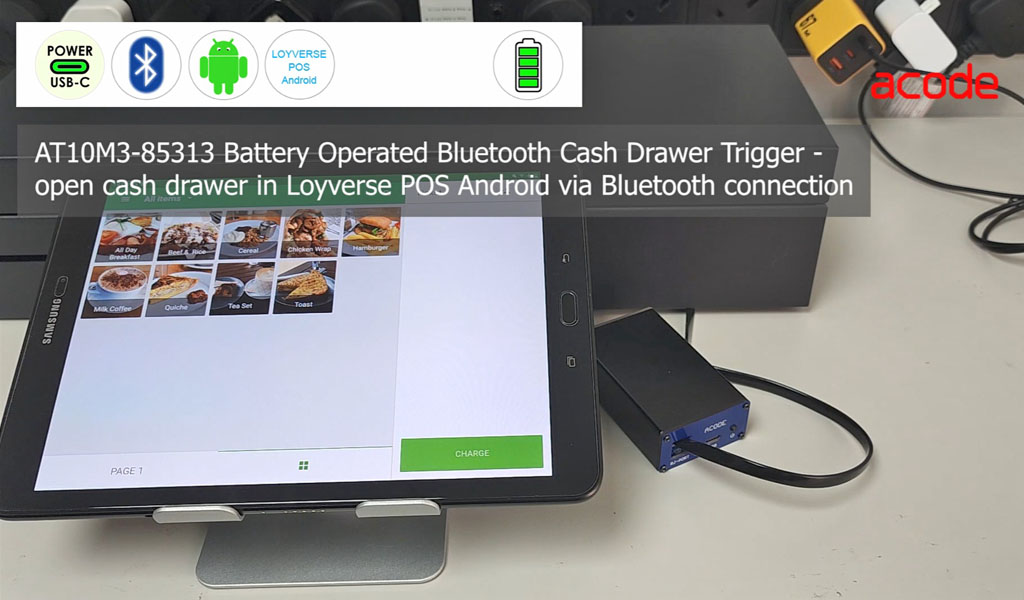

AT10M3-85313-40000 Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POS Android

battery operated
open cash drawer via bluetooth connection
greater mobility and convenience

* Additional technical details are available AT10M3 in the FAQ section

FAQs

AT10M3 Series Battery Operated Cash Drawer Trigger offers a smart, flexible solution for modern point-of-sale setups - especially in mobile or unconventional environments.
Key Advantages including :

Portability :can place your cash drawer anywhere without being tethered to a power outlet
Clutter-Free Workspace :No messy cables or printer connections — just a clean, efficient work table
Easy Installation :No wiring required, making setup quick and simple
Ideal for Mobile Use :Perfect for food trucks, market stalls, mall kiosks, and pop-up shops
Dual Power Options :Operates via rechargeable battery or USB-C cable, allowing simultaneous charging and operation
Reliable Performance :Supports 2,000–3,000 open/close cycles per charge
Uninterrupted Operation :Even if the battery runs low, you can recharge while continuing to use the drawer trigger

Special Design :
AT10M3 Series Battery Operated Cash Drawer Trigger is designed to resolve the problem of power bank shutting down automatically due to minimal power usage. Ensures stable operation for low power devices or Bluetooth transmission that might lose power unexpectedly.

The AT10M3 Battery Operated Cash Drawer Triggers compare to wired ones :

FeaturesBattery Operated Cash Drawer TriggerWired Cash Drawer Trigger
Power Sourcerechargeable battery / USB-C cabledirect POS / printer connection
Portabilityhighlow
Maintenancebattery monitoring & replacementminimal
Installationeasy, no wiringmay require setup / configuration
Use Casemobile/ outdoor setupsfixed retail environments
