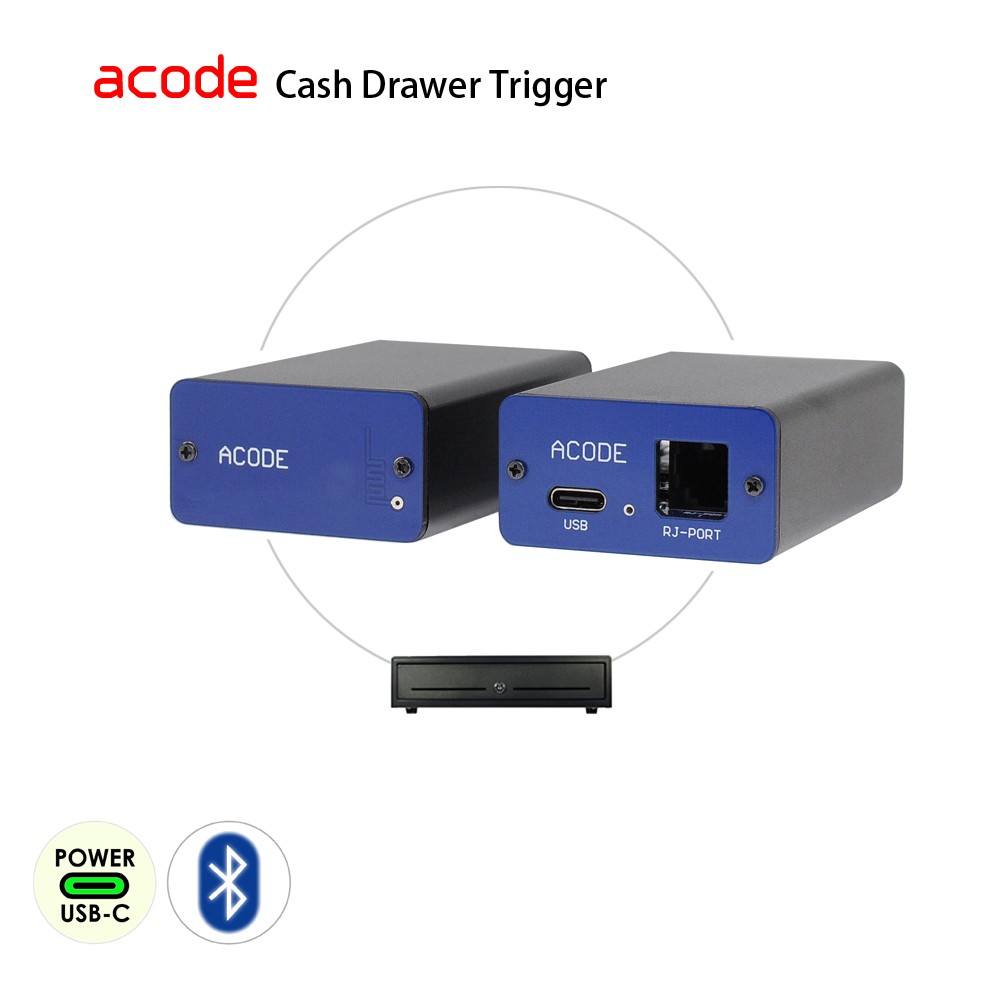

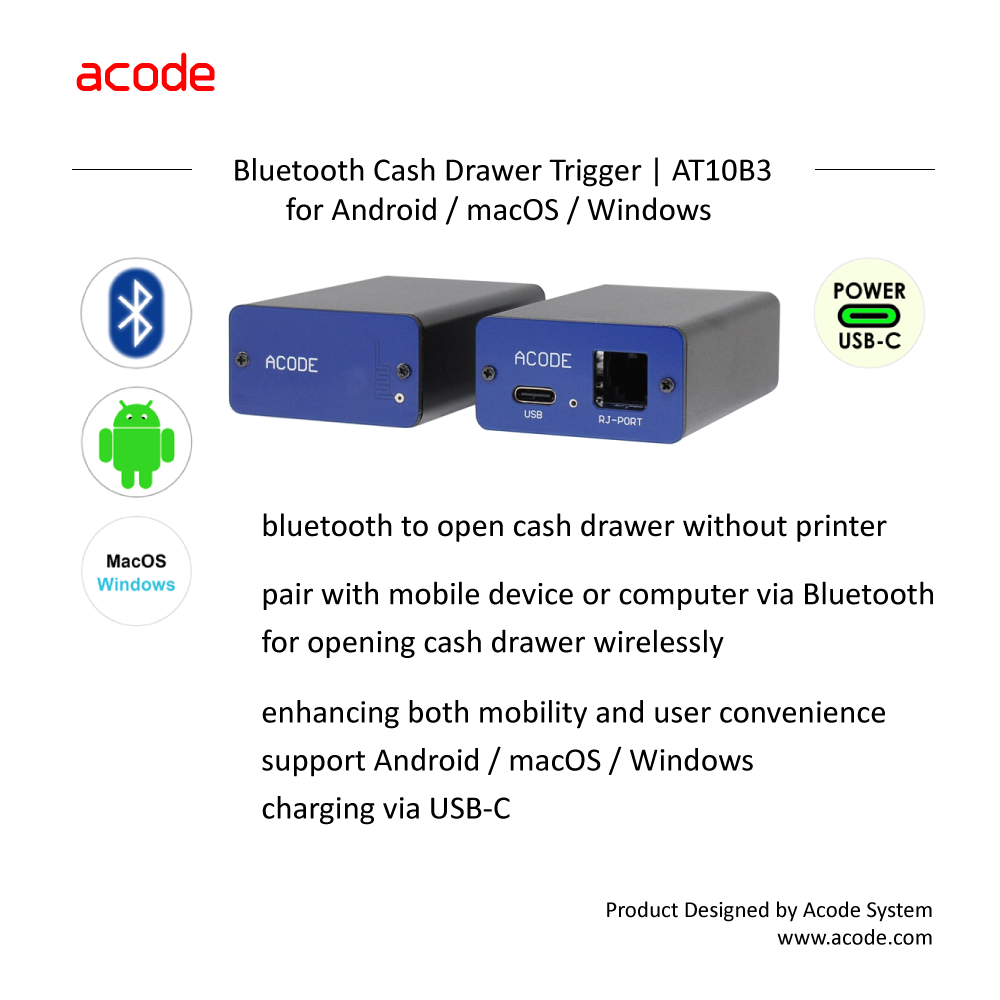

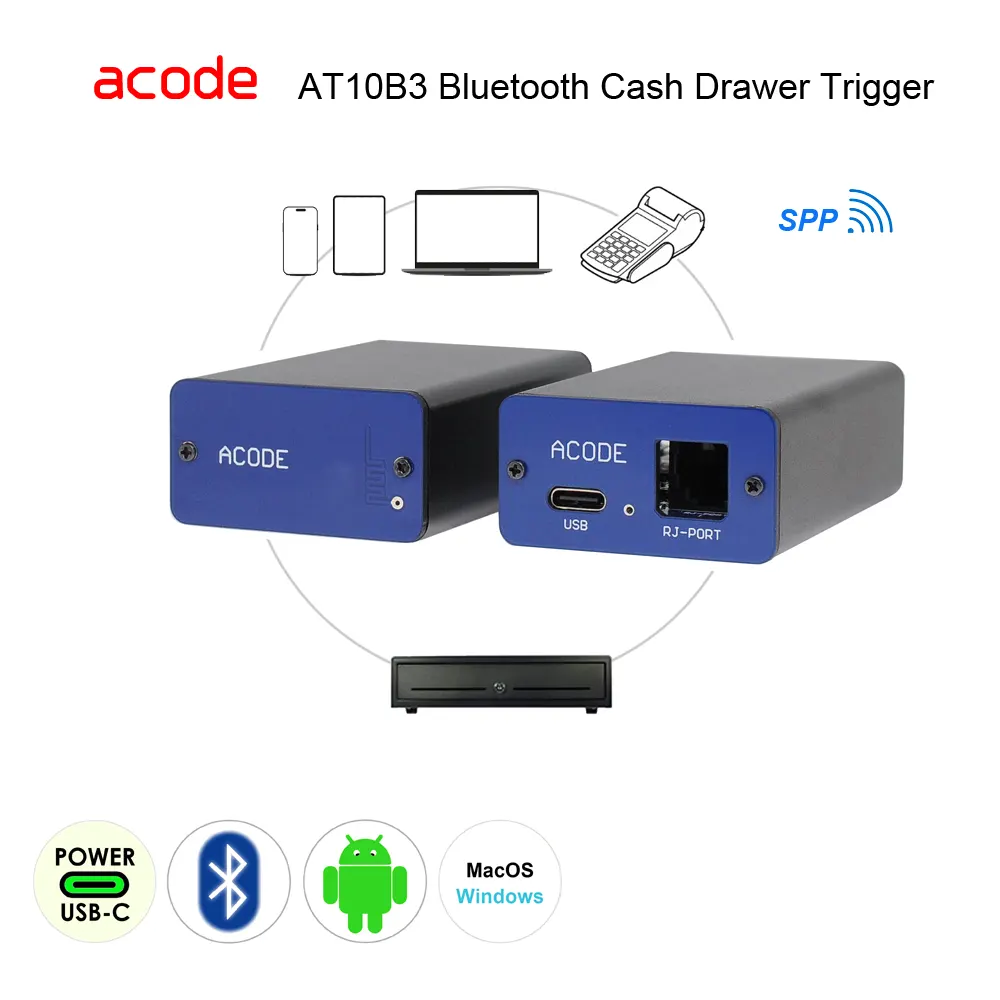

AT10B3 Bluetooth Cash Drawer Trigger Opens Cash Drawer Wirelessly Without Printer

AT10B3

Bluetooth, dedicated serial

open cash drawer wirelessly via Bluetooth connection

  • support Android, Windows 11, MacOS
  • SPP paring mode
  • accessing bluetooth device over virtual serial port, bluetooth to serial
  • dedicated serial, POS application send any data, the cash drawer will open
  • open cash drawer without receipt printer / receipt printing

Note : AT10B3 requires technical knowledge and system development.

  • Standard : AT10B3 Bluetooth Cash Drawer Trigger connects to POS printer driven cash drawer.
  • Optional : AT10B3 Plus II Version Bluetooth Cash Drawer Trigger connects cash drawer + 1 other device (such as weighing scale).

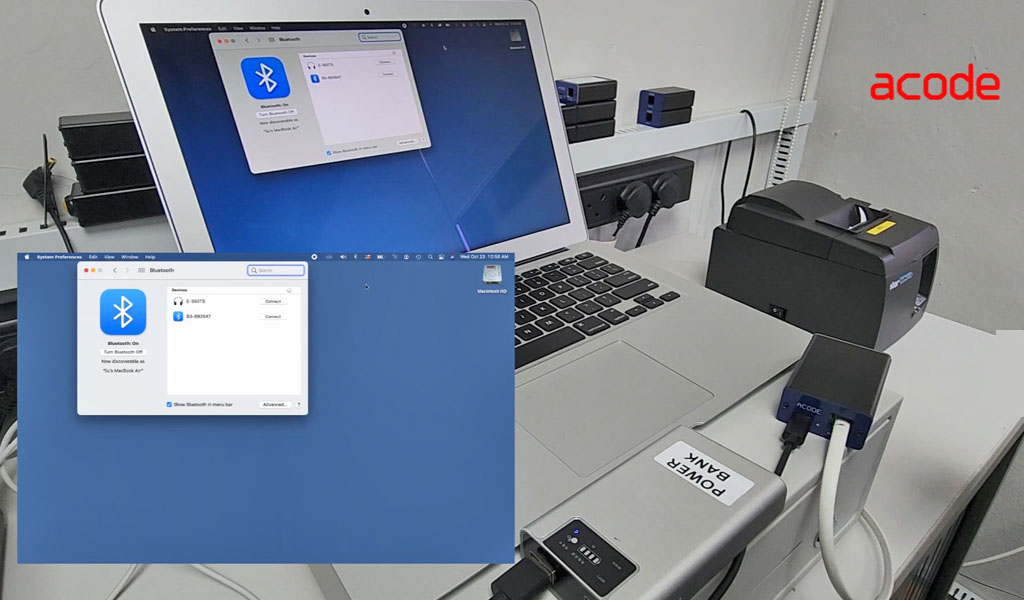

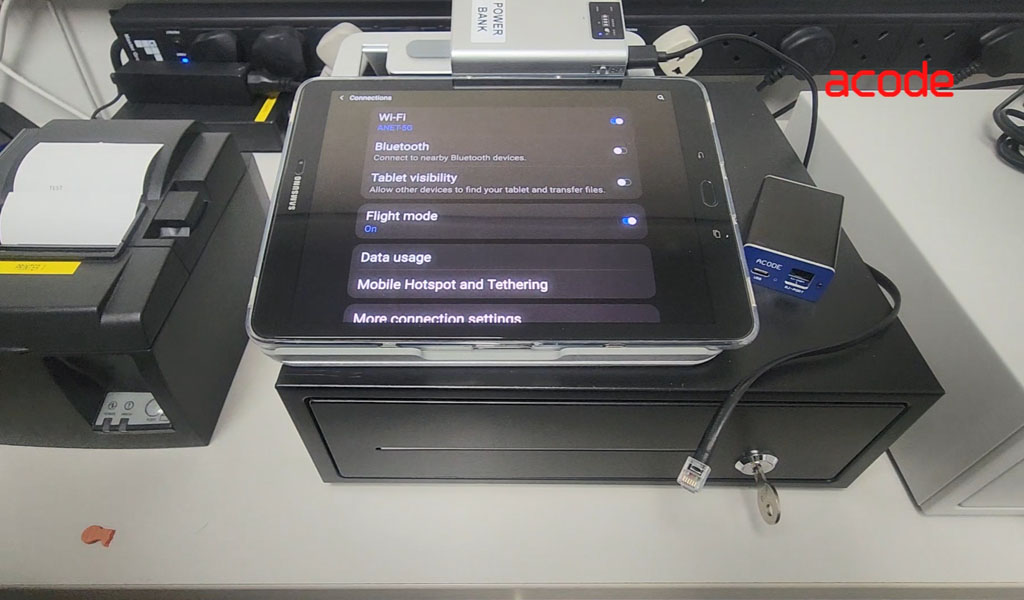

Video

AT10B3 Bluetooth Cash Drawer Trigger
support Android, Windows 11, MacOS
open cash drawer via bluetooth connection, without printer
USB Type-C powered, 5V DC

FAQs

  Any cable free solution to open cash drawer without making a sale or receipt printing ?

Yes, you can use AT10B3 Bluetooth Cash Drawer Trigger. It is designed for connectivity to tablets, desktops, and Android POS terminals.
USB Type-C provides a stable power supply and NO external power adapter needed, which greatly increase flexibility, portability and ease of use.
Note : AT10B3 Bluetooth Cash Drawer Trigger requires technical knowledge and technical/system development.

  How to use ACODE Bluetooth cash drawer trigger to detect cash drawer open/closed status?

ACODE 10B3 series 10B3121B Bluetooth cash drawer trigger plus can detect open and close status. The trigger plus module will automatically return the opening code, making it easy for programmers to solve OPEN/CLOSE issues. You can check the open/close status at any time. Important,  the cash drawer must match open/close specifications.  If you have any questions, please contact us.

  I need to install a utility or SDK to detect cash drawer open/close ?

No need.

ACODE USB and Bluetooth cash drawer trigger plus series detect cash drawer open/close status without any utility and SDK ,  (require IT knowledge and system development.)

  What types of cash drawers can match ACODE Bluetooth cash drawer trigger ?
  1.  Cash drawer RJ12 6 Pin Plug.
  2.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  3.  Pin 2 & 4 or Pin 4 & 5 is solenoid.

 If you have any questions, please contact us.

  What types of cash drawers can detect open/closed status and comply with the ACODE Bluetooth Cash Drawer Trigger specification?

Bluetooth Series Specifications :

  1.  Cash drawer RJ12 6 Pin Plug.
  2.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  3.  Pin 2 & 4 or Pin 4 & 5 is solenoid.
  4.  Pin 3 & 6 cash drawer sensor.
  5.  Cash drawer sensor type : normal open or normal close. (Need to specify model)

 If you have any questions, please contact us.

Date Sheet

Model # AT10B3
open cash drawer via bluetooth connection
Interface
Pairing Mode
bluetooth serial
SPP pairing
Power USB Type-C, DC5V, <500mA
For Cash Drawer Type 12~24 Volts, <1.5A,
RJ12 (support RJ11),
default to fit cash drawer PIN 2,4 and PIN 4,5
Supported OS Android 8.0 above, Windows 11, 10, 8.1, 7, MacOS
Cable USB Type A to Type C (default) or USB Type C to Type C
Casing aluminium
Colour black
Weight 60g net without cable
Dimension 70x45x24mm DWH
Specifications are subject to change without prior notice.
