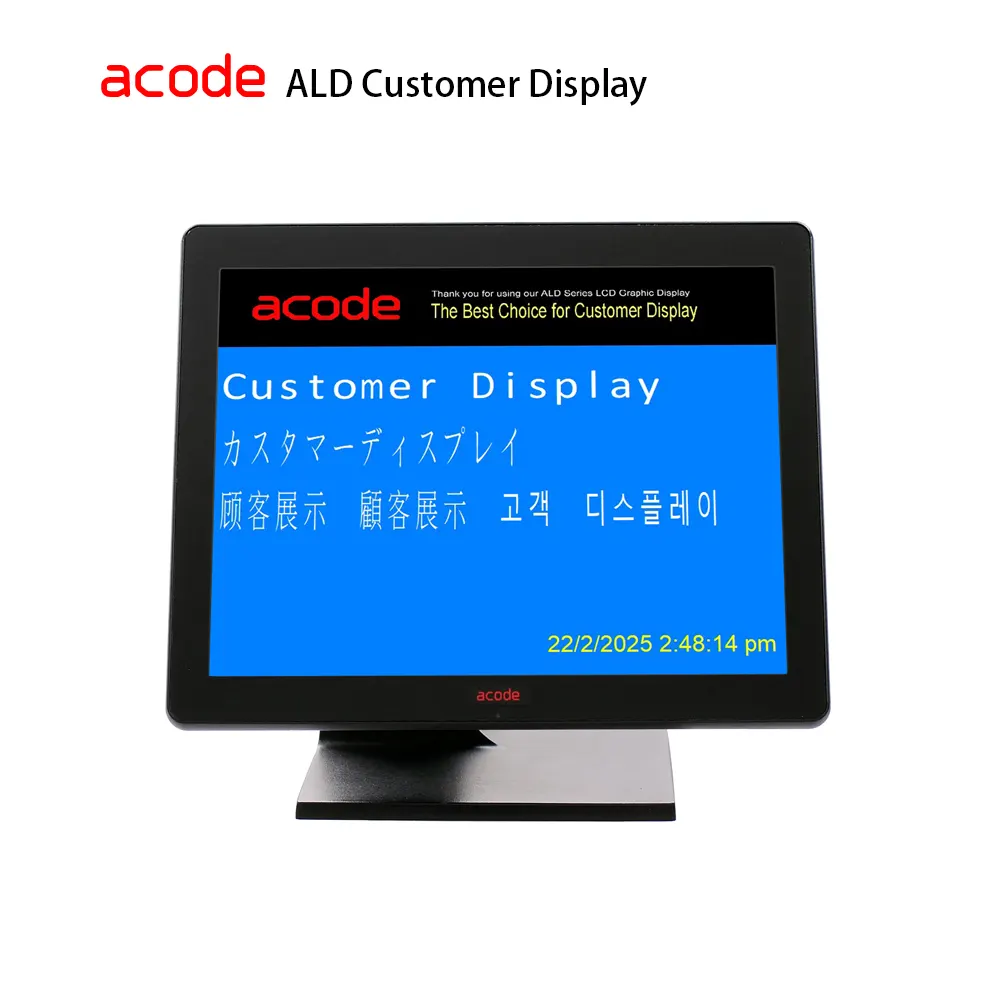

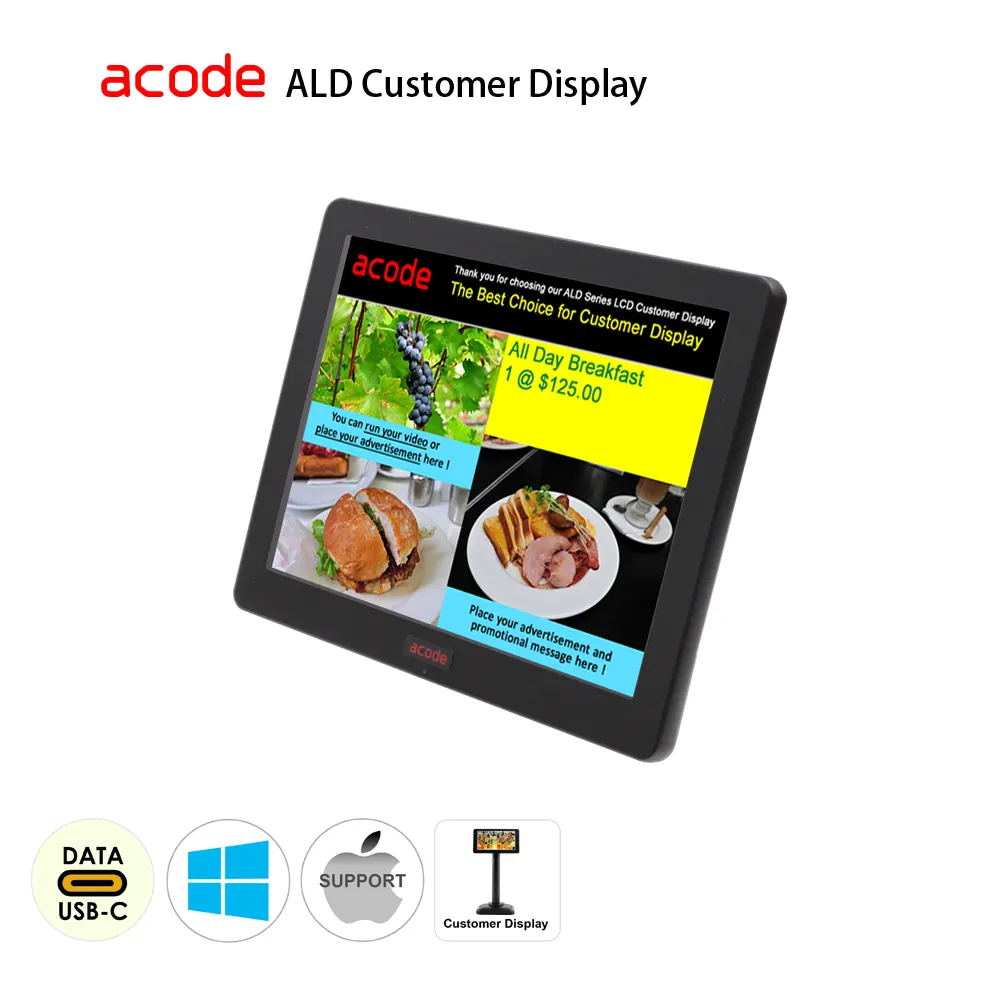

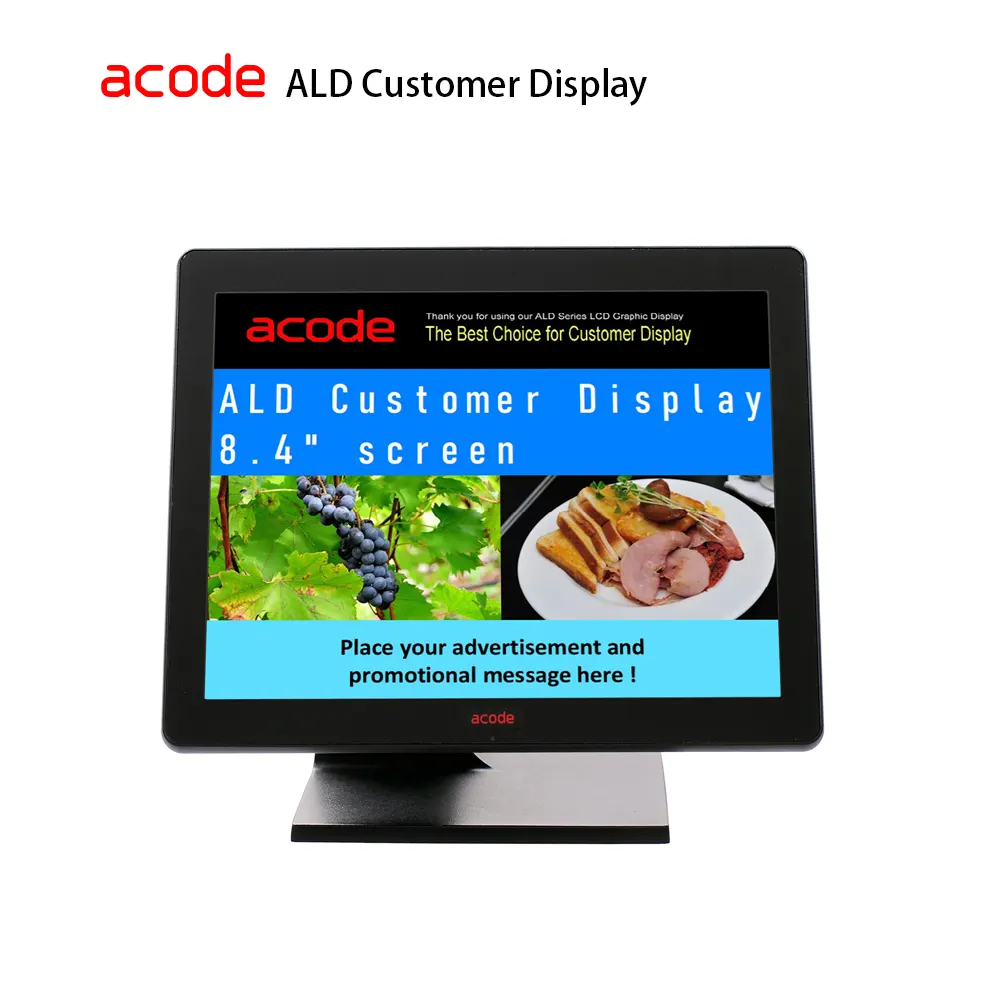

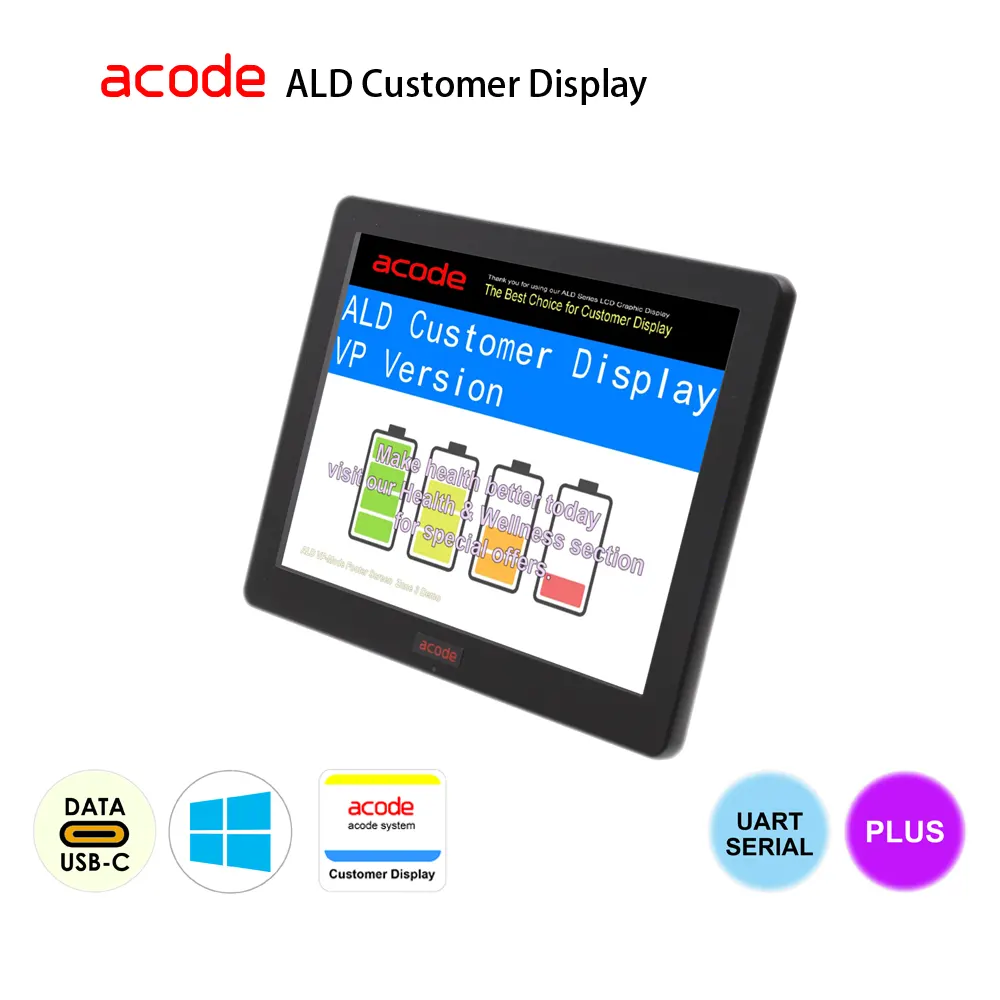

ALD-VP Multimedia LCD Customer Display

ALD-VP Multimedia LCD Customer Display

8″ Multimedia LCD Customer Display

ALD08UF-VP Virtual Display

replace your 2×20 VFD line display easily, in just 2 steps

Features : turn your VFD blue-green fluorescent display to a bright and colourful customer display effortlessly

  • VFD line display operation can be delivered to the ALD08UF-BP LCD automatically !
  • support Windows 10, USB interface
  • virtual COM
  • colour LCD display, resolution 800×600
  • USB port powered, NO external power supply needed
  • automatic Windows driver installation

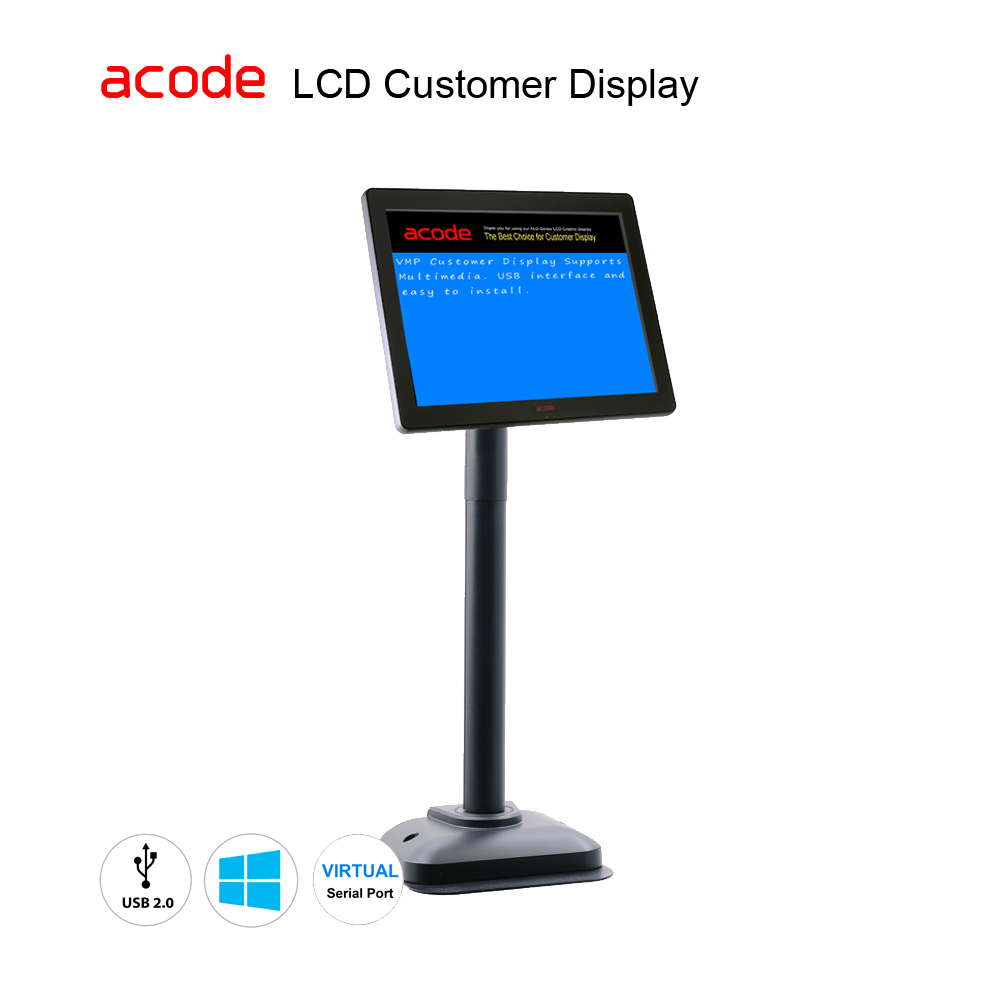

  • Pole and Base Unit stand (Optional)

Functions : instead of traditional blue-green fluorescent display of price information, you can now display –

  • display area x 3
  • free to modify font style, font colour and background colour to match your preferences
  • top : company logo or jpg image
  • middle : price information
  • bottom : date & time (system clock) or html or jpg image
  • when in idle : run slide show

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Payment : prices in USD, accept payment via PayPal
  • DO NOT ship to P.O. Box
Enquiry
Category:

ALD-VP Standard Version

Model # ALD – VP Standard Version

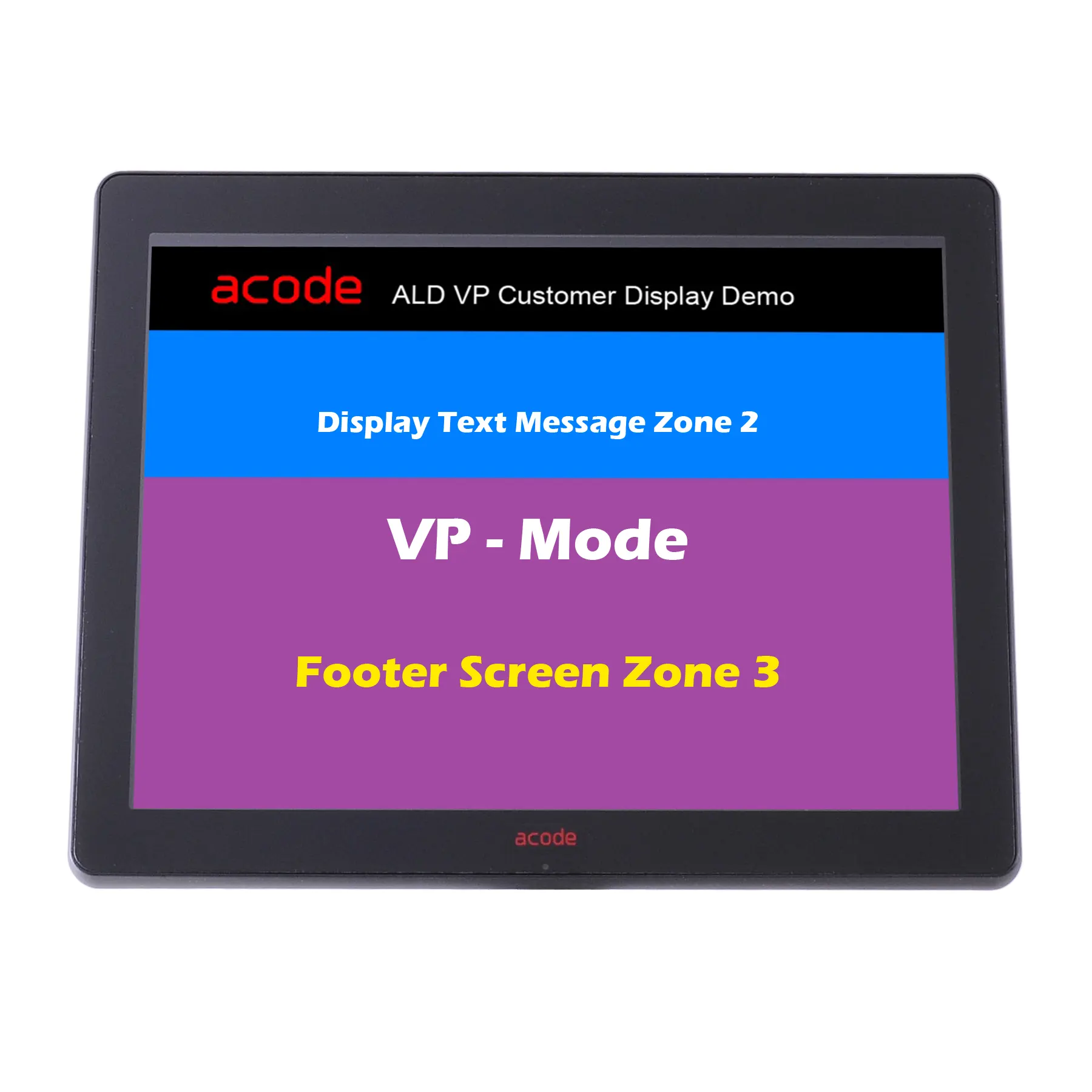

Display Zone zones x 3
Split Screen zone 1 top : jpg x 1
zone 2 middle : price information
zone 3 bottom : jpg x 1 OR system clock
idle : full screen slideshow
Display Setting change font colour
change font type
change background colour
change no. of rows
change no. of columns
run slideshow
Support OS Win/xp/7/10/11
Display Size 8″ ALD08UF
Interface USB, Virtual COM
Support Language uses the language specified in your system preferences as the user interface language
  Specifications are subject to change without prior notice.

Frequently Asked Questions – Customer Display



ALD08 Data Sheet

Model # ALD08 8″ LCD Customer Display
Display Size 8.4″ 4:3
Interface USB  Type-B
Resolution 800 x 600
Brightness 180 cd/m² (typ)
Contrast Ratio 600:1
Response Time 8 ms
Power DC5V ± 10%, USB Interface
Weight 0.68kg net
Dimension 202 x 163 x 34.5 mm
Temperature Operating : 0~40 degree C;
Storage : -10~50 degree C
Humidity Operating : 20%~80%
Storage : 10%~90%
Power Consumption USB : 2.5W
Wall Mount 75 x 75 mm VESA

Specifications are subject to change without prior notice.
