AT10M3-00313‑40000 Mobile Bluetooth Cash Drawer Trigger for Cross‑Platform
14500 Battery 3.7V

AT10M3-00313‑40000 Mobile Bluetooth Cash Drawer Trigger for Cross‑Platform

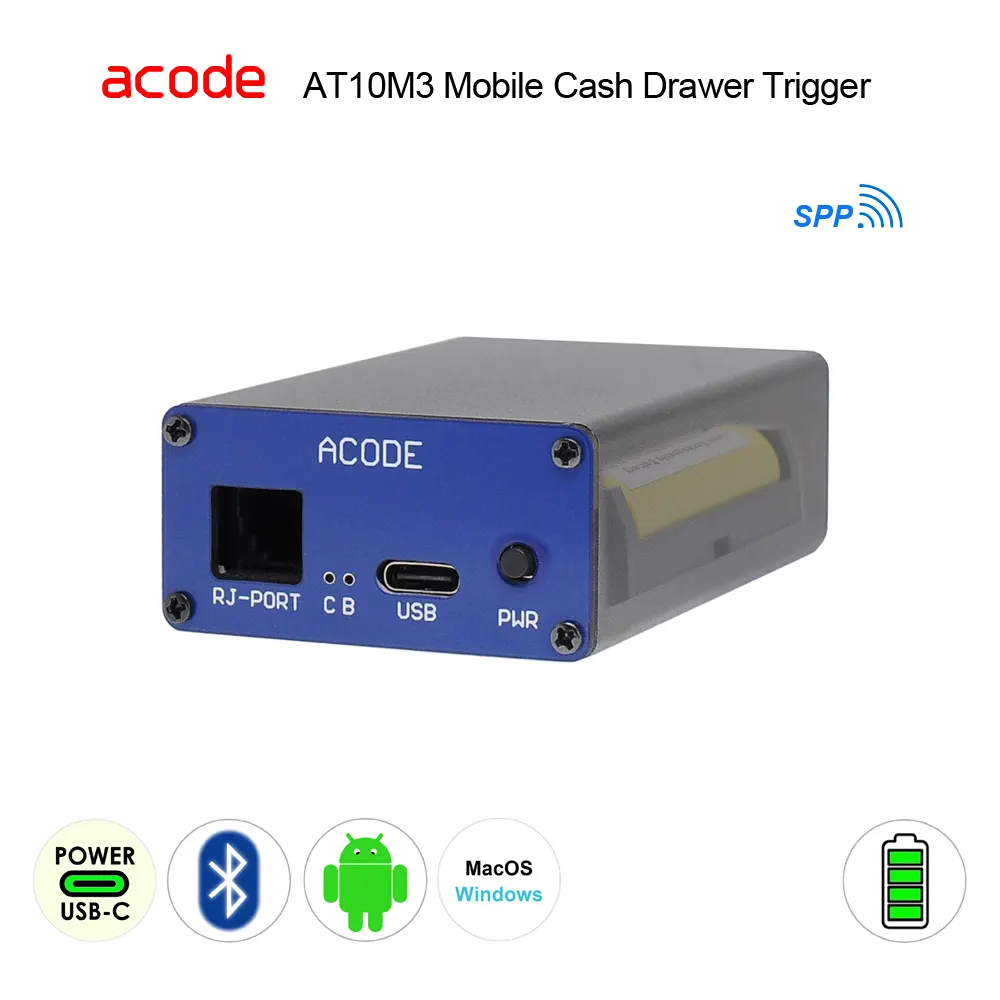

AT10M3 Series – Mobile Bluetooth Cash Drawer Trigger

  • Rechargeable with Bluetooth connectivity
  • Trigger Mode – Bluetooth any‑code drawer opening
  • Bluetooth SPP3.0 – Compatible with POS systems via COM port
  • Any-Code drawer opening
  • USB‑C powered with charging
  • Dual power ensures nonstop use
  • ≥1,200 cycles per full charge
  • Cordless with 14500 Li‑ion battery
  • Replaceable battery — easy maintenance
  • Developer‑friendly — no SDK required
  • OS support: Windows, Android, macOS
  • Compact metal case: 85 × 50 × 25 mm

* Perfect for food trucks, kiosks, and pop‑up shops with limited or inconsistent power access

  • Device Support: Compatible with standard Android, Windows and macOS. (Please verify your operating system version to ensure Bluetooth compatibility).
  • Important Note: Android devices equipped with specialized payment gateway systems may not function as expected

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Payment : prices in USD, accept payment via PayPal
  • DO NOT ship to P.O. Box
Enquiry
Categories: , ,

Data Sheet

AT10M3-00313‑40000 Cash Drawer Trigger

Model #  AT10M3 (00313-40000)
Function :  Battery-Powered Dedicated Bluetooth cash drawer trigger
Interface :
  • Type‑C Power Socket
  • Cash Drawer RJ12 Socket
Bluetooth Module :  SPP 3.0, Pairing mode
Trigger Mode :  Any-Code Activation
Power :  USB Type‑C, DC5V <500mA
For Cash Drawer Type :
  • 12–24 V DC, < 1.5 A
  • Support RJ11 or RJ12 Plug.
  • Default wiring: Pin 2 or Pin 5 with common Pin 4
OS Support :
  • Android 5.0 or above ; Windows 11, 10, 8.1, 7 ; macOS
    • Please verify your operating system version to ensure USB compatibility.
Battery (Option) : 🔋 Battery Specification :

  • Battery Requirement: 14500 rechargeable lithium‑ion
  • Capacity (Rated): 850 mAh or higher
  • Battery Type Options: Flat‑top (recommended) or button‑top
  • Battery Electronically Protected : Recommended
  • Nominal Voltage: 3.6V to 3.7V
  • Full Charge: sits around 4.2V
  • Rechargeable: Required
Cable:
  • USB Type-A to Type-C x1
Casing :  Aluminium
Colour :  Black
Weight :  110 g (net , without battery and cable) ±15%
Dimensions :  85 ×50× 25mm (D × W × H)
Remarks :
  • Batteries NOT Included.
  • Do not use regular alkaline batteries.
  • Do not use 14500 non‑rechargeable batteries.
 * Specifications are subject to change without prior notice.
