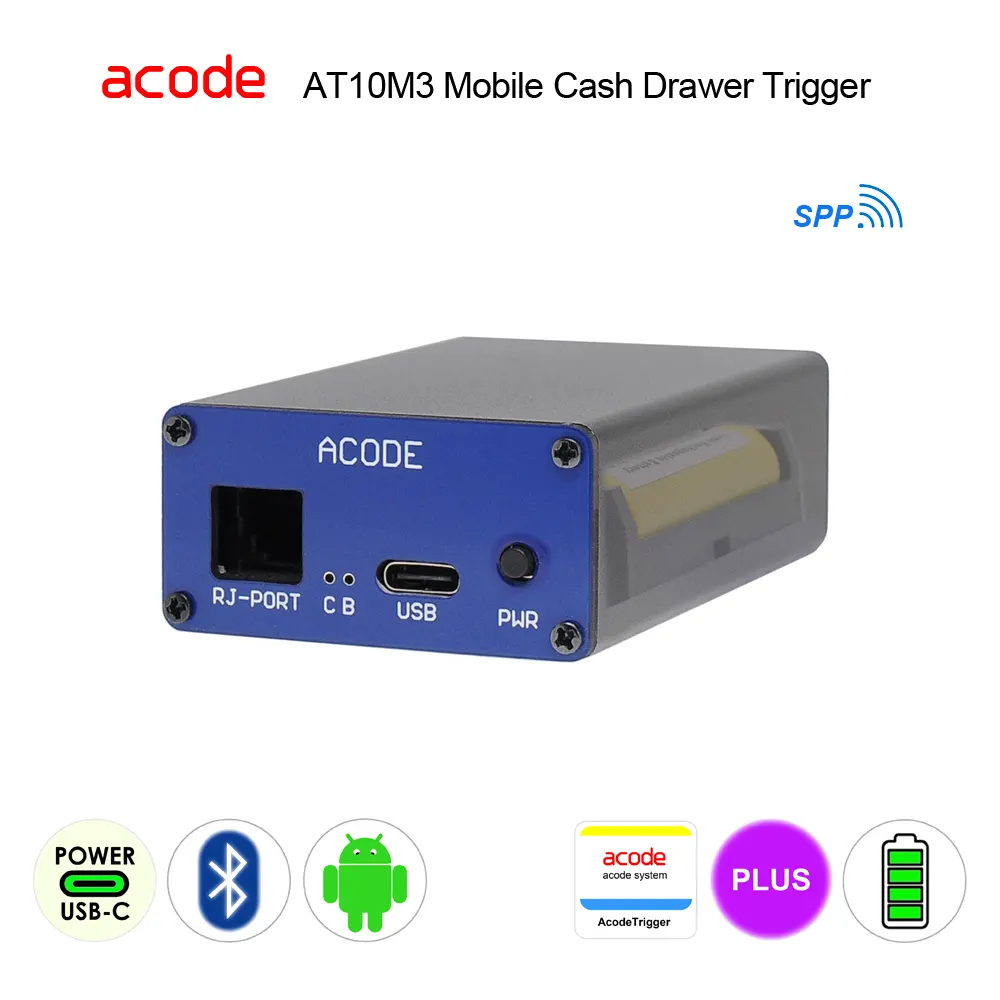

AcodeTigger – AT10M3‑86313‑43000 MOBILE Battery‑Powered Bluetooth Cash Drawer Trigger — Smart App and Code Control

AcodeTigger Series – AT10M3 Mobile Bluetooth Cash Drawer Trigger with Unlock Smart App (Code Triggered –  Android)

AT10M3‑86313‑43000 Bluetooth cash drawer trigger pairs with AcodeTrigger Unlock Smart App for printer‑free opening. Portable, battery‑powered, and equipped with stable power fit, built‑in pairing code, smart security code, and hardware opening (Code Triggered), reliable Unlock Smart App control without an ePOS system.

*This cash drawer trigger is designed with user‑friendly simplicity, offering quick and hassle‑free installation.

  • AcodeTrigger App works without printer or ePOS system.
  • Unlock Smart App enables secure drawer opening operation.
  • USB‑C powered design supports charging during active use.
  • Dual power options ensure nonstop reliable drawer operation.
  • ≥1,200 cycles supported per full battery charge.
  • Cordless design powered by 14500 lithium‑ion battery
  • Replaceable battery allows quick, simple user maintenance.
  • Easy installation — ready to use, no expertise needed.
  • Supports Android 8+ operating system compatibility fully.
  • Compact metal case size 90 × 50 × 25 mm.

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry
Categories: , , ,

Demo Video

This video for USB model reference only

AT10B3-816A Bluetooth Cash Drawer Trigger + AcodeTrigger App (Android)

  • Bluetooth Cash Drawer Trigger + AcodeTrigger App (Android) to control cash drawer opening
  • input password to open cash drawer
  • support Android
  • open cash drawer without EPOS system, operate as an independent unit
  • easy to setup and user friendly

Specifications

AT10M3 : Mobile Cash Drawe Trigger (Battery-Powered)

Part No.  AT10M3-86313-43000 Mobile Bluetooth (Code Triggered) Cash Drawe Trigger Specifications
Function :  Use the preset code to open the cash drawer via Bluetooth with the AcodeTrigger app on Android.
Interface :
  • USB Type‑C Socket — Power Input.
  • RJ12 Socket — Direct Cash Drawer Plug.
Bluetooth Module :
  SPP 3.0, Pairing mode
Operating Apps :  AcodeTigger-UnlockSmart
Trigger Mode :  Code-Triggered Unlock Smart
Power Input :  USB Type‑C, DC 5V <500mA
Power Adapter Requirements :
  Fixed DC 5V, ≥ 500 mA — single port power adapter required (not included)
Cash Drawer Requirements :
  • Cash Drawer Type – POS printer‑driven cash drawer.
  • Solenoid – 12–24 V DC, < 1.5 A.
  • Cash drawer plug interface – RJ11/RJ12 compatible.
  • Default Wiring – Pin 2 or Pin 5 with common Pin 4.
Battery Requirements :

🔋 Battery Specification :

  • Battery : 14500 rechargeable lithium‑ion
  • Capacity (Rated): 850 mAh or higher
  • Battery Type Options: Flat‑top (recommended) or button‑top
  • Battery Electronically Protected : Recommended
  • Nominal Voltage: 3.6V to 3.7V
  • Full Charge: sits around 4.2V
  • Rechargeable: Required
OS Support :
  • Android 8.0+
    (Please verify your operating system version to ensure USB compatibility.)
Cable :  USB Type-A  to Type-C x1
Casing :  Aluminium
Colour :  Black
Weight :  110 g (net , without battery and cable) ±15%
Dimensions :  85 ×50× 25mm (D × W × H)
Remarks :
  • The AT10M3 Series is shipped without a battery.
  • Do not use standard alkaline batteries.
  • Do not use non‑rechargeable 14500 batteries
   * Specifications are subject to change without prior notice.

Installation Video

Video setup for AT10U3 reference

FAQs

AT10M3 / AT10M3S Mobile Cash Drawer Trigger FAQs
