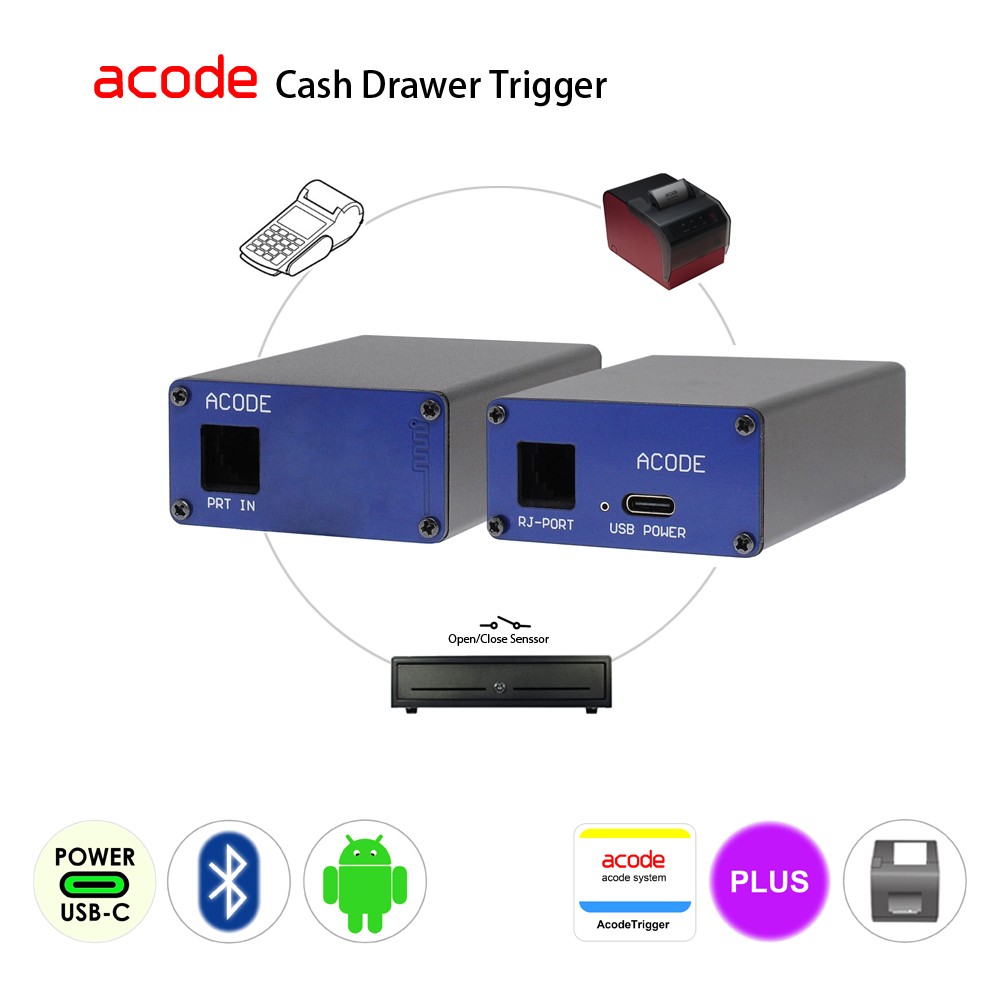

AT10ME (86511-43000) BUDDY UnLock Smart 2-in-1 Printer Bluetooth Cash Drawer Trigger with AcodeTrigger Android App

AT10ME (86511-43000) BUDDY UnLock Smart
2-in-1 Printer Bluetooth Cash Drawer Trigger with AcodeTrigger Android App

open cash drawer either through POS printer or via Bluetooth using the AcodeTrigger App Android

  • Type-C Power Cash Drawer Trigger
  • Metal case size :  80 x 50 x 25 mm (DWH)
  • Dual Trigger Mode : versatile 2-in-1 cash drawer trigger to open cash drawer with POS printer via DK port or with the AcodeTrigger App Android via bluetooth connection with your android mobile device
    • Two ways to Open :
      1) Receipt Printer – open cash drawer after printing a receipt, for traditional POS setups
      2) Bluetooth App Control – open cash drawer via the AcodeTrigger Android App without printing – perfect for refunds, No Sale or storing merchant copies
    • Operational Versatility : supports both transactional and non-transactional cash drawer openings
    • Password/PIN to open cash drawer : via bluetooth connectivity, the AcodeTrigger App requires a password to trigger open cash drawer, reducing unauthorized access

Notes :

  • AT10ME Cash Drawer Trigger Compatible with 12–24V RJ11/RJ12 cash drawers. Standard RJ11/12 fit—works with all printer‑driven models.
  • The AcodeTrigger App Android : NO data shared with third parties, NO data collected.
  • This App doesn’t collect or share any user data.

This product is compatible with normal Android devices. Please note that Android devices with specialized payment gateways may not function properly.


Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry

Data Sheet

Model #  AT10ME (86511-43000)
Function :  Opens cash drawer via Bluetooth with AcodeTigger App or Pos Printer

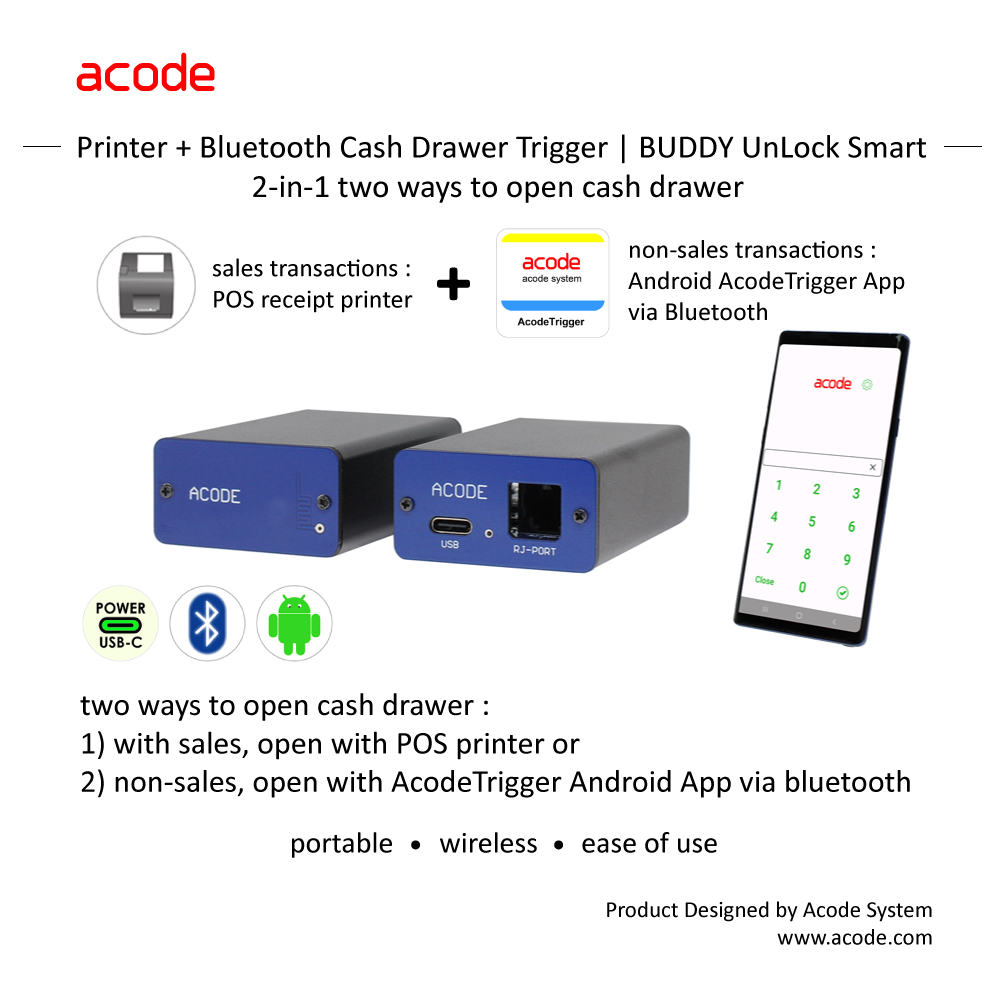

2-in-1 Printer Bluetooth Cash Drawer Trigger provides two ways to open cash drawer :

  • with sales transactions : open cash drawer with POS receipt printer/receipt printing
  • without sales transaction : open cash drawer with Unlock SmartApp via bluetooth
Interface :
  • USB Type‑C Power Socket
  • RJ12 Socket – for POS Printer DK port Socket
  • RJ12 Socket – for Cash Drawer Socket
Bluetooth Module :  SPP pairing mode
Operating Apps :  AcodeTigger-UnlockSmart
Supported OS  Android 8.0 above
Trigger Mode :  POS Printer or AcodeTrigger Unlock Smart App Activation
Power :  USB Type-C, DC5V, <500mA
For Cash Drawer Type :
  • 12–24 V DC, < 1.5 A
  • Support RJ11 or RJ12 Plug
  • Default wiring: Pin 2 or Pin 5 with common Pin 4
Cables :
  • USB Type A to Type C  power cable x 1
  • POS Printer DK port to AT10Me RJ-12 Socket x 1
Casing :  Aluminium
Colour :  Black
Weight :  82 g net  (without cable)
Dimensions :  95 × 45× 27 mm (D × W × H)
Remarks :
  • The AcodeTrigger App : NO data shared with third parties, NO data collected.
  • The AcodeTrigger App doesn’t collect or share any user data.
  • The AcodeTrigger App doesn’t collect any user data.
 * Specifications are subject to change without prior notice.



Demo Video

BUDDY UnLock Smart Series
2-in-1 Printer Bluetooth Cash Drawer Trigger

provides 2 ways to open cash drawer –
from Receipt Printer or AcodeTrigger Android App via Bluetooth:
1) with sales : open with receipt printer / after receipt printing OR
2) without sales transaction : open with the AcodeTrigger App Android via bluetooth connection

Installaton Video

Download Utility
