AT10ME BUDDY Series – 2-in-1 Cash Drawer Trigger – Bluetooth auto switch POS Printer

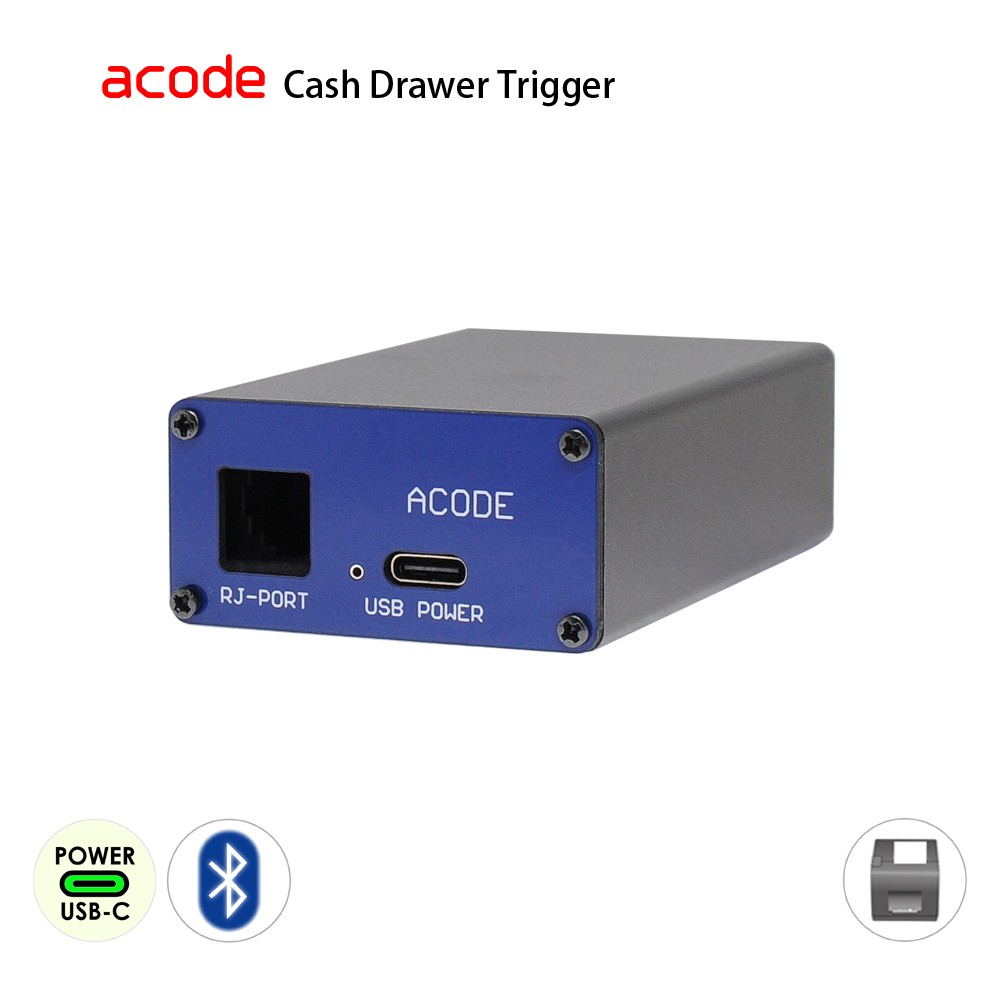

The AT10ME‑00511‑40000 Buddy Bluetooth Cash Drawer Trigger offers dual operation via Bluetooth App or POS printer. With Bluetooth SPP3.0 stability, USB‑C power, and Android 8+ support, it ensures secure drawer opening, compact design, and effortless installation for modern POS systems.

* This cash drawer trigger is designed with user‑friendly simplicity, offering quick and hassle‑free installation.

  • Bluetooth Apps – Simple Cash Drawer Control.
  • Smart Bluetooth Drawer Utilities for Handheld Terminals.
  • Developer‑Ready Bluetooth Solutions.
  • Reliable Bluetooth Drawer Control, Easy Integration.
  • Bluetooth SPP3.0 COM trigger ensures stability.
  • Easy installation process, quick setup assured.
  • Android 8+ operating system fully supported.
  • Compact metal case, 90×50×25 mm.

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry
Categories: , ,

Demo Video

Product Video BUDDY AT10ME UnLock Printer Bluetooth Cash Drawer TriggerWatch Video | Youtube

BUDDY UnLock Smart Series
2-in-1 Printer Bluetooth Cash Drawer Trigger
provides 2 ways to open cash drawer –
from Receipt Printer or AcodeTrigger Android App via Bluetooth:
1) with sales : open with receipt printer / after receipt printing OR
2) without sales transaction : open with the AcodeTrigger App Android via bluetooth connection

Specifications

AT10ME : Buddy Cash Drawer Trigger

Model #  AT10ME-00511-40000 Buddy Bluetooth Cash Drawer Trigger Specifications
Function :

 Opens cash drawer via Bluetooth App or Pos Printer

 2-in-1 Printer Bluetooth Cash Drawer Trigger provides 2 ways to open cash drawer :

  1. with sales transactions : open cash drawer with POS receipt printer/receipt printing
  2. without sales transaction : open cash drawer with ePOS App via bluetooth
Interface :
  • USB Type‑C Socket — Power Input
  • RJ12 Socket — POS Printer Cash Drawer Link
  • RJ12 Socket — Direct Cash Drawer Plug
Bluetooth Module :  SPP 3.0, Pairing mode
Trigger Mode :
  • POS Printer DK-Port or Bluetooth Dedicated Any-Code Activation
Supported OS :  Android 8.0+
(Please verify your operating system version to ensure Bluetooth compatibility)
Power Input :  USB Type-C, DC5V, <500mA
Power Adapter Requirements :  Fixed DC 5V, ≥ 500 mA — single port power adapter required (not included)
Cash Drawer Requirements :
  • Cash Drawer Type – POS printer‑driven cash drawer.
  • Solenoid – 12–24 V DC, < 1.5 A.
  • Cash drawer plug interface – RJ11/RJ12 compatible.
  • Default Wiring – Pin 2 or Pin 5 with common Pin 4.
Cables :
  • USB Type-A to Type-C  power cable x1
  • POS Printer DK port to AT10Me RJ-12 Socket x1
Casing :  Aluminium
Colour :  Black
Weight :  82 g (net , without cable) ±15%
Dimensions :  85 × 45× 27 mm (D × W × H)
   * Specifications are subject to change without prior notice.
