AT10M3 Battery Cash Drawer Trigger with Bluetooth and Loyverse
AT10M3-85313-43000 Mobile Bluetooth Cash Drawer Trigger — Battery‑operated Code-Triggered for Loyverse POS - Image 2
AT10M3-85313-43000 Mobile Bluetooth Cash Drawer Trigger — Battery‑operated Code-Triggered for Loyverse POS - Image 3
AT10M3Cash Drawer Trigger Battery

AT10M3-85313-43000 Mobile Bluetooth Cash Drawer Trigger — Battery‑operated Code-Triggered for Loyverse POS

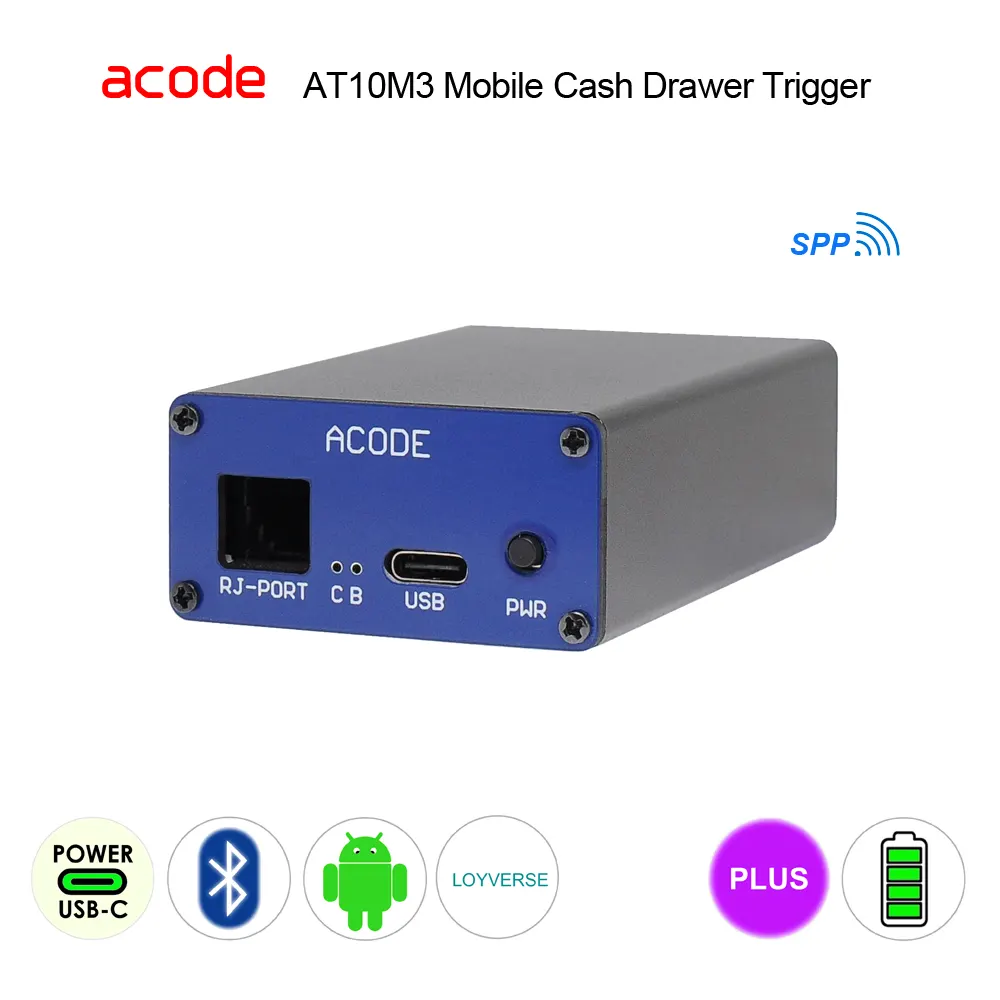

AT10M3 Mobile Bluetooth Cash Drawer Trigger — Battery‑Operated Code-Trigger for Loyverse POS

AT10M3‑85313‑43000 Bluetooth cash drawer trigger pairs with Loyverse POS App, offering printer‑free and code‑trigger opening. Portable, battery‑powered design ensures reliable wireless POS control and uninterrupted operation during unstable electrical supply.

# Loyverse user easy configuration, smooth operation.

  • Cash drawer opens via Bluetooth Code-Trigger using Loyverse POS
  • Interface Type‑C provides DC 5V input power with charging
  • Secure Bluetooth SPP3.0 COM trigger; PIN‑protected access
  • Dual power options ensure nonstop drawer operation
  • Supports over 1,000 cycles per complete battery charge
  • Supports 12–24V RJ11/12 POS printer‑driven cash drawers
  • Replaceable battery design enables quick user maintenance
  • Compact aluminium case, durable 85×50×25 mm



Compatibility Notice:

  • Device Support: Compatible with standard Android devices.
  • Important Note: Android devices equipped with specialized payment gateway systems may experience limited functionality.

Additional :

  • International delivery ships worldwide by Air or Surface.
  • Pricing: All catalog product prices shown in USD.
  • Restriction: Shipments excluded for P.O. Box addresses.
Enquiry
SKU: AT10M3-85313-43000-8778 Categories: , , ,

Video

Product Video AT10M3 Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POSWatch Video | Youtube
AT10M3-85313-40000 Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POS Android

battery operated
open cash drawer via bluetooth connection
greater mobility and convenience

* Additional technical details are available AT10M3 in the FAQ section

Specifications

AT10M3 Mobile Bluetooth Cash Drawer Trigger

Model #  AT10M3 85313-43000 Cash Drawer Trigger Specifications
Function :
  • Battery-Powered opens cash drawer via Bluetooth code-triggered  with Loyverse POS
Interface :
  • USB Type‑C Socket — Power Input.
  • RJ12 Socket — Direct Cash Drawer Plug.
Bluetooth Module :
  • SPP 3.0, Pairing mode
Trigger Mode :
  • Loyverse POS
Power Input :
  • USB Type‑C, DC 5V <500mA
Power Adapter Requirements :
Cash Drawer Requirements :
  • Cash Drawer Type – POS printer‑driven cash drawer.
  • Solenoid – 12–24 V DC, < 1.5 A.
  • Cash drawer plug interface – RJ11/RJ12 compatible.
  • Default Wiring – Pin 2 or Pin 5 with common Pin 4.
Battery Requirements :

🔋 Battery Specification :

  • Battery : 14500 rechargeable lithium‑ion
  • Capacity (Rated): 850 mAh or higher
  • Battery Type Options: Flat‑top (recommended) or button‑top
  • Battery Electronically Protected : Recommended
  • Nominal Voltage: 3.6V to 3.7V
  • Full Charge: sits around 4.2V
  • Rechargeable: Required
OS Support :
  • Android 8.0+
    • Please verify your operating system version to ensure Bluetooth compatibility
Cable:
  • USB Type-A to Type-C Power Cable × 1 (Default Cable Length: Approx. 100 cm standard)
Casing :
  • Aluminium
Colour :
  • Black
Weight :
  • 110 g (net , without battery and cable) ±15%
Dimensions :
  • 85 ×50× 25mm (D × W × H)
Remarks :
  • The AT10M3 Series is shipped without a battery.
  • Do not use standard alkaline batteries.
  • Do not use non‑rechargeable 14500 batteries

  • Specifications are subject to change without notice.
