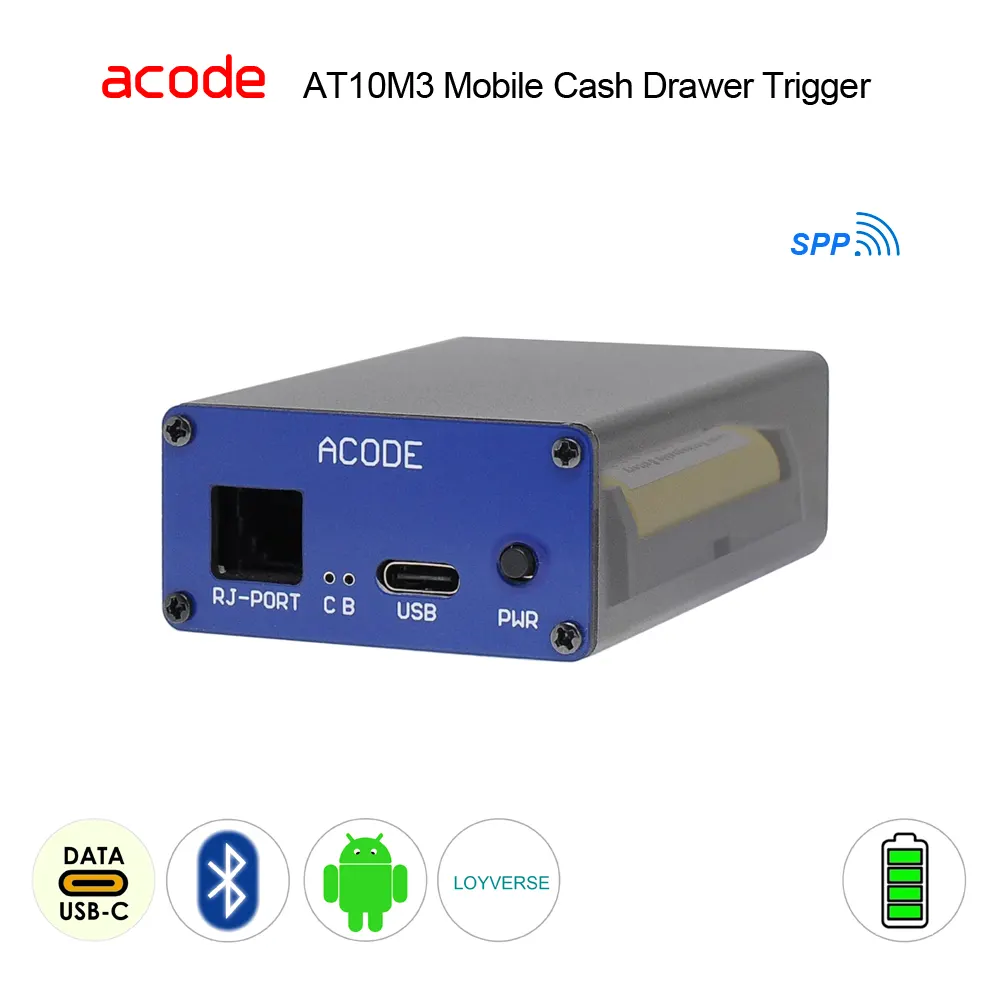

AT10M3 86313-40000 Mobile Battery‑Powered Bluetooth Cash Drawer Trigger & AcodeTrigger Unlock Smart App
AT10M3 Battery Cash Drawer Trigger with Bluetooth and AcodeTrigger Apps

AT10M3 86313-40000 Mobile Battery‑Powered Bluetooth Cash Drawer Trigger & AcodeTrigger Unlock Smart App

AT10M3 Series – Bluetooth Cash Drawer Trigger with Unlock Smart App (Android)

AT10M3‑86313‑40000 Bluetooth cash drawer trigger pairs with AcodeTrigger Unlock Smart App for printer‑free opening. Portable, battery‑powered, and equipped with M3 stable power fit, built‑in pairing code. Unlock Smart App control without an EPOS system.

* End‑user easy‑to‑handle installation ensures quick setup and smooth operation.

  • AcodeTrigger App without printer or EPOS system
  • Bluetooth SPP3.0 — COM Port Trigger
  • Unlock Smart App drawer opening
  • USB‑C powered with charging
  • Dual power ensures nonstop use
  • ≥1,200 cycles per full charge
  • Cordless with 14500 Li‑ion battery
  • Replaceable battery — easy maintenance
  • Easy install — no wiring/software
  • Support Android 8+
  • Compact metal case: 90 × 50 × 25 mm

* Perfect for food trucks, kiosks, and pop‑up shops with limited or inconsistent power access

Privacy & Compatibility Notice:

  • Data Protection: The AcodeTrigger App does not collect or share any user information.
  • Device Support: Compatible with standard Android devices.
  • Important Note: Android devices equipped with specialized payment gateway systems may experience limited functionality

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry
Categories: ,

Data Sheet

AT10M3-86313‑40000 Cash Drawer Trigger

Model # AT10M3 (86313-40000)
Function :  Battery operated opens cash drawer via Bluetooth with Unlock Smart App
Interface :
  • USB Type‑C Socket — Power Supply
  • RJ12 Socket — Cash Drawer Plug Connection
Bluetooth Module :  SPP 3.0, Pairing mode
Operating Apps :  AcodeTigger-UnlockSmart
Trigger Mode :  Unlock Smart Activation
Power Input :  USB Type‑C, DC5V <500mA
Power Adapter Requirements :
  Fixed DC 5V, 500–1000 mA (single port power adapter recommended)
Battery Requirements : 🔋 Battery Specification :

  • Battery : 14500 rechargeable lithium‑ion
  • Capacity (Rated): 850 mAh or higher
  • Battery Type Options: Flat‑top (recommended) or button‑top
  • Battery Electronically Protected : Recommended
  • Nominal Voltage: 3.6V to 3.7V
  • Full Charge: sits around 4.2V
  • Rechargeable: Required
Cash Drawer Requirements :
  • Solenoid: 12–24 V DC, < 1.5 A
  • RJ12 plug supported (RJ11 compatible)
  • Default wiring: Pin 2 or Pin 5 with common Pin 4
OS Support :
  • Android 8.0+
    • Please verify your operating system version to ensure Bluetooth compatibility.
Cable :  USB Type-A to Type-C x1
Casing :  Aluminium
Colour :  Black
Weight :  110 g (net, without battery and cable) ±15%
Dimensions :  85 ×50× 25mm (D × W × H)
Remarks :
  • The AcodeTrigger App : NO data shared with third parties, NO data collected.
  • The AcodeTrigger App doesn’t collect or share any user data.
  • The AcodeTrigger App doesn’t collect any user data.Specifications are subject to change without prior notice.
 * Specifications are subject to change without prior notice.
