ADS1308 Full Size 16″ inch USB Interface Cash Drawer

ADS1308K USB Small Cash Drawer
The ADS1308 USB cash drawer combines full‑size capacity with compact design, durable all‑steel construction, and smooth ball‑bearing rails. Featuring 8 coin/4 bill compartments, secure three‑position lock, USB virtual COM support, and multi‑OS compatibility, it ensures reliable, organized cash handling.

  • Full‑size drawer measures 16″, 410×415×115 mm.

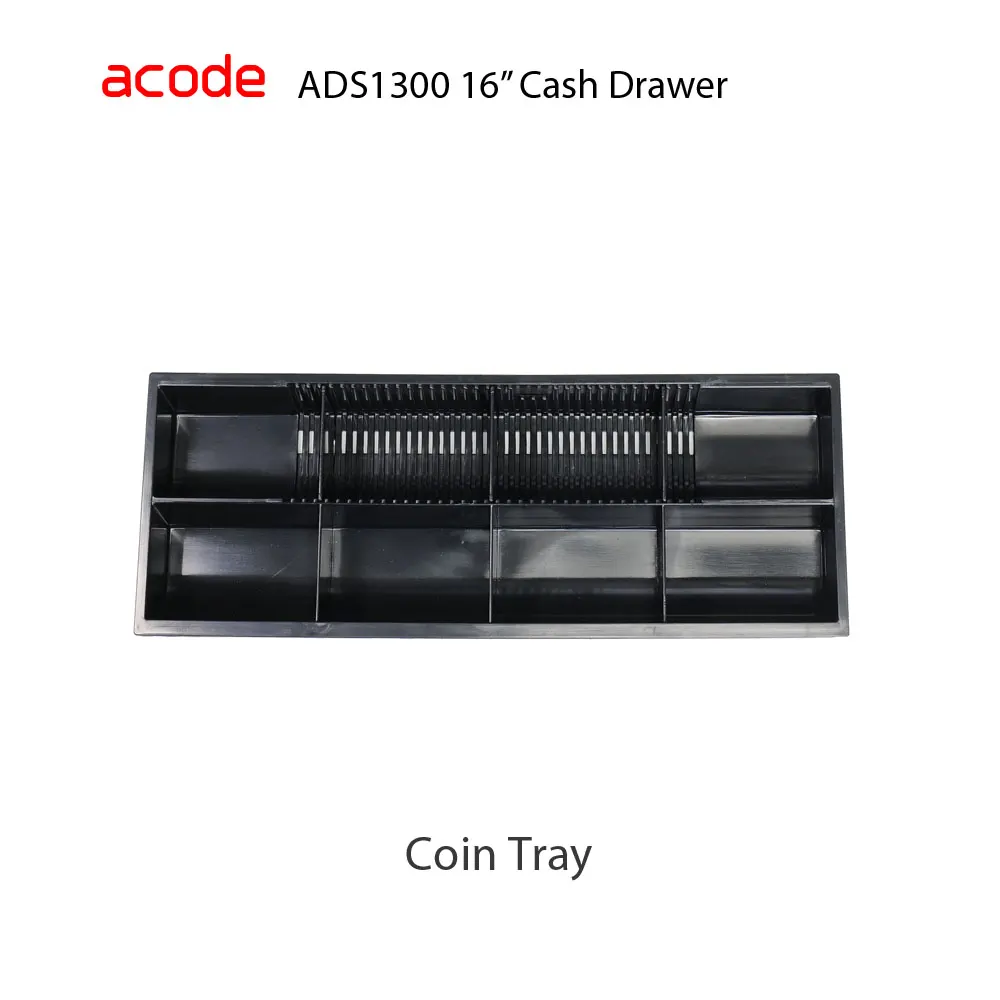

  • Cash insert includes 8 coin, 4 bill compartments.
  • Compact design offers space‑saving yet full capacity.

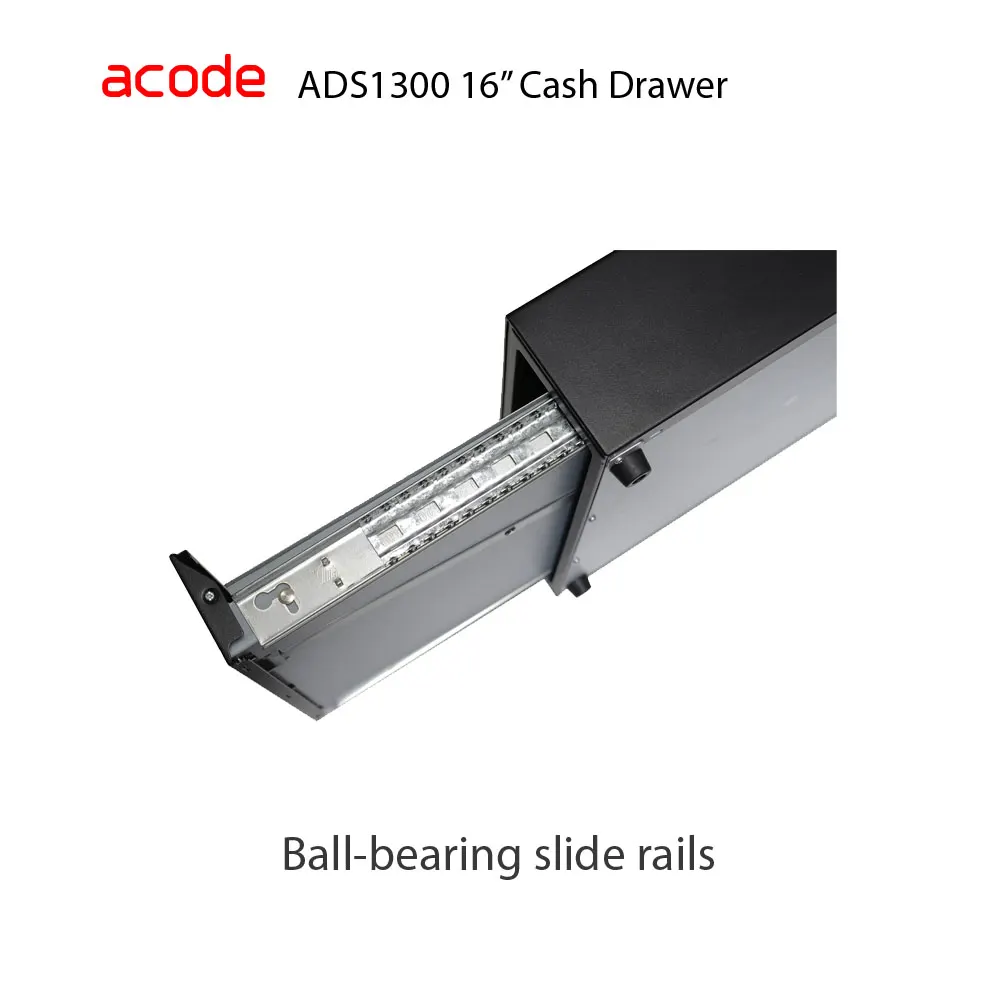

  • Durable all‑steel build with ball‑bearing slide rails.

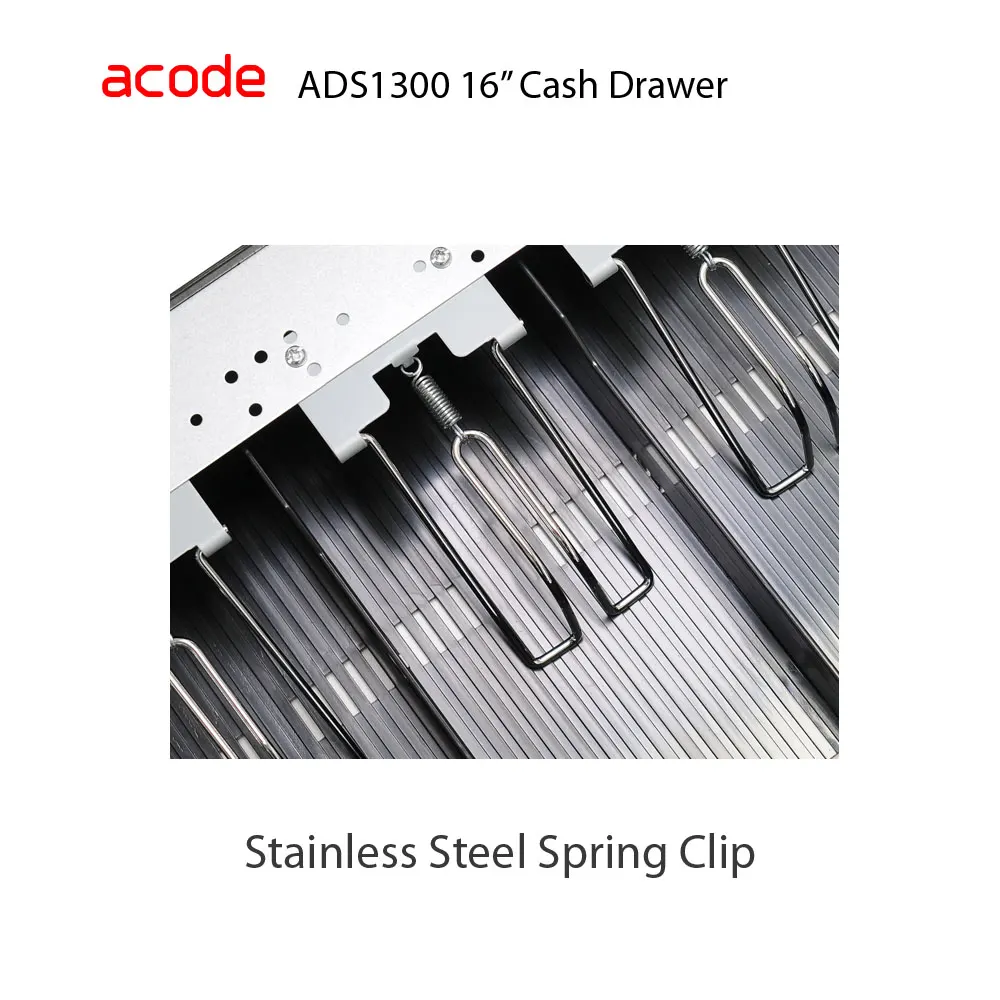

  • Secure stainless steel spring clips hold bills firmly.
  • USB interface supports virtual COM port connectivity.
  • OS compatibility: Windows XP/7/10/11, Android, macOS.
  • Three‑position lock with optional key configurations available.
  • Status detection via built‑in open/closed sensor.
  • Reinforced slide rail system ensures long‑term reliability.

* This model is available exclusively in Hong Kong.
* For other connection types, please see the available cash drawer trigger interfaces.

Enquiry
SKU: ADS1308K-W1616-USB-1 Categories: ,

Specifications

Model #  ADS1308K – USB Interface Cash Drawer Specifications
Tray Support  Ball bearing slide
Cash Tray  4 bill 8 coin / stainless steel bill press
Media Slot  1
Lock
  • 3 position lock (locked, auto, open)
  •  alike locks (same key lock number)
  •  different key lock combination : available upon request
Sensor  Detect open/closed status
Power  USB port powered, NO external power supply needed
Interface  USB 5V, 500mA
OS Support :  Android 5.0 or above ; Windows 11, 10, 8.1, 7 ; macOS
Virtual (Serial) COM port  Make it appear to operating system or application as a standard RS232 serial port.
Construction  All steel
Colour  Black
Weight  7.5kgs net
Dimension  410 x 415 x 115mm WDH
  * Specifications are subject to change without prior notice.
