What is a Push Button Cash Drawer Trigger ?

A Push Button Cash Drawer Trigger is a device used to manually open a cash drawer without relying on a point-of-sale (POS) system or software command. It’s often used in retail or hospitality environments where quick access to the cash drawer is needed.

Features:

• Manual Activation Open the cash drawer with a simple press—no software or system required.
• Compact Design Small footprint and easy installation near your register or workstation.

Why Choose a Push Button Cash Drawer Trigger?

• Simple & Reliable: A no-fuss, low-tech solution that works independently of any POS system.
• Fast & Efficient: Ideal for high-speed environments like food trucks, pop-up shops, or busy retail counters.
• Perfect for Temporary Setups: Great for market stalls, event booths, or mobile kiosks where a full POS system isn’t practical.

🔋 No Power Outlet ? No Problem

Choose the AT10M3 Battery Mobile series for cordless, flexible operation – anytime, anywhere.

Contact Us

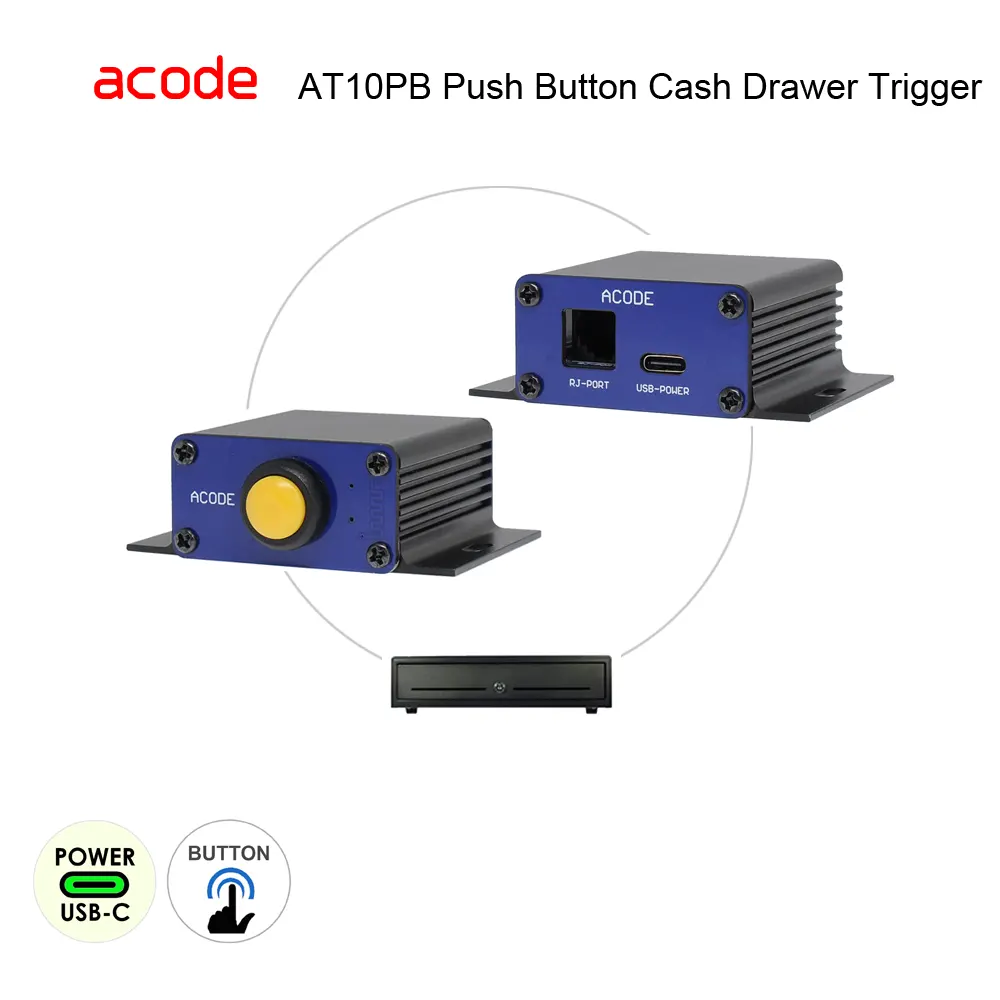

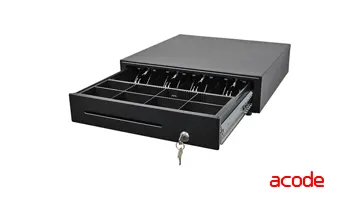

Which types of cash drawers are compatible with AT10PB ?

AT10PB Supports POS Receipt Printers through Cash Drawer Interface

• Interface: Supports RJ11 (4-pin) or RJ12 (6-pin) connectors
• Electrical Specs: Operates on 12–24V DC, 1A
• Solenoid Activation: Triggered via Pin 2 or Pin 5 or Common Pin 4

This configuration ensures reliable compatibility with most POS receipt printers equipped with a cash drawer port.

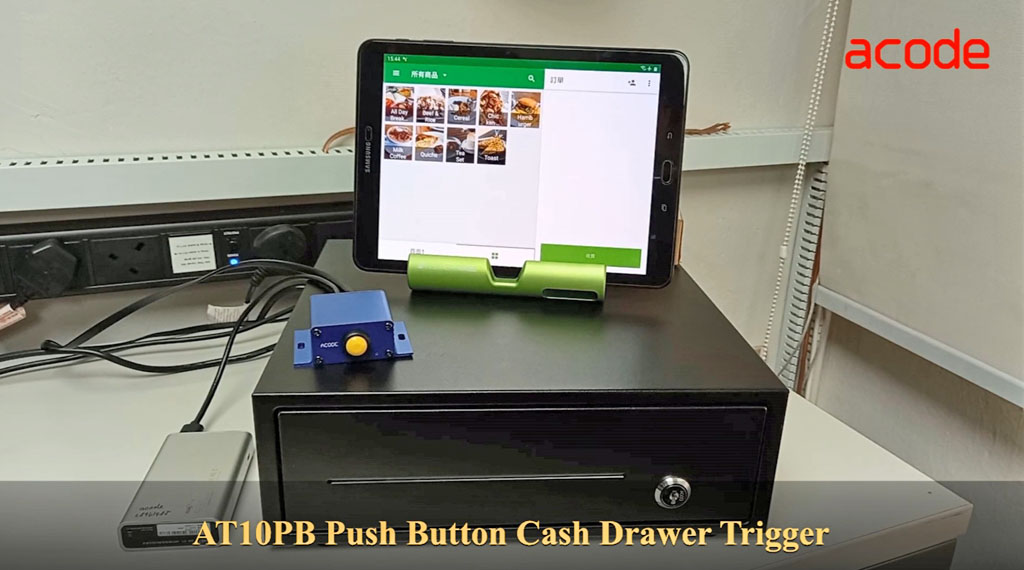

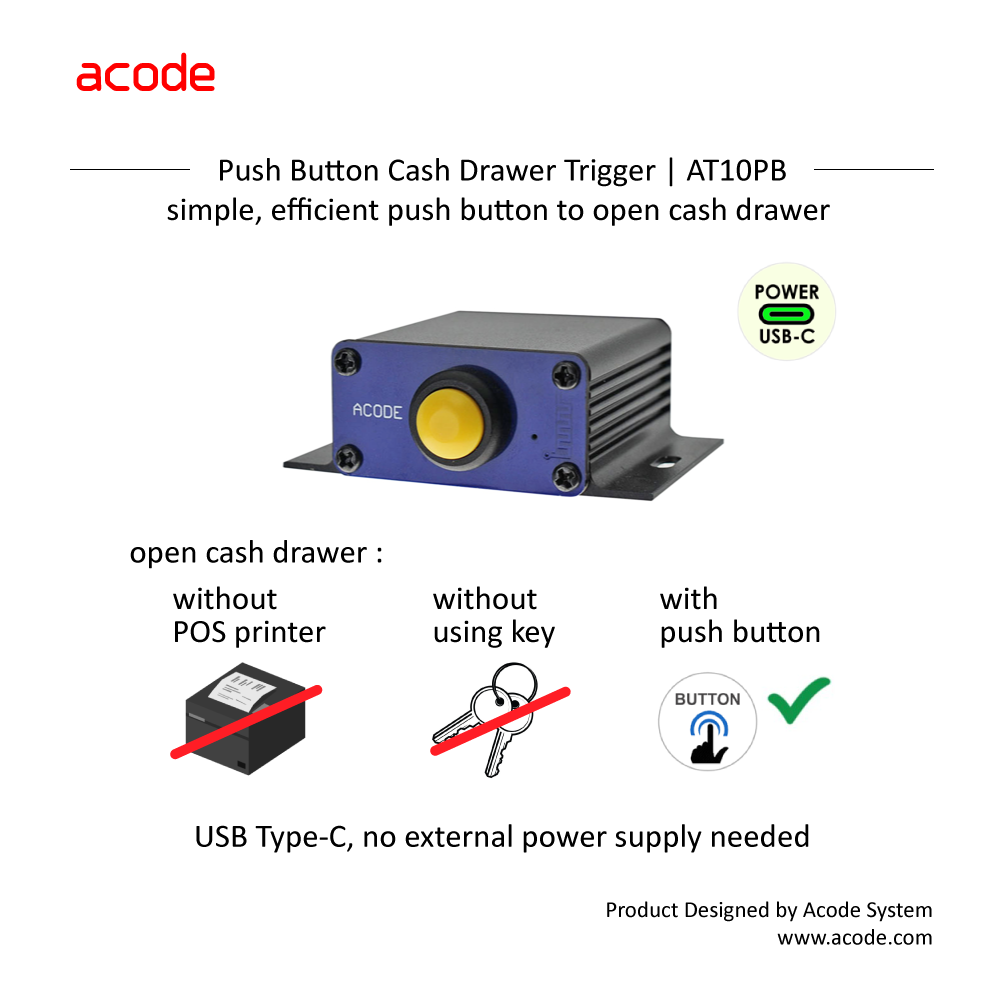

How to open cash drawer without printer or receipt printing ?

Yes, you can use AT10PB Push Button Cash Drawer Trigger, it opens cash drawer without printer. It can operate independently. Simply press the push button to trigger open the cash drawer. This manual control cash drawer trigger is USB port powered, convenient and efficient solution.

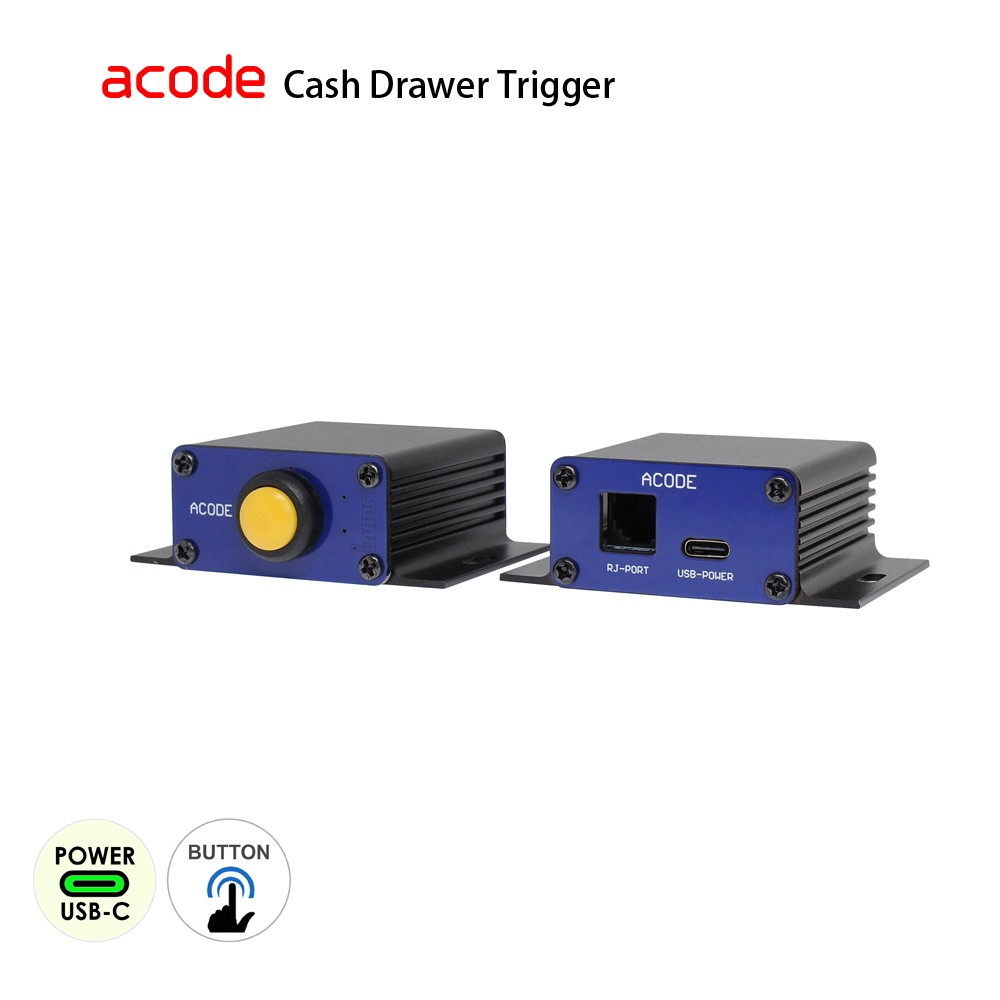

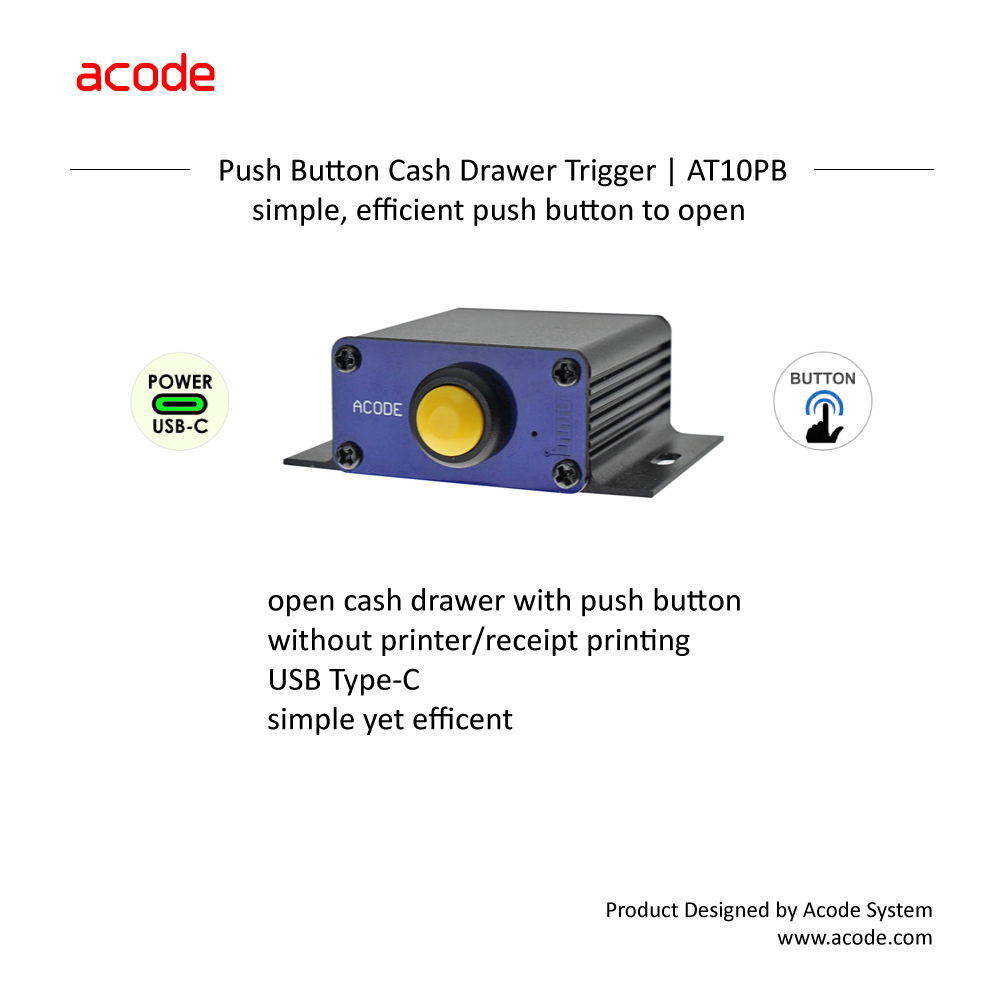

AT10PB Push Button Cash Drawer Trigger

The AT10PB is a standalone push-button trigger that opens your cash drawer without requiring a printer. Designed for independent operation, it offers:

• Manual control — simply press the button to open the drawer.
• USB-powered convenience — external power supply needed.
• A compact and efficient solution for “No Sale” scenarios or non-POS environments.

We’re here to help contact our team anytime with your questions.

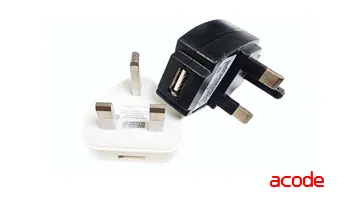

Powering Your AT10PB: How to Select the Right Adapter

If your AT10PB device requires an external power adapter, use the following specifications to ensure reliable and safe operation:

• Voltage: DC 5V (standard)
• Current: At least 500mA
• Connector Type: USB Type-C or USB-A

This setup provides a simple, secure, and efficient power solution—perfect for maintaining consistent performance in any environment.

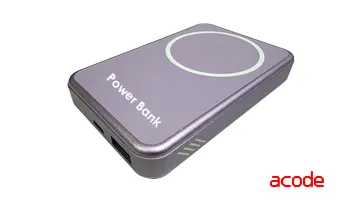

Can I Use a Power Bank to Power the AT10PB Cash Drawer Trigger?

Use of power banks with the AT10PB is not recommended. The AT10PB is a low-power device and draws very little current, which may cause some power banks to misinterpret it as inactivity and shut off their output automatically. If a power bank is required, please consider switching to the AT10M3PB Series instead.

Contact Us

How to check cash drawer pin assignment ?

1. (Right Meter) Check the Red Pin 2 and Pin 5  , Green Pin 4 wires  common on the solenoid shows a slight variation in readings.

2. (Left Meter) Check with the Pink Pin 3 and Black Pin 6 wire shows a significant difference between cash drawer open and closed.

• This cash drawer routine supports standard Epson and Star POS printer pin configurations, as well as all Acode cash drawer triggers.
• Important: You must verify the your cash drawer’s solenoid voltage and pin assignment before connecting it to your receipt printer or POS terminal or Acode cash drawer triggers.
