ADS2108 Small Size 12inch USB Interface Cash Drawer


USB Interface

open cash drawer from USB

  • space saving, compact size
  • open cash drawer that is connected to USB port
  • detect cash drawer’s open/closed status
  • create a Virtual Serial (COM) Port when using USB connection
  • special function : Acode Fixport (MS Windows), avoid port change problem
  • durable, slide rail support
SKU: AD2101-W1212-RJ-1-1-1 Categories: ,

Data Sheet

Model # ADS2108 USB

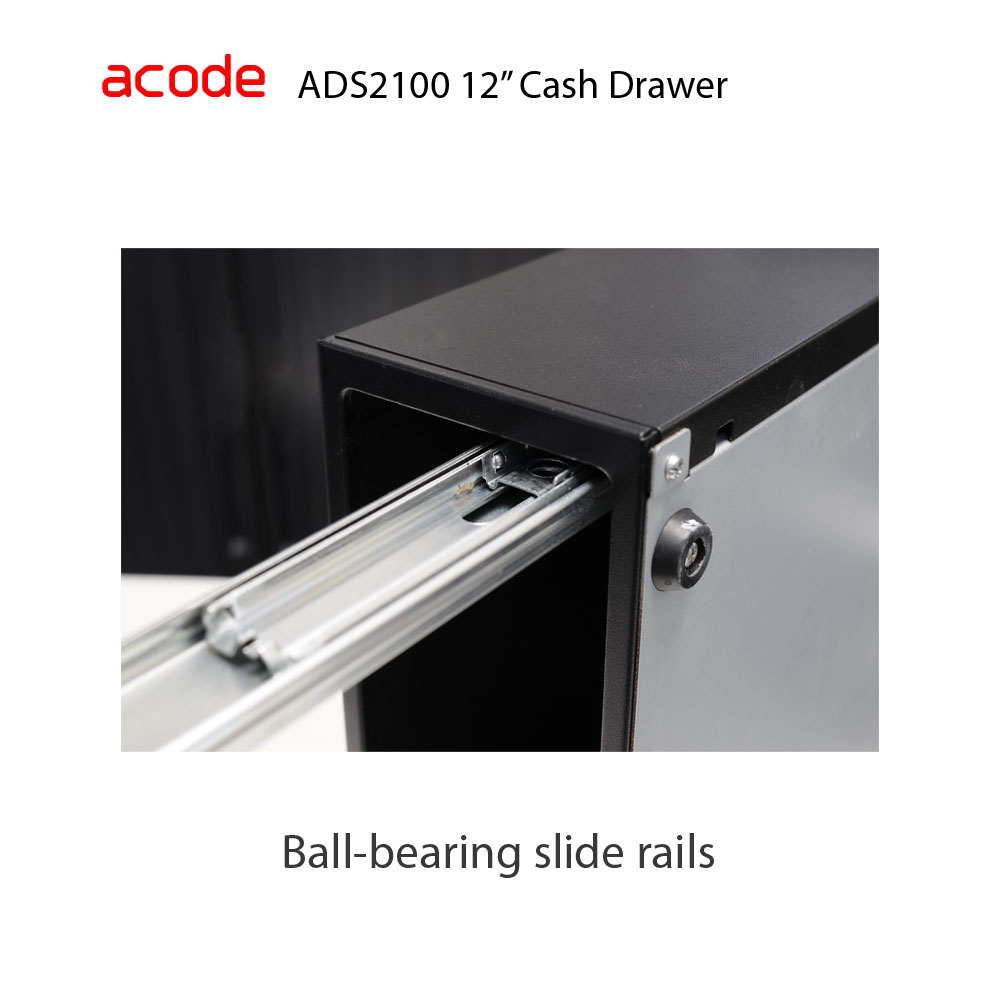

Tray Support ball bearing slide

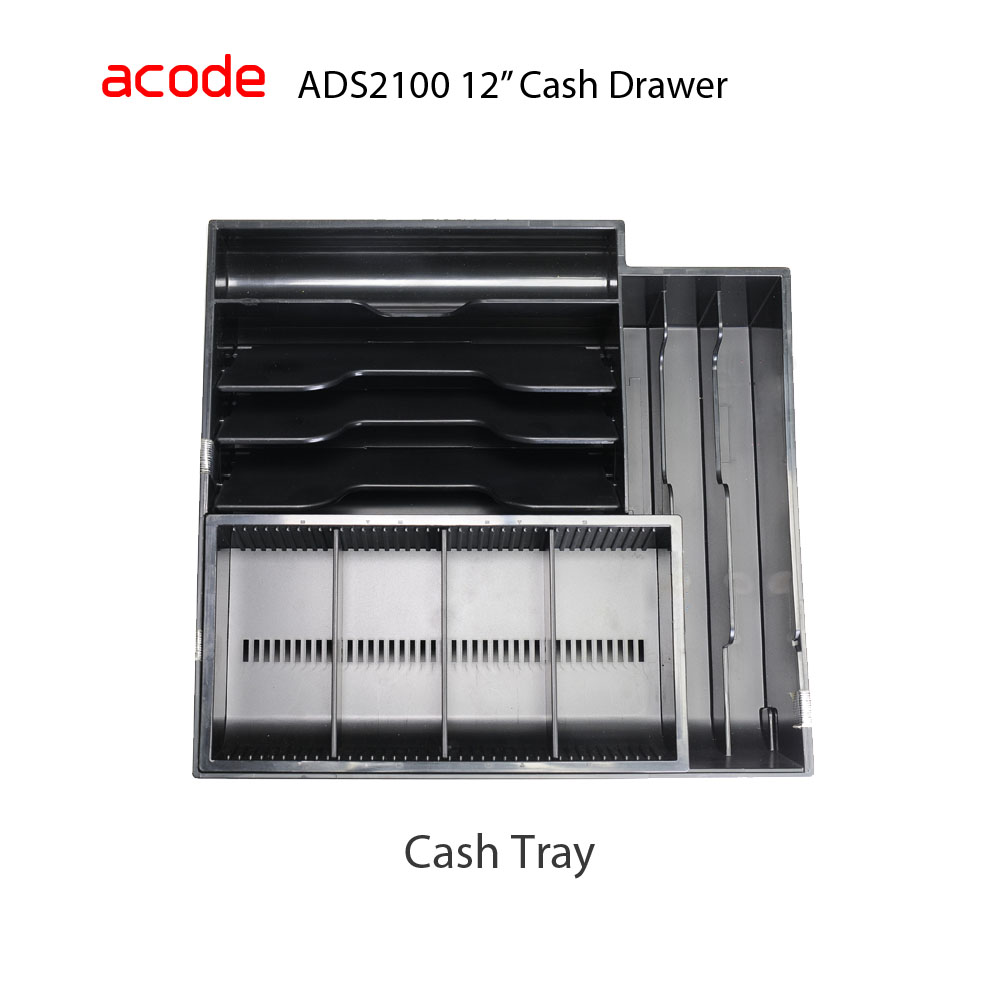

Cash Tray 5 bill 4 coin, upright note compartment
Media Slot 1
Lock 3 position lock (locked, auto, open)
Electrical 5V DC, 500mA
Sensor detect open/closed status
Power USB port powered, NO external power needed
Interface USB
Supported OS X86, X64 (XP / Vista / Win7/8/8.1/10)
Android OS (Linux Kernel)
MacOS X 10.12/10.11/10.10/10.9/10.8/10.7/10.6 (Device Name)
Acode Fixport Function The cash drawer comes with an Acode Fixport Utility (for Windows).

This utility will create a Virtual (Serial) COM port, make it appear to operating system or application as a standard RS232 serial port.

When you need to physically disconnect the cash drawer, the Virtual Serial (COM) port remains in the Device Manager, completely avoid virtual serial port disappearing/reappearing problem.

After reconnecting the cash drawer, the Virtual (Serial) COM port number will remain the same, without the need for COM port reconfiguration.

Furthermore, with our Virtual (Serial) COM port, even if you disconnect the cash drawer without closing COM port, it will not cause system hang up.

Construction all steel
Colour black
Weight 4.8kgs net
Dimension 309 x 108 x 299mm
Specifications are subject to change without prior notice.
