ADS1301K Full-Size Cash Drawer

The ADS1301K full‑size cash drawer integrates seamlessly with POS receipt printers via RJ11/RJ12 interface. Featuring durable all‑steel construction, ball‑bearing rails, secure three‑position lock, and status detection sensor, it delivers reliable, heavy‑duty performance with compact, space‑saving design for retail environments.

  • Full‑size drawer measures 16″, 410×415×115 mm.
  • Durable all‑steel build with ball‑bearing slide rails.
  • POS integration via RJ11/RJ12 printer interface.
  • Status detection sensor monitors open/closed drawer state.
  • Secure three‑position lock with optional key variations.
  • Heavy‑duty design withstands heavier loads without warping.
  • Trigger compatibility supports Acode AT10 USB/Bluetooth modules.

* This model is available exclusively in Hong Kong.
* For other connection types, please see the available cash drawer trigger interfaces.



Enquiry
SKU: ADS1301K-W1616-RJ-1 Categories: ,

Description

The ADS1301K is a full-size, heavy-duty cash drawer engineered for seamless integration with POS receipt printers. Built with durability and efficiency in mind, it’s the ideal solution for retail environments that demand reliability and space-saving design.

The ADS1301 connects directly to your POS printer, triggering drawer opening with a short electrical pulse. It’s compatible with Acode’s AT10 USB/Bluetooth modules for flexible setups.

Specifications

Model #  ADS1301K Cash Drawer Specifications

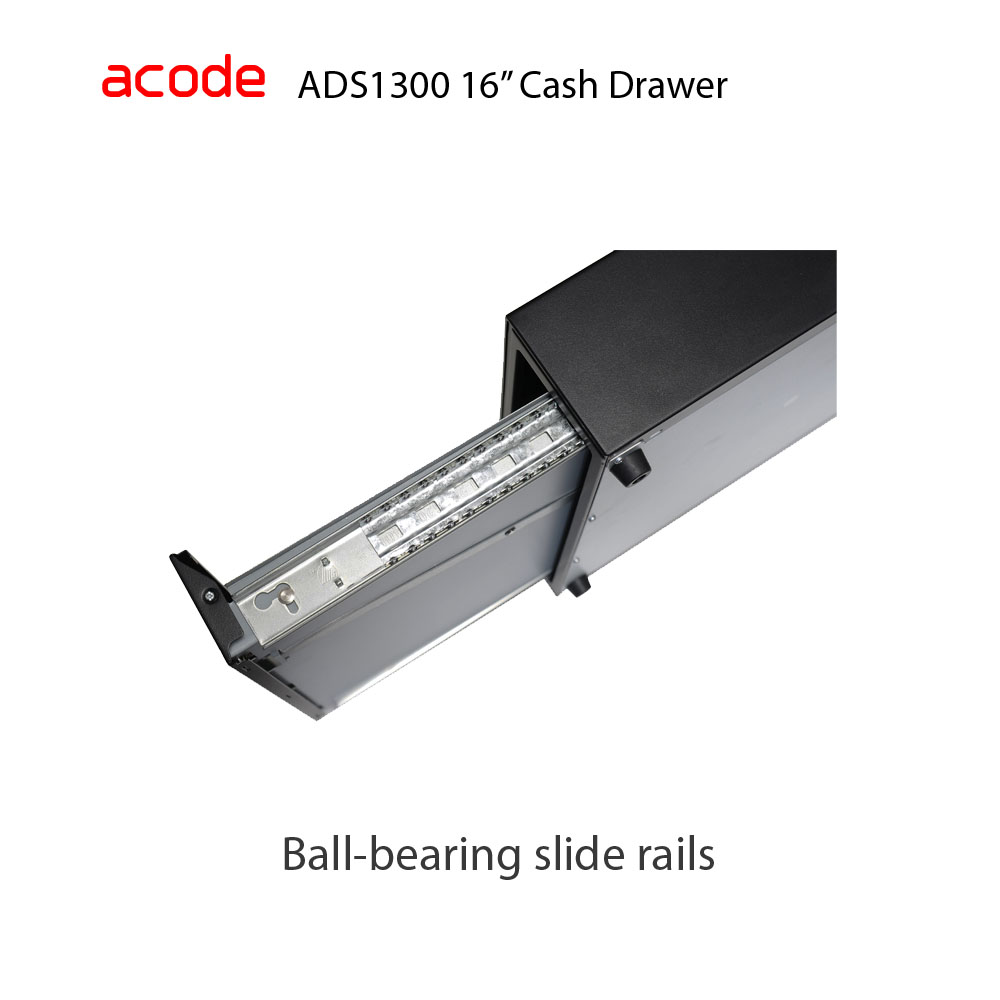

Tray Support  Ball bearing slide

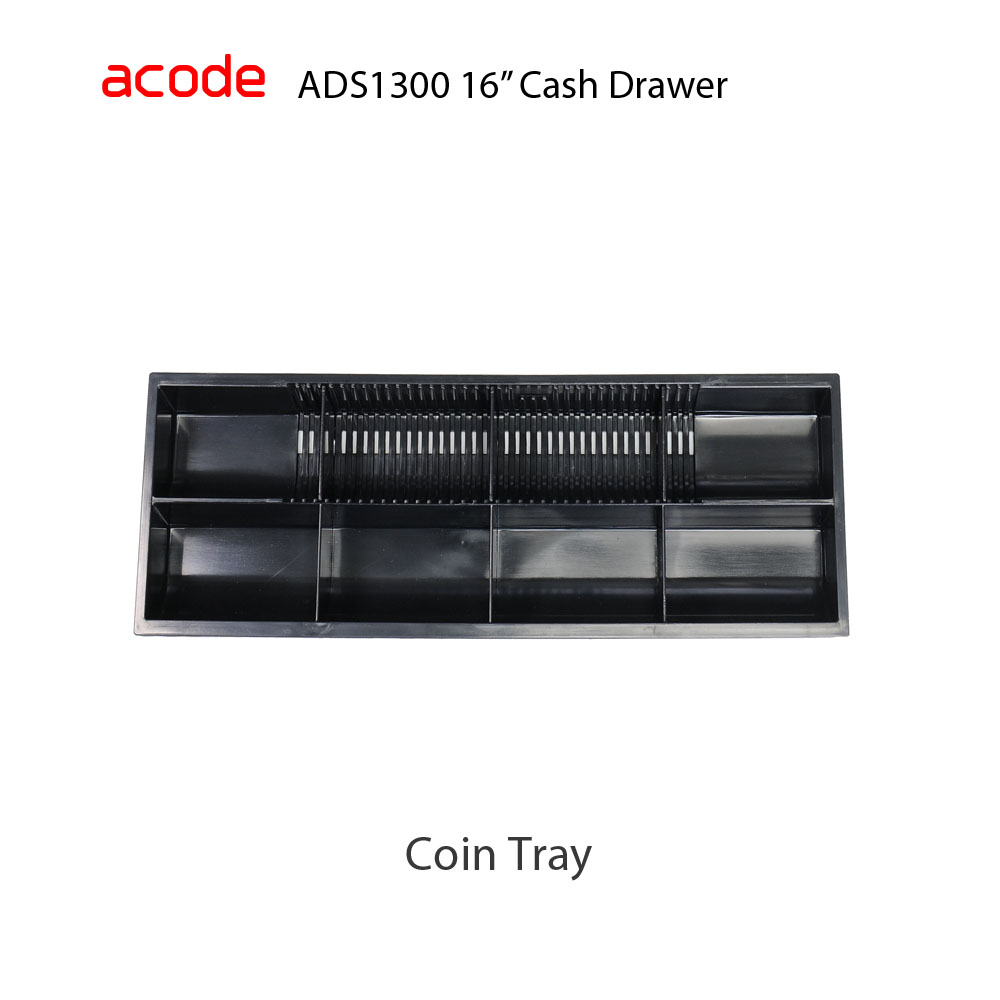

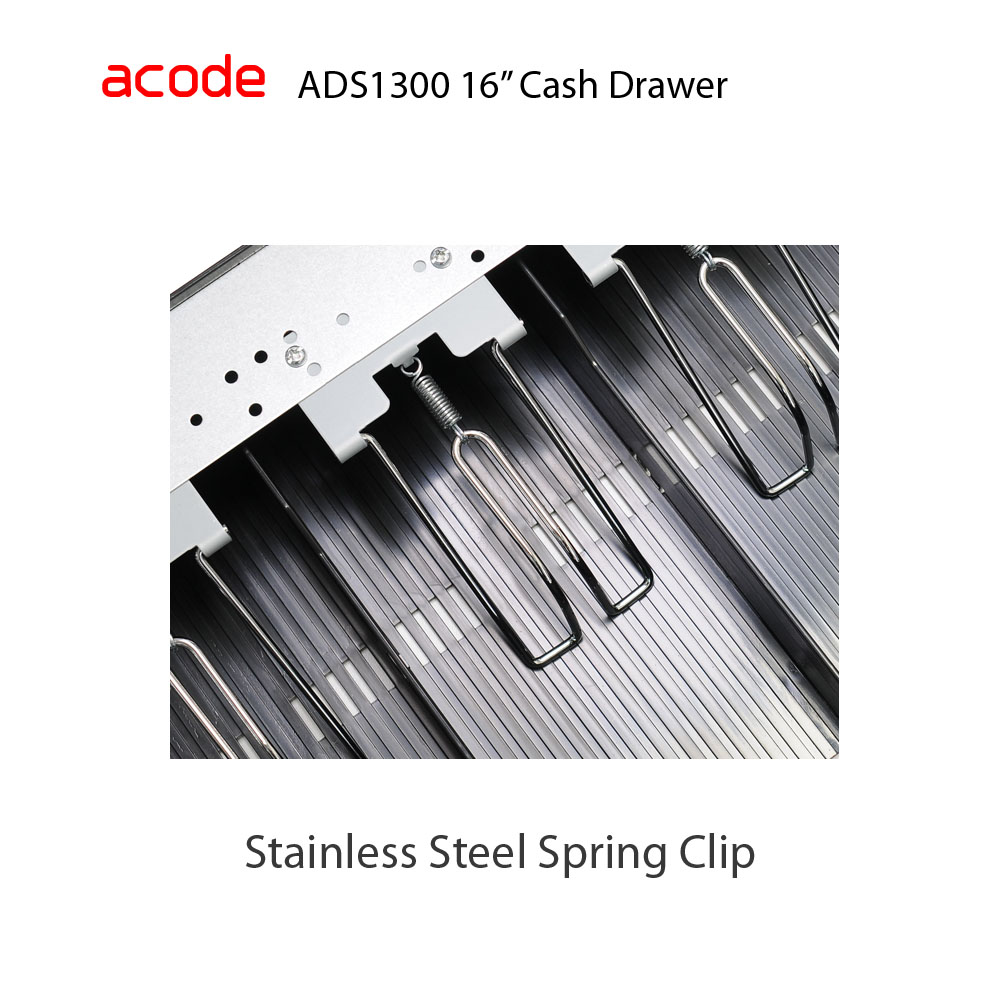

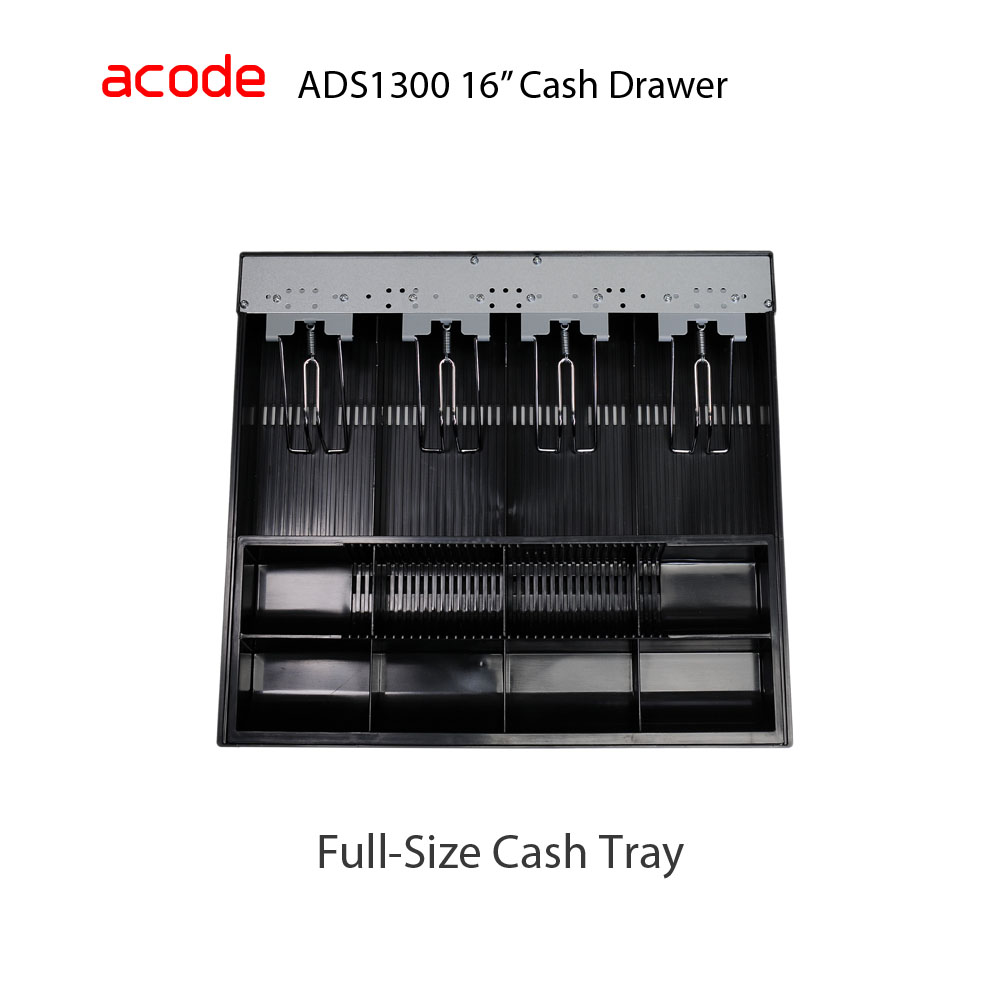

Cash Tray  4 bill 8 coin / stainless steel bill press
Media Slot  1
Lock
  • 3 position lock (locked, auto, open)
  • alike locks (same key lock number)
  • different key lock combination : available upon request
Electrical  12~24 Volts DC, <150ms, <1A
Pulse Width  100 to 200 msec
Sensor  Detect open/closed status
Connector PIN  RJ11 / RJ12, (Solenoid PIN 2,4 / Senor PIN 3,6)
Interface  POS printer driven, RJ11/RJ12
Construction  All steel
Colour  Black
Weight  7.5kgs net
Dimension  410 x 415 x 115 mm WDH
   * Specifications are subject to change without prior notice.
