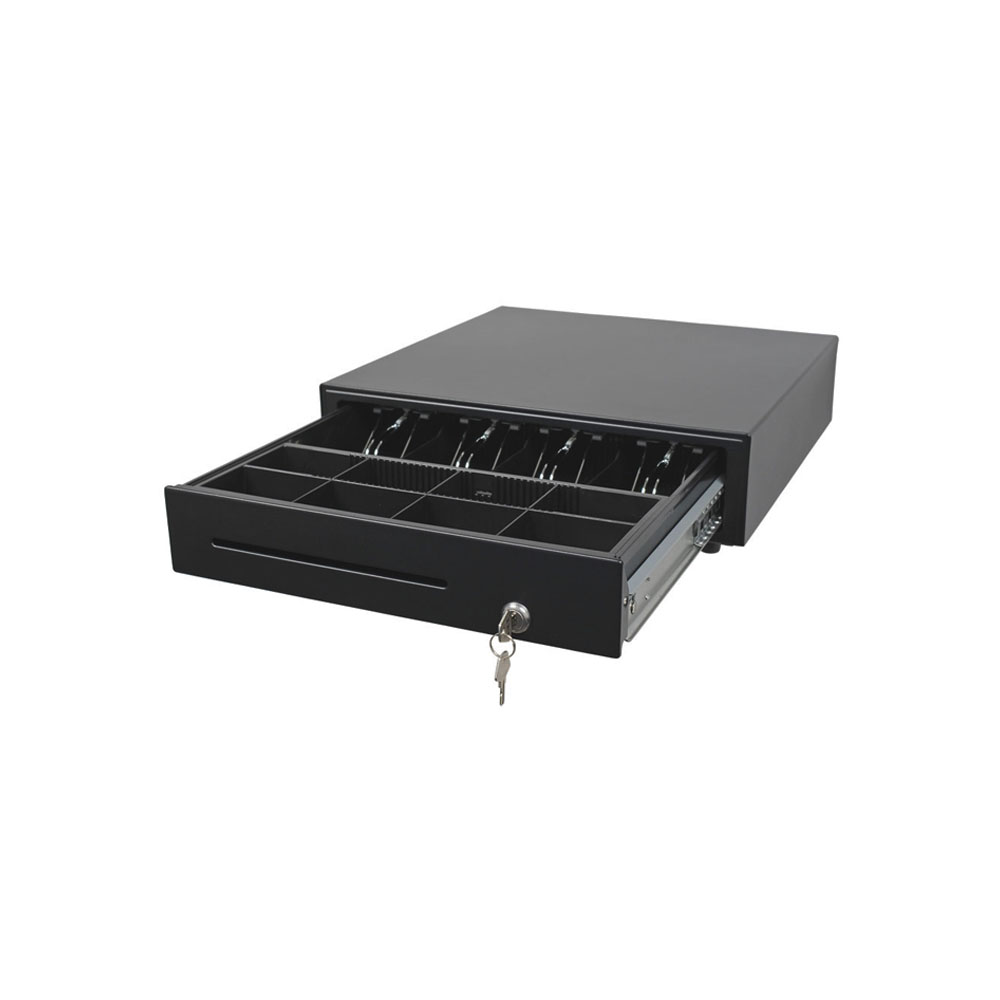

ADS1308 Full Size 16inch USB Interface Cash Drawer


USB Interface

open cash drawer from USB

  • open cash drawer that is connected to USB port
  • create a Virtual Serial (COM) Port when using USB connection
  • RJ12 : detect cash drawer’s open/closed status
  • special function : Acode Fixport (MS Windows), avoid port change problem
  • supports : MS Windows / Android / MacOS / Linux
  • durable, slide rail support
SKU: AD2101-W1212-RJ-1-1 Categories: ,

Data Sheet

Model # ADS1308K
USB Interface
Tray Support ball bearing slide
Cash Tray 4 bill 8 coin / stainless steel bill press
Media Slot 1
Lock 3 position lock (locked, auto, open)
alike locks (same key lock number)
different key lock combination : available upon request
Electrical 5V, 500mA
Sensor detect open/closed status
Power USB port powered, NO external power supply needed
Interface USB
Supported OS MS Windows 11, 10
Acode Fixport Function The cash drawer comes with an Acode Fixport Utility (for Windows).

This utility will create a Virtual (Serial) COM port when using a USB  connection,  make it appear to operating system or application as a standard RS232 serial port.

When you need to physically disconnect the cash drawer, the Virtual (Serial) COM port remains in the Device Manager, completely avoid virtual serial port disappearing/reappearing problem.

After reconnecting the cash drawer, the Virtual (Serial) COM port number will remain the same, without the need for COM port reconfiguration.

Furthermore, with our Virtual (Serial) COM port, even if you disconnect the cash drawer without closing COM port, it will not cause system hang up.

Construction all steel
Colour black
Weight 7.5kgs net
Dimension 410 x 415 x 115mm WDH
Specifications are subject to change without prior notice.
