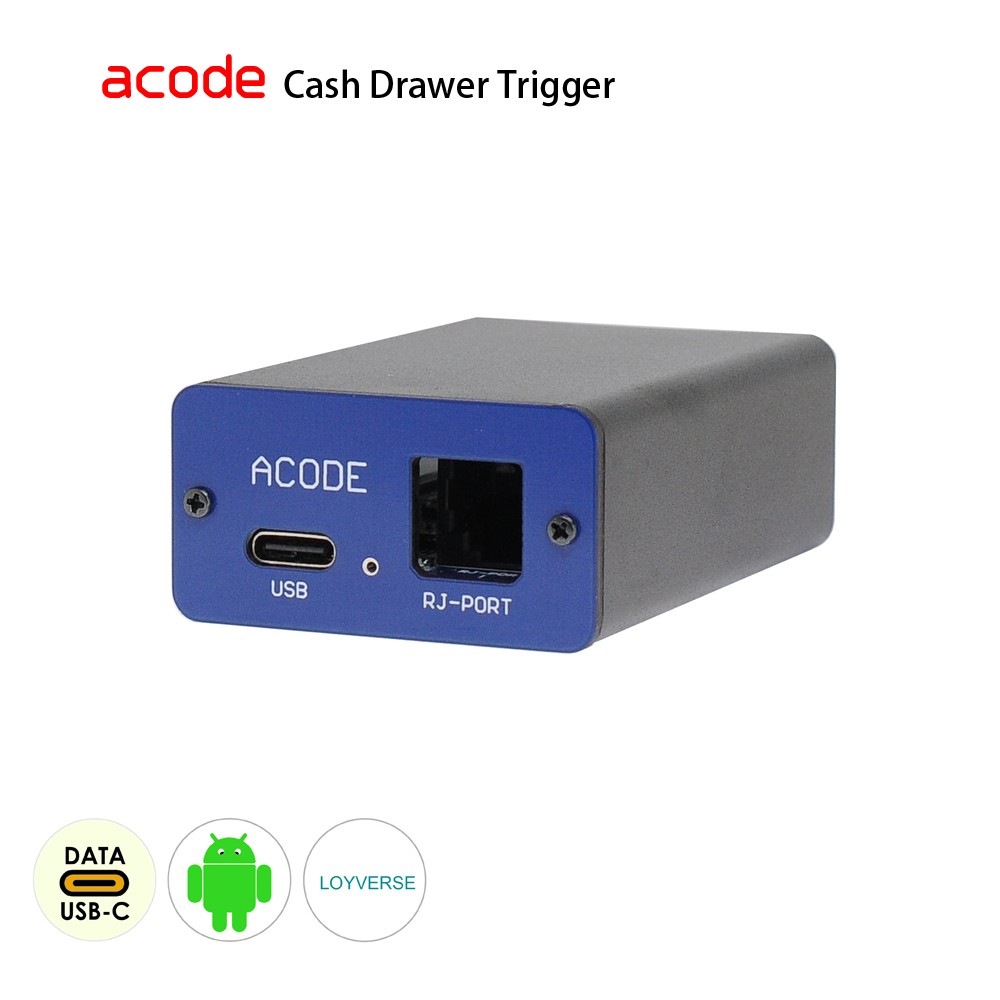

AT10B3-85201 Bluetooth Cash Drawer Trigger for Loyverse POS

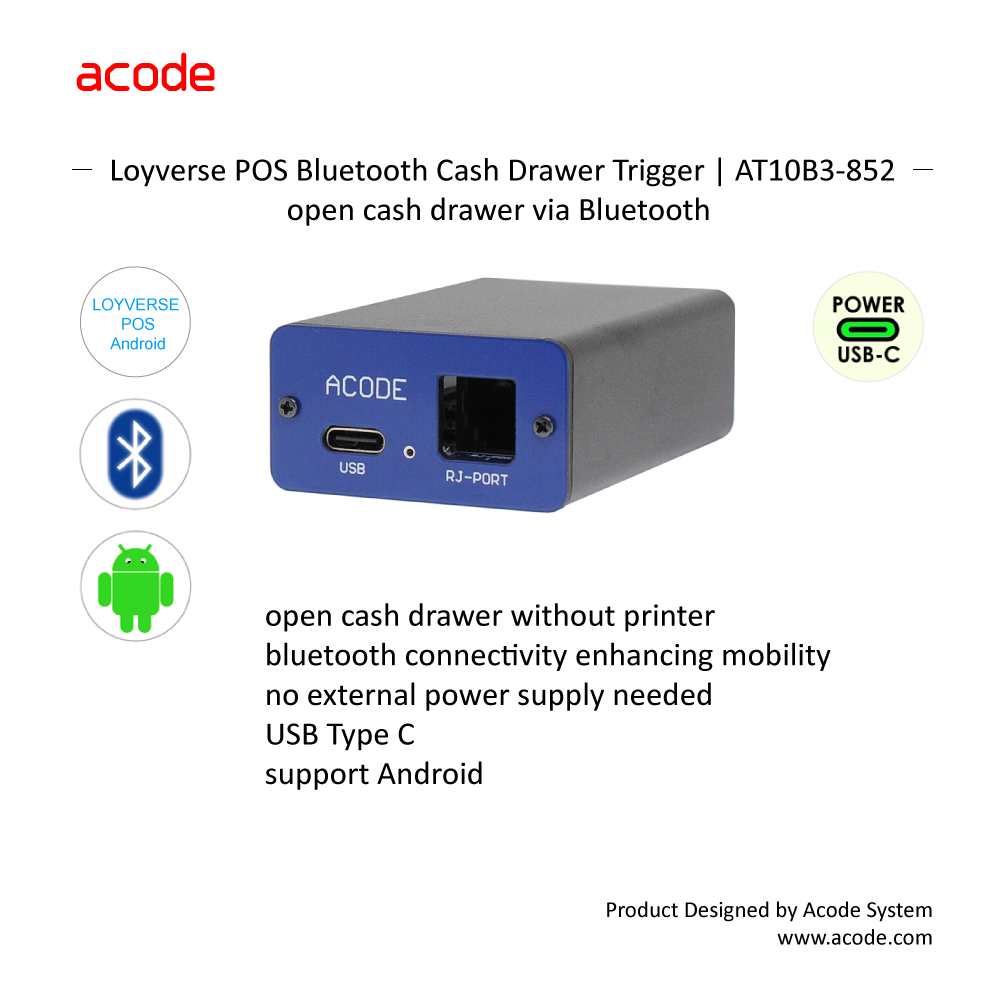

AT10B3-Loyverse-POS-Bluetooth-Cash-Drawer-Trigger-Android

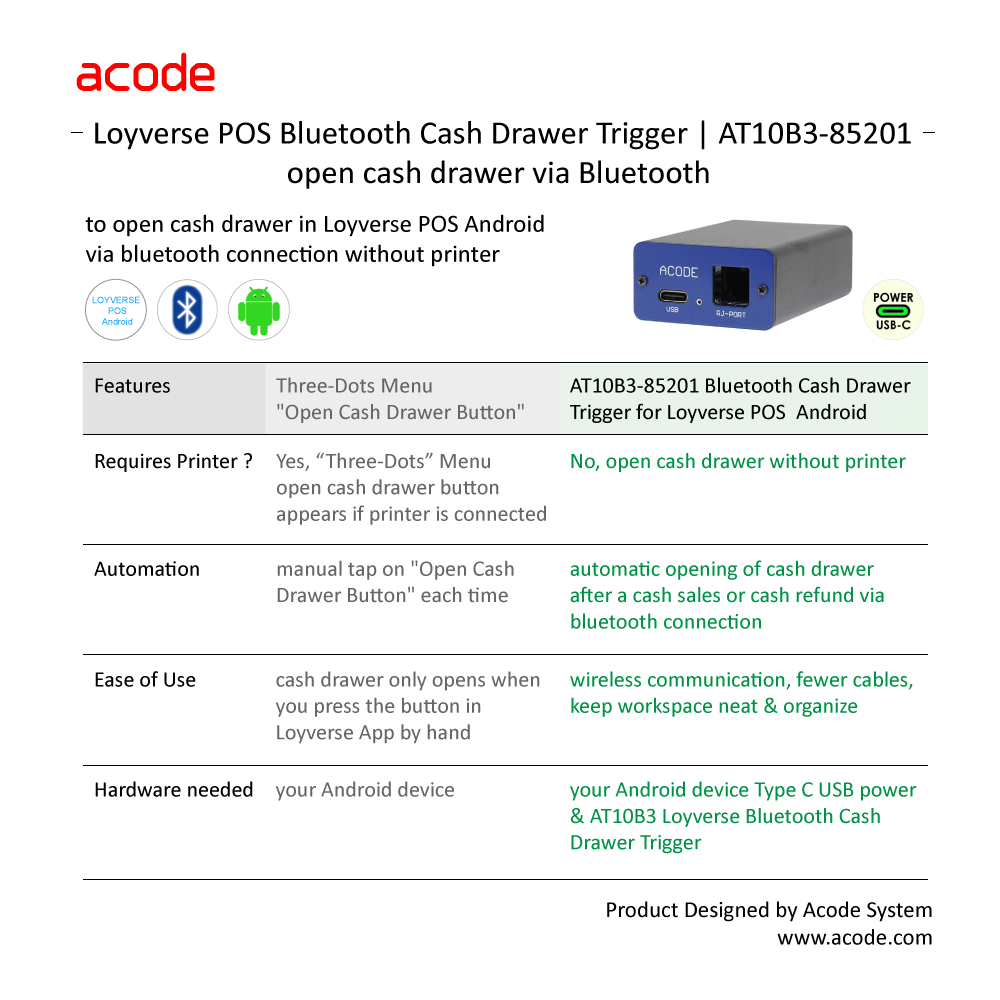

AT10B3-85201-Loyverse-Bluetooth-Cash-Drawer-Trigger-bluetooth-to-auto-open-cash-drawer

AT10B3-85201 Bluetooth Cash Drawer Trigger Open Cash Drawer in Loyverse POS

Bluetooth to Open Cash Drawer in Loyverse POS

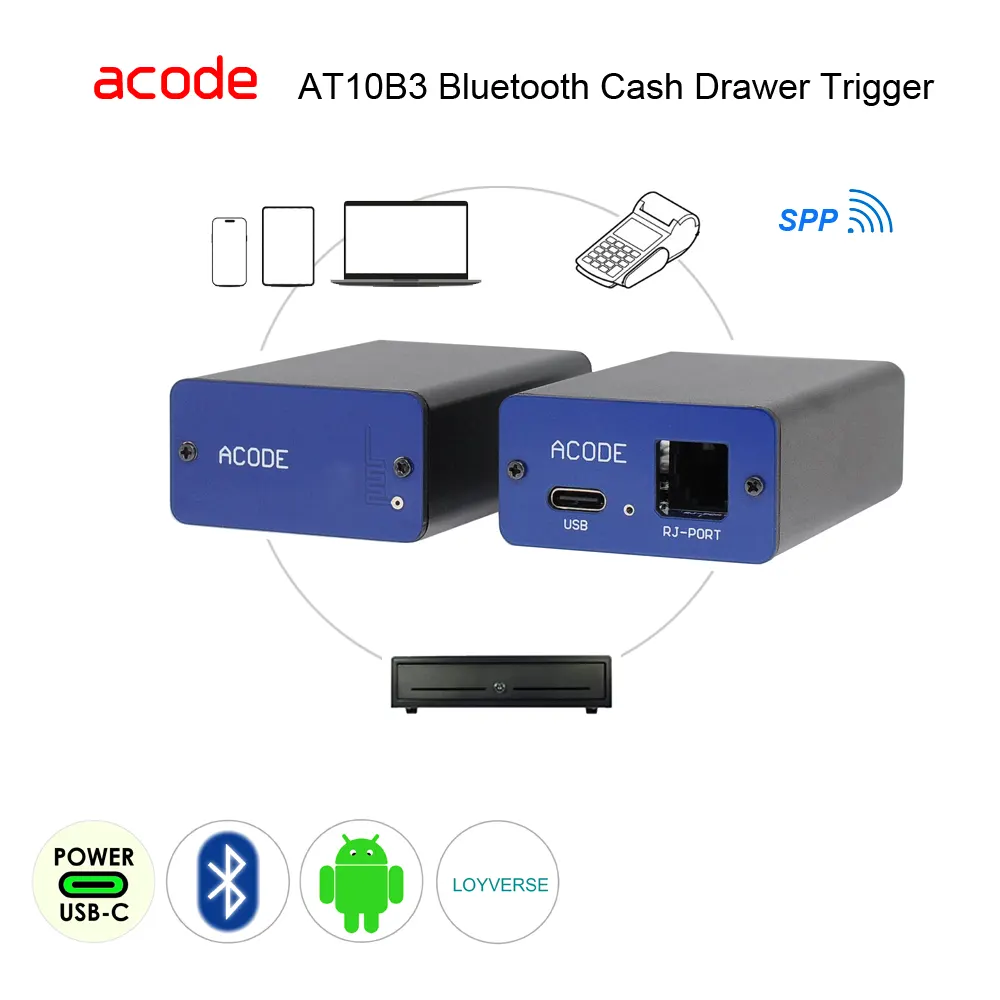

AT10B3-85201 Bluetooth Cash Drawer Trigger for Loyverse POS Android

bluetooth connection to open cash drawer in Loyverse POS without printer

  • Printer-Free Operation : auto open cash drawer without needing a receipt printer
  • Wireless Convenience : bluetooth connectivity enhancing convenience, flexibility and mobility
  • Loyverse POS Android Integration : works with Loyverse POS Android, automatically open cash drawer when a sale is completed or when issuing a cash refund to customers
  • LED lights showing power and operating status
  • charging via USB Type C

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Payment : prices in USD, accept payment via PayPal
  • We will NOT ship to P.O. Box
Enquiry
Categories: ,

Video

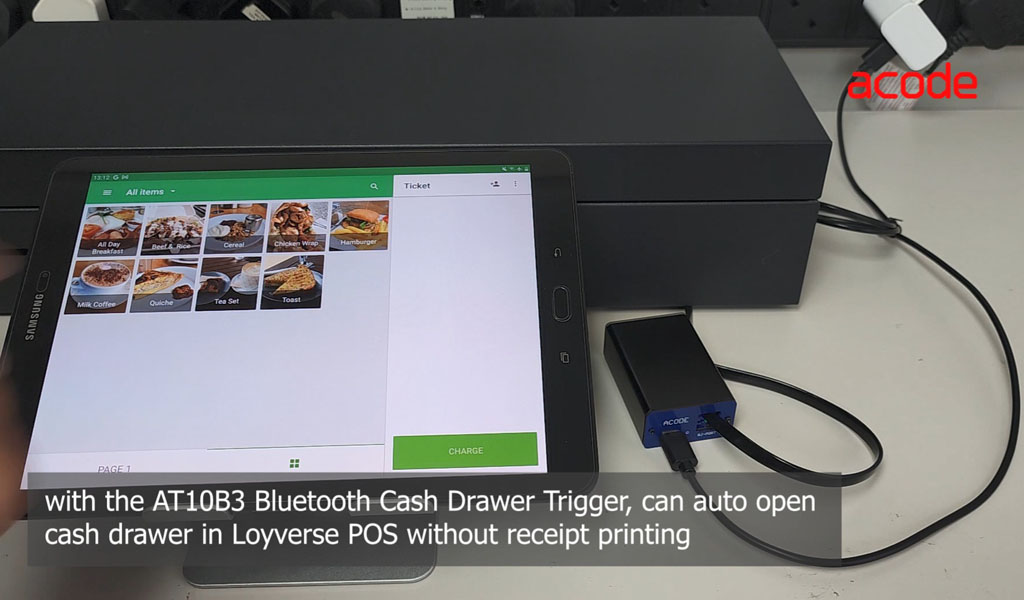

Product Video AT10B3 Bluetooth Cash Drawer Trigger for Loyverse POSWatch Video | Youtube

AT10B3-85201 Bluetooth Cash Drawer Trigger
bluetooth to open cash drawer in Loyverse POS for Android
open cash drawer with your mobile device
greater mobility and flexibility

FAQs

You can use AT10B3-85201 Bluetooth Cash Drawer Trigger for Loyverse POS. It will open cash drawer in Loyverse POS Android using Bluetooth connection. You can make a sales transaction or making a cash refund without using POS printer.

Date Sheet

Model # AT10B3-85201-00000 open cash drawer in Loyverse POS via bluetooth connection
Interface Pairing Mode bluetooth serial SPP pairing
Power USB Type-C, DC5V, <500mA
For Cash Drawer Type 12~24 Volts, <1.5A, RJ12 (support RJ11), default to fit cash drawer PIN 2,4 and PIN 4,5
Supported OS Android 8.0 above
Cable USB Type A to Type C (default), USB Type C to Type C (optional)
Casing aluminium
Colour black
Weight 60g net without cable
Dimension 65x45x24mm DWH
Specifications are subject to change without prior notice.
