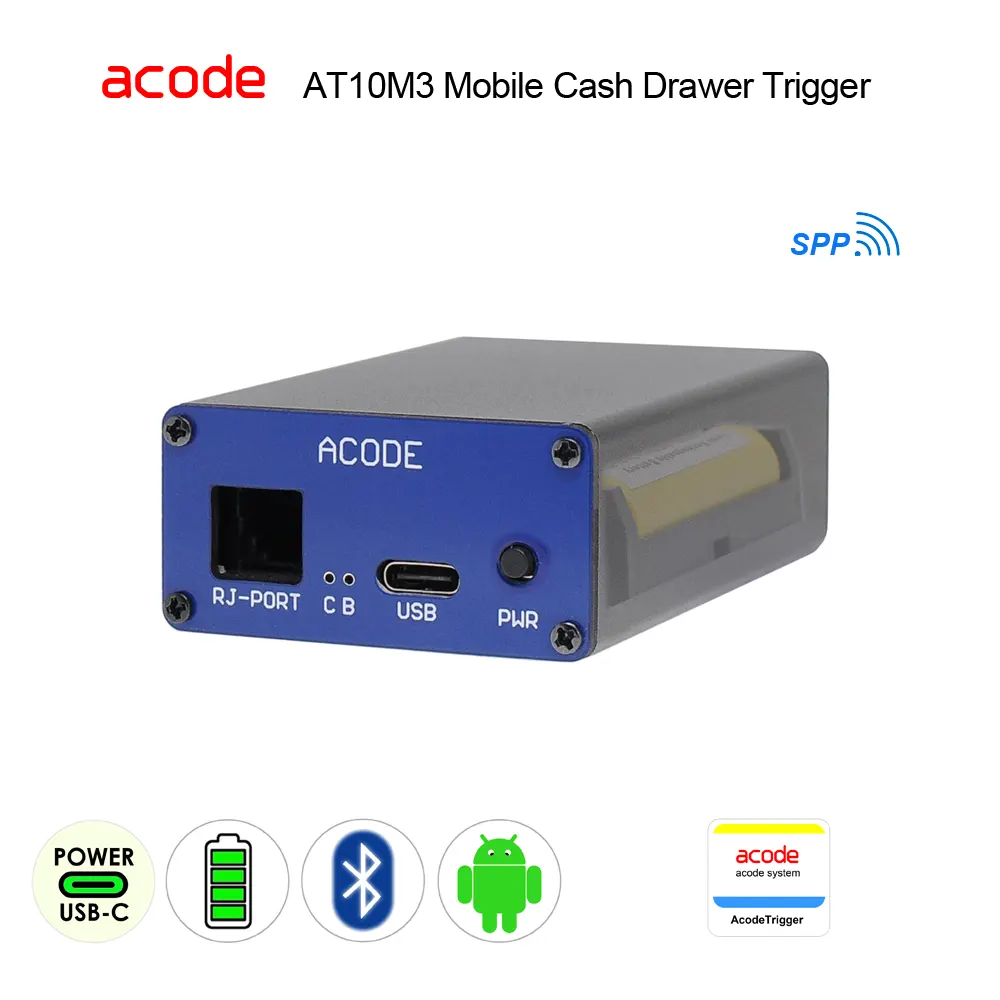

AT10M3 Battery Cash Drawer Trigger with Bluetooth and AcodeTrigger Apps
open cash drawer from mobile phone using UnLock Smart Bluetooth Cash Drawer Trigger and AcodeTrigger App Android
cash drawer open on cash payment with UnLock-Smart-Bluetooth-Cash-Drawer-Trigger-and-AcodeTrigger-App-Android

AcodeTigger – AT10M3-86313-40000 MOBILE Battery‑Powered Bluetooth Cash Drawe Trigger – Unlock Smart App (Android)

AcodeTigger Series – AT10M3 Mobile Bluetooth Cash Drawer Trigger with Unlock Smart App (Android)

AT10M3‑86313‑40000 Mobile Bluetooth Cash Drawer Trigger is built for food trucks, kiosks, and pop‑up shops with unstable power. Cordless and dual‑powered, it ensures nonstop reliable operation. Unlock Smart App enables secure drawer opening without EPOS or printer, maximizing outdoor portability.

*This cash drawer trigger is designed with user‑friendly simplicity, offering quick and hassle‑free installation.

  • AcodeTrigger App works without printer system
  • Unlock Smart App enables secure drawer opening
  • USB‑C powered design supports charging use
  • Dual power options ensure nonstop operation
  • ≥1,200 cycles per full battery charge
  • Cordless 14500 lithium‑ion battery powered design
  • Replaceable battery allows Simple maintenance
  • Easy installation and Setup
  • Supports Android 8+ operating system
  • Compact metal case size 90 × 50 × 25 mm

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Prices in USD
  • We will NOT ship to P.O. Box
Enquiry
Categories: , , ,

Demo Video

This video for USB model reference only

AT10B3-816A Bluetooth Cash Drawer Trigger + AcodeTrigger App (Android)

  • Bluetooth Cash Drawer Trigger + AcodeTrigger App (Android) to control cash drawer opening
  • input password to open cash drawer
  • support Android
  • open cash drawer without EPOS system, operate as an independent unit
  • easy to setup and user friendly

Specifications

AT10M3-86313-40000 Cash Drawe Trigger

Model #   AT10M3 86313-40000 Cash Drawe Trigger Specifications
Function :  Battery-Powered opens cash drawer via Bluetooth with Unlock Smart App
Interface :
  • USB Type‑C Socket — Power Supply
  • RJ12 Socket — Cash Drawer Plug Connection
Operating Apps :  AcodeTigger-UnlockSmart
Trigger Mode :  Unlock Smart Activation
Power Input :  USB Type‑C, DC 5V <500mA
Power Adapter Requirements :  Fixed DC 5V, ≥ 500 mA — single port power adapter required (not included)
Cash Drawer Requirements :
  • Solenoid: 12–24 V DC, < 1.5 A
  • RJ12 plug supported (RJ11 compatible)
  • Default wiring: Pin 2 or Pin 5 with common Pin 4
OS Support :
  • Android 8.0+
  • Please verify your operating system version to ensure USB compatibility.

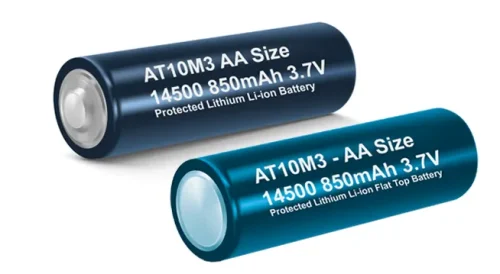

Battery Requirements :

🔋 Battery Specification :

  • Battery : 14500 rechargeable lithium‑ion
  • Capacity (Rated): 850 mAh or higher
  • Battery Type Options: Flat‑top (recommended) or button‑top
  • Battery Electronically Protected : Recommended
  • Nominal Voltage: 3.6V to 3.7V
  • Full Charge: sits around 4.2V
  • Rechargeable: Required
Cable :  USB Type-A  to Type-C x1
Casing :  Aluminium
Colour :  Black
Weight :  110 g (net , without battery and cable) ±15%
Dimensions :  85 ×50× 25mm (D × W × H)
Remarks :
  • The AT10M3 Series is shipped without a battery.
  • Do not use standard alkaline batteries.
  • Do not use non‑rechargeable 14500 batteries
   * Specifications are subject to change without prior notice.

Installation Video

Video setup for AT10U3 reference

FAQs

AT10M3 / AT10M3S Mobile Cash Drawer Trigger FAQs
