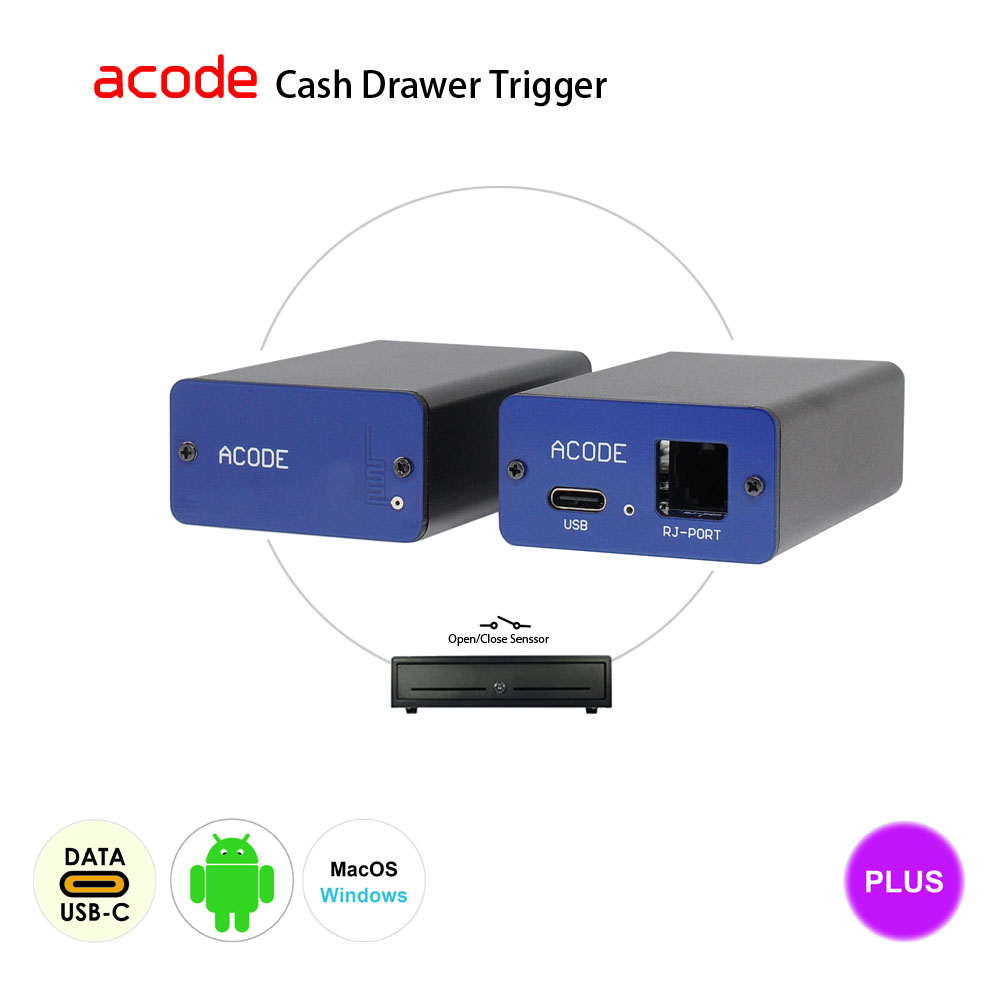

AT10U3-00102-03002 Non-Dedicated USB Open Cash Drawer Adapter Detect Open Close Status

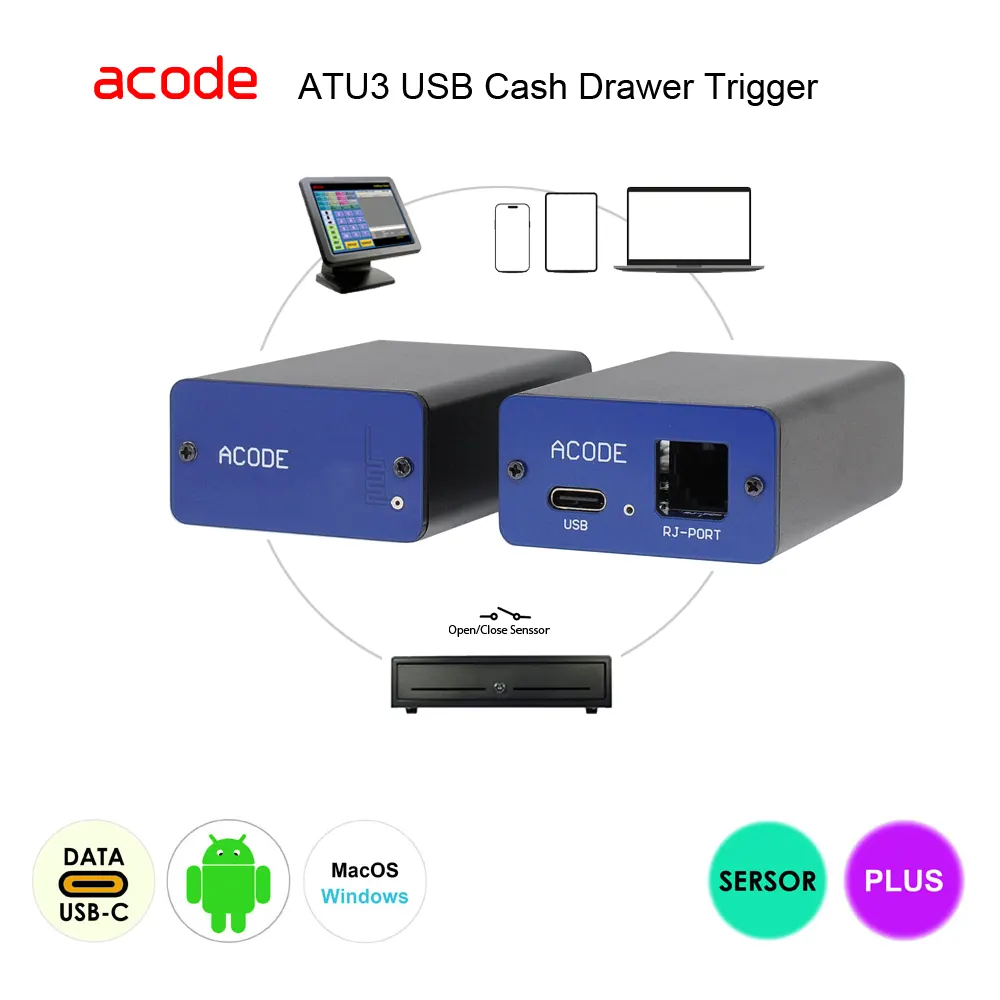

AT10U3-00102-03002 Non-Dedicated USB Open Cash Drawer Adapter Detect Open Close Status - Image 2

AT10U3-00102-03002 Non-Dedicated USB Open Cash Drawer Adapter Detect Open Close Status

USB Open Cash Drawer Adapter, open with Preset Code and Detect Open/Close Status

AT10U3-00102-03002 Non-Dedicated USB Cash Drawer Trigger

open cash drawer with preset open code and detect whether the cash drawer is opened or closed

  • Non-Dedicated Serial Communication : USB open cash drawer with preset open code
  • What You Need and How It Works :
    • 1) use RJ12 printer driven cash drawer (NO normal open) that has built-in sensor to detect open/close status and ;
      2) use the AT10U3-00102-03002 USB Cash Drawer Trigger
    • when your POS app sends a preset open code to COM port, the cash drawer will open : cash drawer responds only to preset open code, if an incorrect code is sent, it remains closed
    • check whether a cash drawer is open or closed using the status/return code (eg. `00`) : when the cash drawer opens, the AT10U3-00102-03002 USB Trigger reads this data and sends a status code/return codes (like `00`) back to POS app, continuous `00` signals indicate cash drawer is open, `00` signal stops when cash drawer is closed
  • Developer-Friendly : No extra SDK or utility is needed
  • USB Type-C Interface : Virtual Serial COM Port, connect directly to Windows PC, POS Terminal and Android mobile device
  • OS Supported : Windows, Android
  • communication and charging vis USB Type C
  • LED lights showing power and operating status
  • Cable : USB Type A to Type C (default)

Technical Requirement :

  • AT10U3-00102-03002 USB Cash Drawer Trigger requires IT knowledge and technical/system development.
  • Your POS application should include functionality to check the cash drawer’s open/close status return code in real time.

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Payment : prices in USD, accept payment via PayPal
  • DO NOT ship to P.O. Box
Enquiry
Categories: ,

Video

FAQs

USB Series Cash Drawer Specifications :

  1. Cash drawer RJ12 6 Pin Plug.
  2.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  3.  Pin 2 & 4 or Pin 4 & 5 is solenoid.
  4.  Pin 3 & 6 cash drawer sensor.
  5.  * Plus series : Cash drawer sensor type : specify normal open.
  6.  * Pro Series : Cash Drawer support sensor normal open or normal close.

 If you have any questions, please contact us.

Bluetooth Series Specifications :

  1.  Cash drawer RJ12 6 Pin Plug.
  2.  Electrical 12~24 Volts DC, < 100 Msec, 1A.
  3.  Pin 2 & 4 or Pin 4 & 5 is solenoid.
  4.  Pin 3 & 6 cash drawer sensor.
  5.  Cash drawer sensor type : normal open or normal close. (Need to specify model).

If you have any questions, please contact us enquiry.hk@acode.com

Cash Drawer Sensor -

Normally Open (NO) : The circuit is open when the drawer is closed. It closes when the drawer opens, allowing current to flow — so the sensor sends a signal only when the drawer is open.

Normally Closed (NC) : The circuit is closed when the drawer is closed, meaning current flows by default. When the drawer opens, the circuit breaks —so the sensor stops sending a signal when the drawer is open.
So in NC, the signal is present when the drawer is closed, and disappears when it opens. That loss of signal is what the system detects.

Cash Drawer Sensor Pin :
Normal open : Cash drawer close the sensor Pin 3 and Pin 6 is open.
Normal close : Cash drawer close the sensor Pin 3 and Pin 6 is close.

Date Sheet

Model # AT10U3 00102-03002 open cash drawer via USB
Interface USB Type-C Virtual (Serial) COM port
Power USB Type-C Direct Port Power DC5V, <500mA (no power supply needed)
For Cash Drawer Type 12~24 Volts, <1.5A, RJ12 (support RJ11), default to fit cash drawer PIN 2,4 and PIN 4,5
Supported OS Android 5.0 or above, Windows 11, 10, 8.1, 7, MacOS
Cable USB Type A to Type C x1
OR
USB Type C to Type C x1
Casing aluminium
Colour black
Weight 60g net without cable
Dimension 70x45x24mm DWH
Specifications are subject to change without prior notice.
