AT10M3 (86313-40000) Mobile Bluetooth Cash Drawer Trigger & AcodeTrigger App to Open Cash Drawer without EPOS System
AT10M3 Battery Cash Drawer Trigger with Bluetooth and AcodeTrigger Apps

AT10M3 (86313-40000) Mobile Bluetooth Cash Drawer Trigger & AcodeTrigger App to Open Cash Drawer without EPOS System

AT10M3 (86313-40000) UnLock Smart Bluetooth Cash Drawer Trigger

  • AT10M3 Mobile Bluetooth Cash Drawer Trigger + Android App to Open Cash Drawer
  • Cordless operation: No printer, wiring, or EPOS software required.
  • Battery powered: Uses a rechargeable 14500 Li‑ion battery, supporting 2,000–3,000 cycles per charge.
  • Dual power options: Recharge via USB Type‑C while still in use.
  • Plug‑and‑play simplicity: No drivers or installation needed.
  • Secure access: Password protection via the AcodeTrigger Android app.
  • Mobility focus: Stable performance even when idle—unlike power banks that shut down.
  • Easy Buy: Standard 14500 Li‑ion batteries are widely available, making replacements simple to source
  • Easy Replace: Quick swap design—no special tools required, so users can replace the battery themselves in seconds

Remarks :
The AcodeTrigger App : NO data shared with third parties, NO data collected.
This App doesn’t collect or share any user data.
This App doesn’t collect any user data.

Enquiry
Categories: , ,

Description

AT10M3 (86313-40000) Battery Operated Push Button Cash Drawer Trigger

Maximum Mobility. Zero Cables. Total Control.

Designed for mobile and outdoor retail environments, the AT10M3 offers a cordless, rechargeable solution for opening cash drawers with add on Bluetooth device — no printer, no wiring, no software required.

** Gain a better understanding by watching our step-by-step demo video.

Additional technical details are available AT10M3 in the FAQ section

Data Sheet

Model # AT10M3 (86313-40000)
Function :  Battery operated opens cash drawer via Bluetooth with Unlock Smart App
Interface :
  • Type‑C Power Socket
  • Cash Drawer RJ12 Socket
Bluetooth Module :  SPP 3.0, Pairing mode
Operating Apps :  AcodeTigger-UnlockSmart
Trigger Mode :  Unlock Smart Activation
Power Input :  USB Type‑C, DC5V <500mA

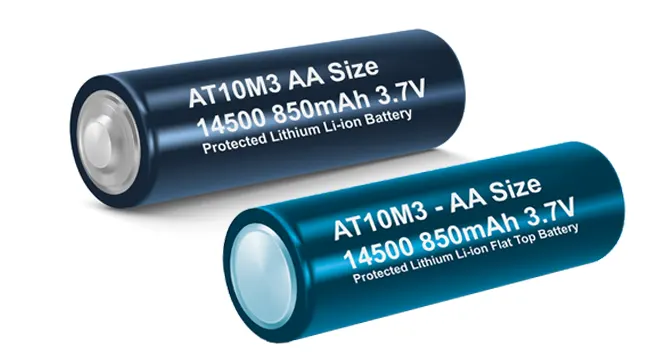

Battery (Option) : 🔋 Battery Specification :

  • Power Source: Rechargeable lithium‑ion
  • Battery Requirement: 14500 / AA Li‑ion
  • Capacity (Rated): 850 mAh or higher
  • Type Options: Flat‑top (recommended) or button‑top
  • Nominal Voltage: 3.6–3.7 V
  • Full Charge Voltage: 4.2 V
  • Protection Circuit: Required (electronically protected)
  • Rechargeable: Required
OS Support :
  •  Android 8.0+
  • Please verify your operating system version to ensure Bluetooth compatibility.
For Cash Drawer Type :
  • 12–24 V DC, < 1.5 A
  • Support RJ11 or RJ12 Plug.
  • Default wiring: Pin 2 or Pin 5 with common Pin 4.
Cable :
  • USB Type-A to Type-C x 1
Casing :  Aluminium
Colour :  Black
Weight :  110 g (net, without battery and cable) ±15%
Dimensions :  95 × 45× 27 mm (D × W × H)
Remarks :
  • The AcodeTrigger App : NO data shared with third parties, NO data collected.
  • The AcodeTrigger App doesn’t collect or share any user data.
  • The AcodeTrigger App doesn’t collect any user data.Specifications are subject to change without prior notice.
 * Specifications are subject to change without prior notice.

Non-Dedicated

Support RJ12 connector
