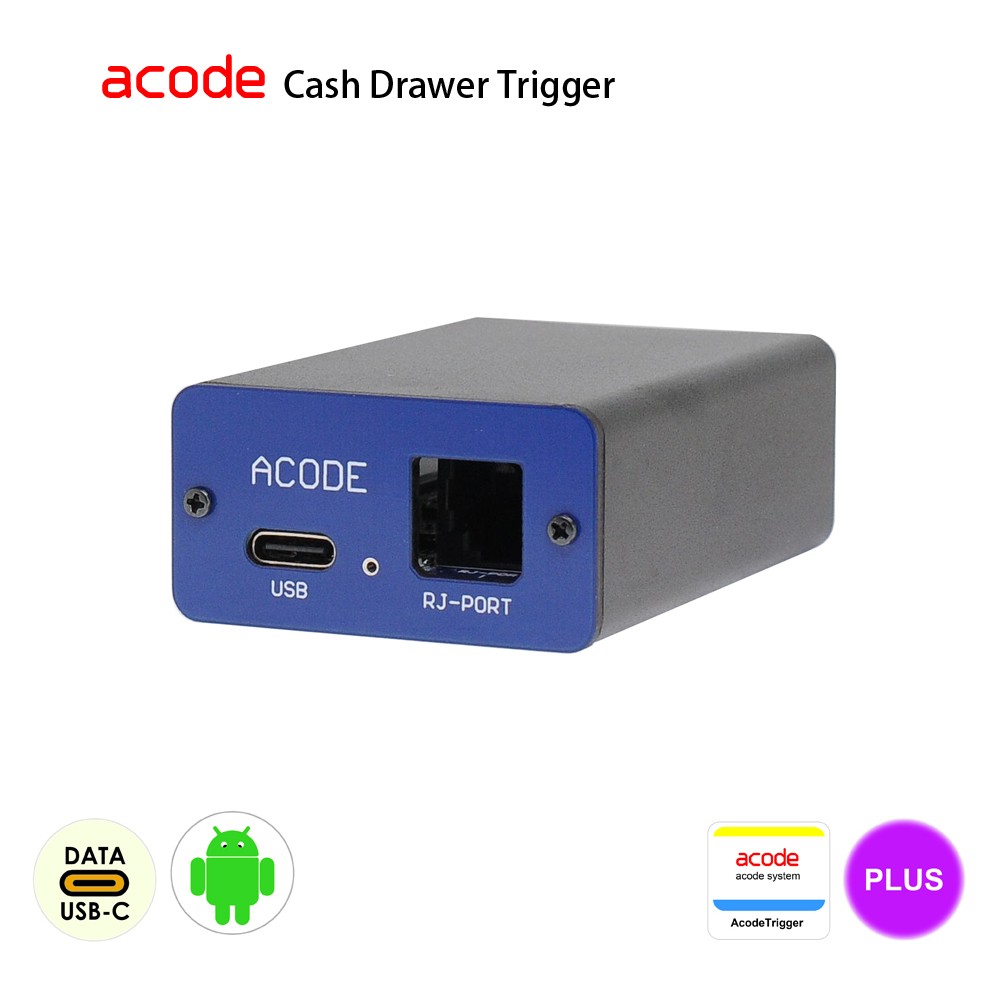

AT10U3 (86102-03100) USB Cash Drawer Trigger & AcodeTrigger App to Open Cash Drawer without EPOS System (Copy)

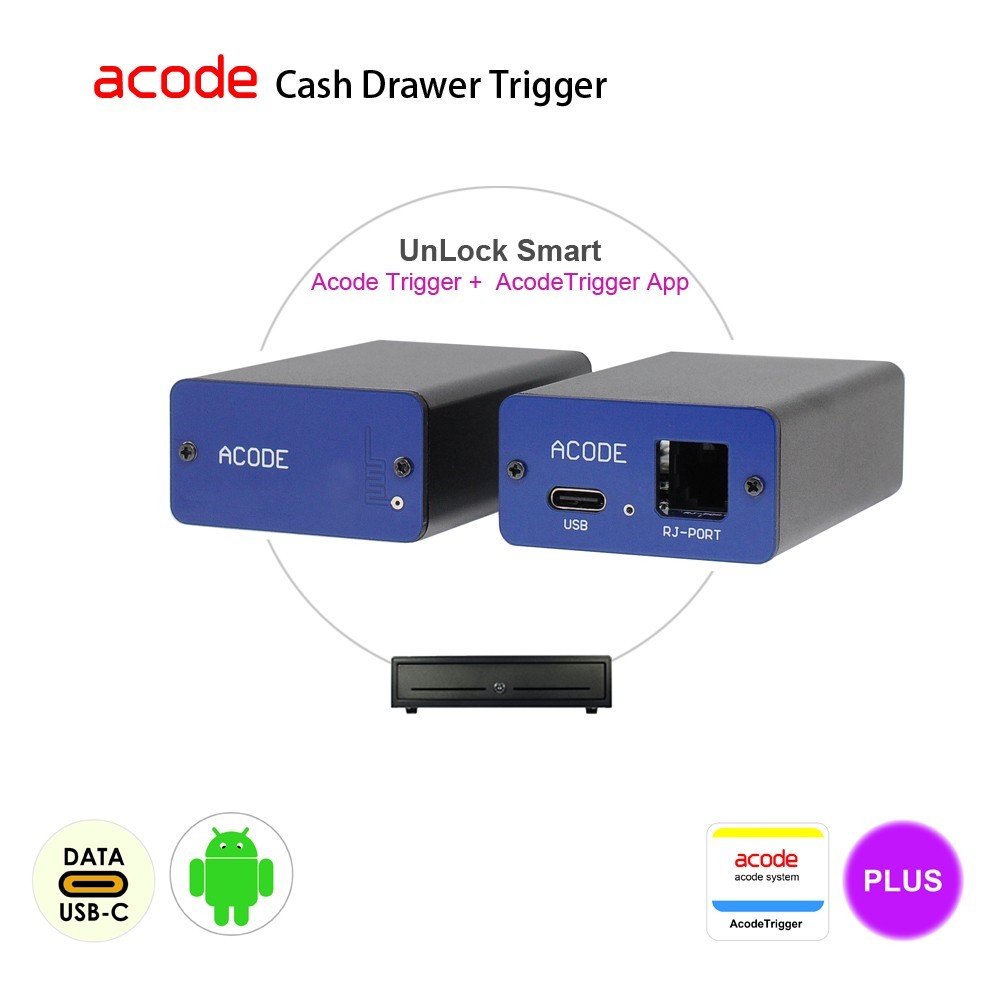

AT10U3 (86102-03100) USB Cash Drawer Trigger & AcodeTrigger App to Open Cash Drawer without EPOS System (Copy) - Image 2
open cash drawer from mobile phone using UnLock Smart Bluetooth Cash Drawer Trigger and AcodeTrigger App Android
cash drawer open on cash payment with UnLock-Smart-Bluetooth-Cash-Drawer-Trigger-and-AcodeTrigger-App-Android

AT10U3 (86102-03100) USB Cash Drawer Trigger & AcodeTrigger App to Open Cash Drawer without EPOS System (Copy)

USB + Android App to Open Cash Drawer

AT10U3 (86102-03100) UnLock Smart USB Cash Drawer Trigger

USB Cash Drawer Trigger + AcodeTrigger App (Android) open cash drawer without EPOS System

  • Smart Cash Drawer Trigger with USB-C Connectivity
  • Metal case size :  65 x 45 x 23.5mm (DWH)
  • use the Unlock Smart USB Cash Drawer Trigger and the AcodeTrigger App (Android) to trigger open cash drawer
  • open cash drawer without having an EPOS system, can operate independently, as a standalone device
  • with the AcodeTrigger App (Android), user needs to input password to open cash drawer
  • open cash drawer via USB connection
  • support Android, USB

Remarks :
The AcodeTrigger App : doesn’t collect or share any user data.

Enquiry
Categories: , , ,

Video

AT10B3-816A Bluetooth Cash Drawer Trigger + AcodeTrigger App (Android)

  • Bluetooth Cash Drawer Trigger + AcodeTrigger App (Android) to control cash drawer opening
  • input password to open cash drawer
  • support Android
  • open cash drawer without EPOS system, operate as an independent unit
  • easy to setup and user friendly

FAQs

Date Sheet

Model # AT10B3-816A
open cash drawer via bluetooth & the AcodeTrigger App (Android)
Interface
Pairing Mode		 bluetooth serial
SPP pairing
Power USB Type-C, DC5V, <500mA
For Cash Drawer Type 12~24 Volts, <1.5A,
RJ12 (support RJ11),
default to fit cash drawer PIN 2,4 and PIN 4,5
Supported OS Android 8.0 above
Cable USB Type A to Type C (default) or USB Type C to Type C
Casing aluminium
Colour black
Weight 60g net without cable
Dimension 70x45x24mm DWH
Remarks :
The AcodeTrigger App : NO data shared with third parties, NO data collected.
The AcodeTrigger App doesn’t collect or share any user data.
The AcodeTrigger App doesn’t collect any user data.Specifications are subject to change without prior notice.
