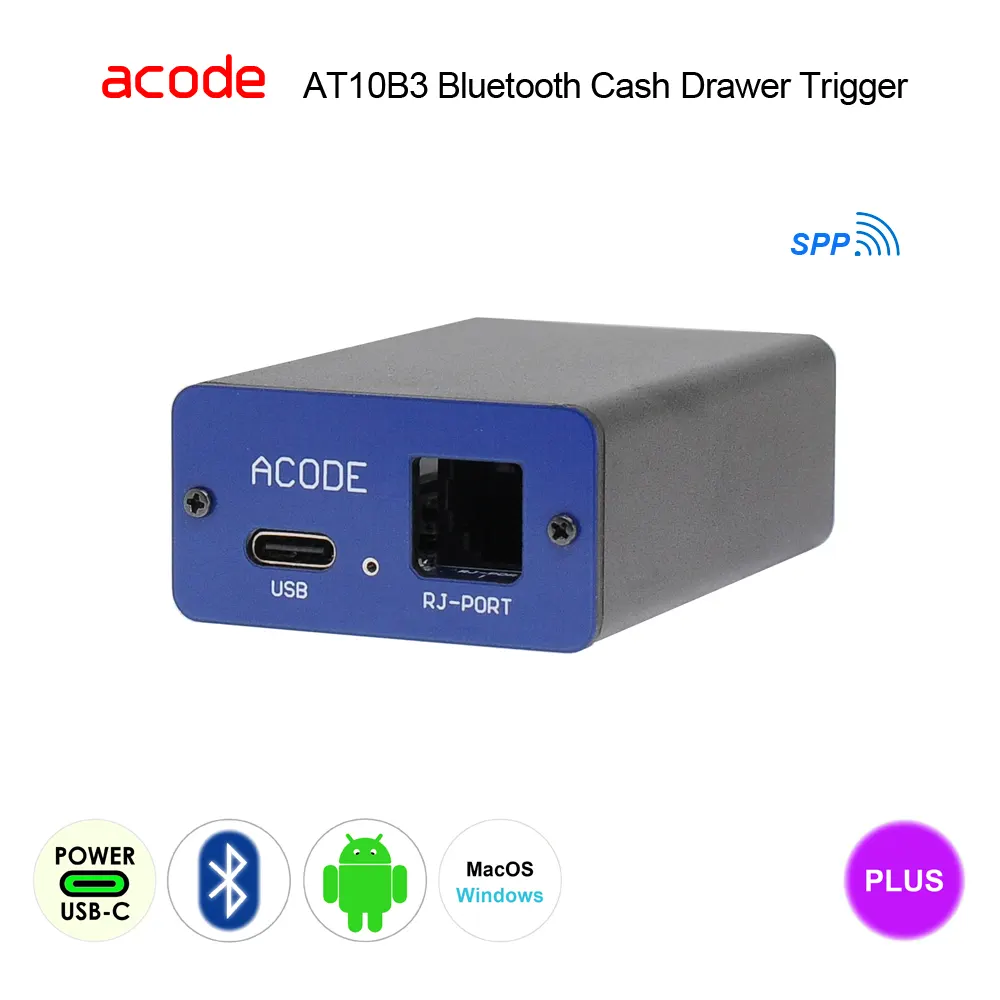

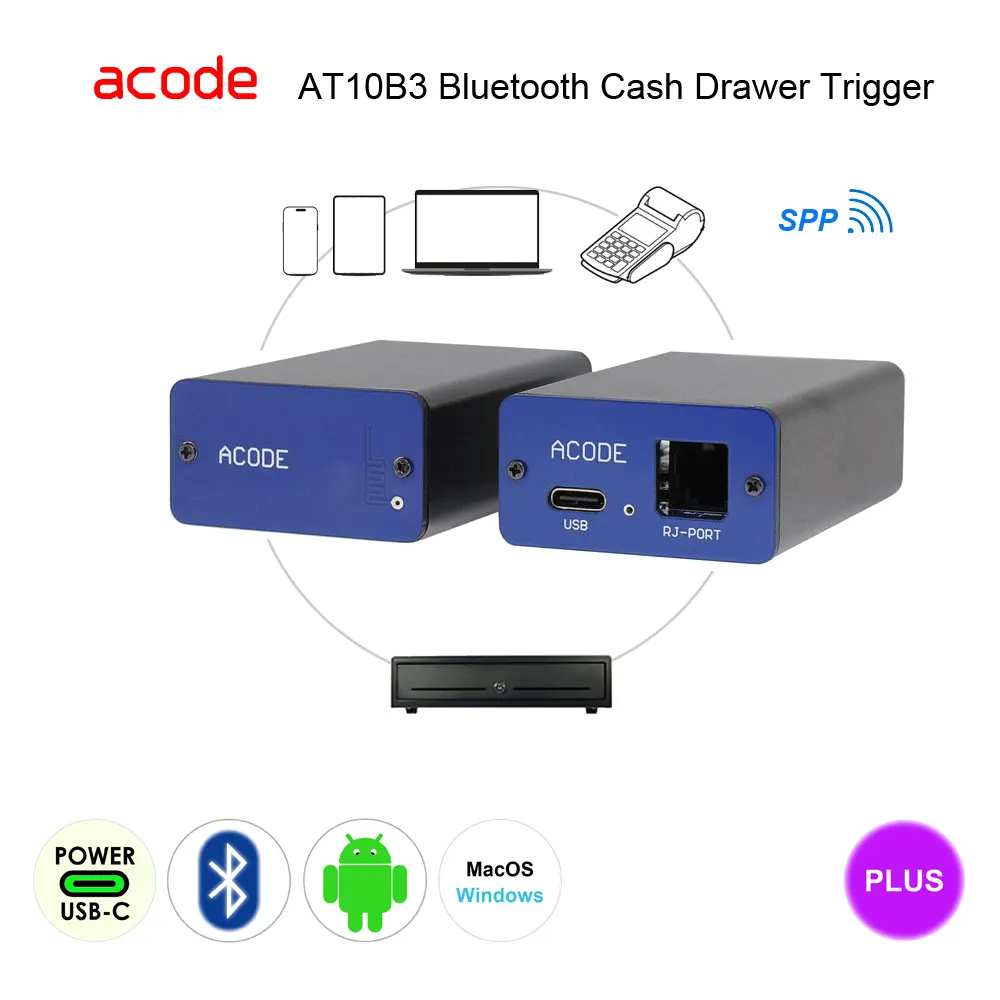

AT10B3 Bluetooth Cash Drawer Trigger with Plus
AT10B3 Bluetooth Cash Drawer Trigger with Plus

AT10B3‑00201‑03000 BLUETOOTH Cash Drawer Trigger — Code‑Triggered

AT10B3 Bluetooth Cash Drawer Trigger — Code‑triggered

AT10B3‑00201‑03000 Bluetooth Cash Drawer Trigger enables secure, code‑triggered wireless opening without a POS printer. Compact, easy install, ensuring reliable POS control across Android, Windows, macOS.

  • Cash drawer opens via Bluetooth, secure code‑trigger access
  • Interface Type‑C provides DC 5V input power
  • Secure Bluetooth SPP3.0 COM trigger; PIN‑protected access
  • Code‑trigger ensures more secure drawer access
  • Supports 12–24V RJ12 cash drawers with sensor normal‑close detection.
  • OS support: Windows, macOS, Android 5+ compatibility
  • Developer‑ready Bluetooth solutions with no extra SDK required
  • Durable compact aluminium case, 70 × 45 × 25 mm

# Deployment and configuration require technical knowledge and system development skills.



Additional :

  • International delivery ships worldwide by Air or Surface.
  • Pricing: All catalog product prices shown in USD.
  • Restriction: Shipments excluded for P.O. Box addresses.



Enquiry
SKU: AT10B3‑00201‑03000-873 Categories: ,

Date Sheet

AT10B3 Bluetooth Cash Drawer Trigger :

Model #  AT10B3 00201-03000 Bluetooth Cash Drawer Trigger Specifications
Function :  Dedicated trigger with drawer‑open detection and code return
Interface :
  • USB Type‑C Socket — Power Input.
  • RJ12 Socket — Direct Cash Drawer Plug.
Bluetooth Module :  SPP 3.0, Pairing mode
Trigger Mode :  Code Triggered
Power Input :  USB Type‑C, DC5V <500mA
Power Adapter Requirements :
  Fixed DC 5V, 500–1000 mA (single port power adapter recommended)
OS Support :
  •  Android 8.0+, Windows 11, 10, 7, macOS
  • Please verify your operating system version to ensure Bluetooth compatibility.
Cash Drawer Requirements :
  • Cash Drawer Type – POS printer‑driven cash drawer.
  • Solenoid – 12–24 V DC, < 1.5 A.
  • Cash drawer plug interface – RJ12 compatible.
  • Default Wiring – Pin 2 or Pin 5 with common Pin 4.
Cable :  USB Type-A to Type-C  x1
Casing :  Aluminium
Colour :  Black
Weight :  60 g (net, without cable) ±15%
Dimensions :  70 × 45 × 24 mm (D × W × H)
   * Specifications are subject to change without prior notice.
